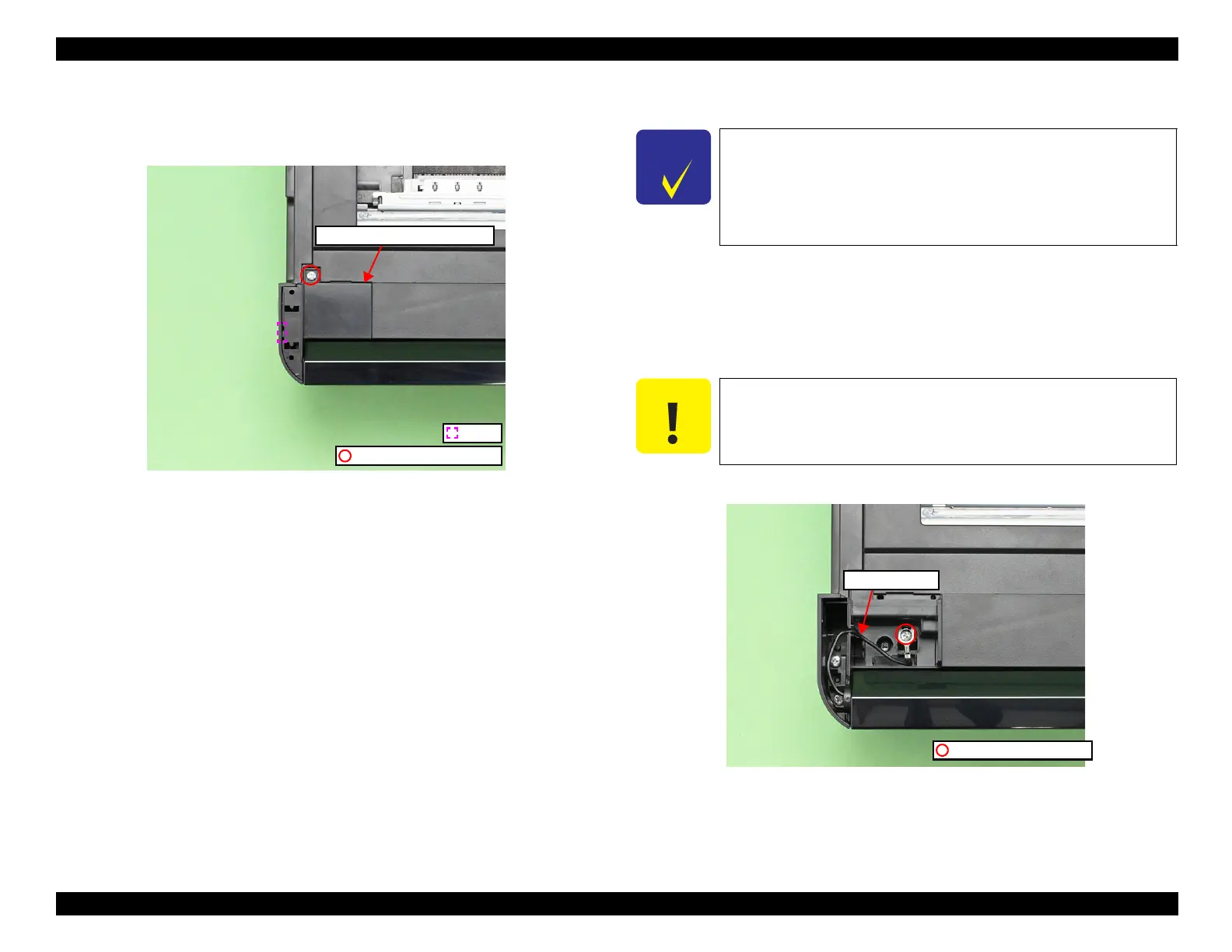

2. Remove the screw (x1) that secures the Decoration Plate Left Upper Sub and
release the hook (x1) of the Decoration Plate Left Upper Sub, and then
remove the Decoration Plate Left Upper Sub.
Figure 9-40. Removing the Decoration Plate Left Upper (2)
9.4.2.17 Upper Housing
 Parts/Components need to be removed in advance:
Scanner Unit/Decoration Plate Left Upper/Decoration Plate Left Upper Sub/Paper
Guide Top Assy
 Removal procedure
1. Remove the screw (x1) and release the grounding wire.
Figure 9-41. Releasing the Grounding Wire
C.B.P. 3x10 (6±1Kgfcm)
Decoration Plate Left Upper Sub
Hook
C H E C K
P O I N T
This section describes the disassembly/reassembly procedures of the
Upper Housing for Artisan 730/PX730WD/TX730WD.
The disassembly/reassembly procedures for Artisan 837/
PX830FWD differ from those for Artisan 730/PX730WD/
TX730WD, therefore, see
"9.4.2.2 Upper Housing" (p.294) for the
procedures.
C A U T I O N
The grounding wire is attached to the frame with a screw. Be careful
not to deform the Frame when removing the screw.
C.B.S. 3x6 (8±1Kgfcm)
Grounding wire
