Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
Artisan 837/730/PX830FWD/PX730WD/TX730WD Disassembly/assembly 310
Confidential
2. Open the Panel Unit. (See Fig. 9-42.)
3. Release the hook (x1) on the rear of the Panel Unit, and remove the Panel
Rear Cover.

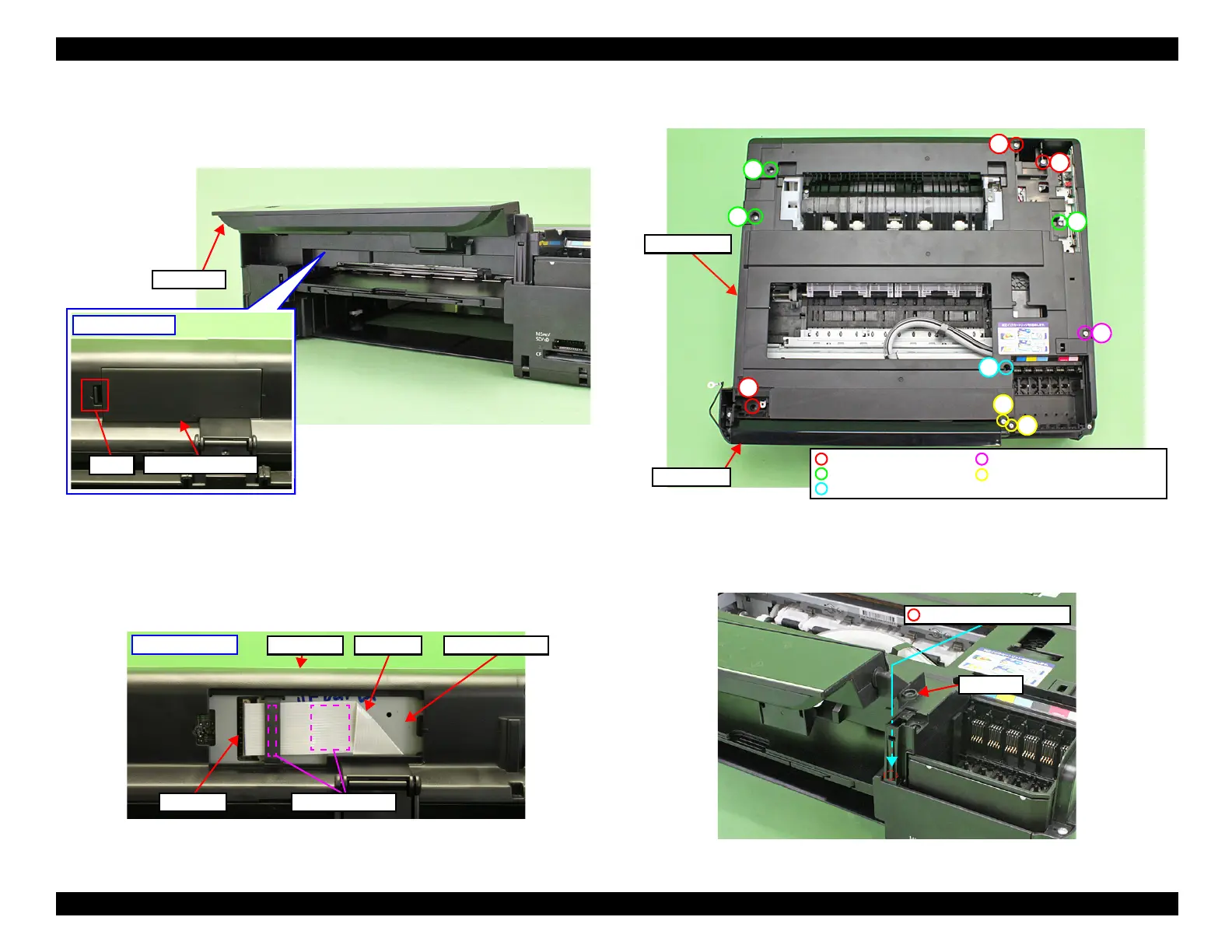

Figure 9-42. Removing the Upper Housing (1)
4. Peel off the Panel FFC and the ferrite core that are secured with the double
sided tape, and disconnect the Panel FFC from the connector on the Panel
Unit.
5. Pull out the ferrite core from the Panel FFC.
Figure 9-43. Removing the Upper Housing (2)
6. Remove the screws (x10) that secure the Upper Housing.
Figure 9-44. Removing the Upper Housing (3)
7. Lift the Panel Unit until the screw (x1) under the Right Hinge can be seen, and
remove the screw (x1).
Figure 9-45. Removing the Upper Housing (4)
Panel Unit
Panel Rear Cover
Hook
Rear of Panel Unit
Panel Unit
Connector
Panel FFC
Rear of Panel Unit
Double-sided tape
Panel Shield Plate
1
2
3
4
5
7
8
C.B.S. 3x6 (6±1Kgfcm)
C.B.S. 3x8 (8±1Kgfcm)
C.B.A. 3x6 (6±1Kgfcm)
6
C.B.P. 3x10 (black) (6±1Kgfcm)
Upper Housing
Panel Unit
9
10
C.B.P. 3x10 (6±1Kgfcm)
Right Hinge
C.B.P. 3x12 (6+1Kgfcm)
