4.3.1.6 Rear Right Housing
 Parts/Components need to be removed in advance:
Scanner Unit/Upper Left Housing/Paper Guide Top Assy/Upper Housing/Hinge
 Removal procedure
1. Remove the screw (x1) that secures the Rear Right Housing.

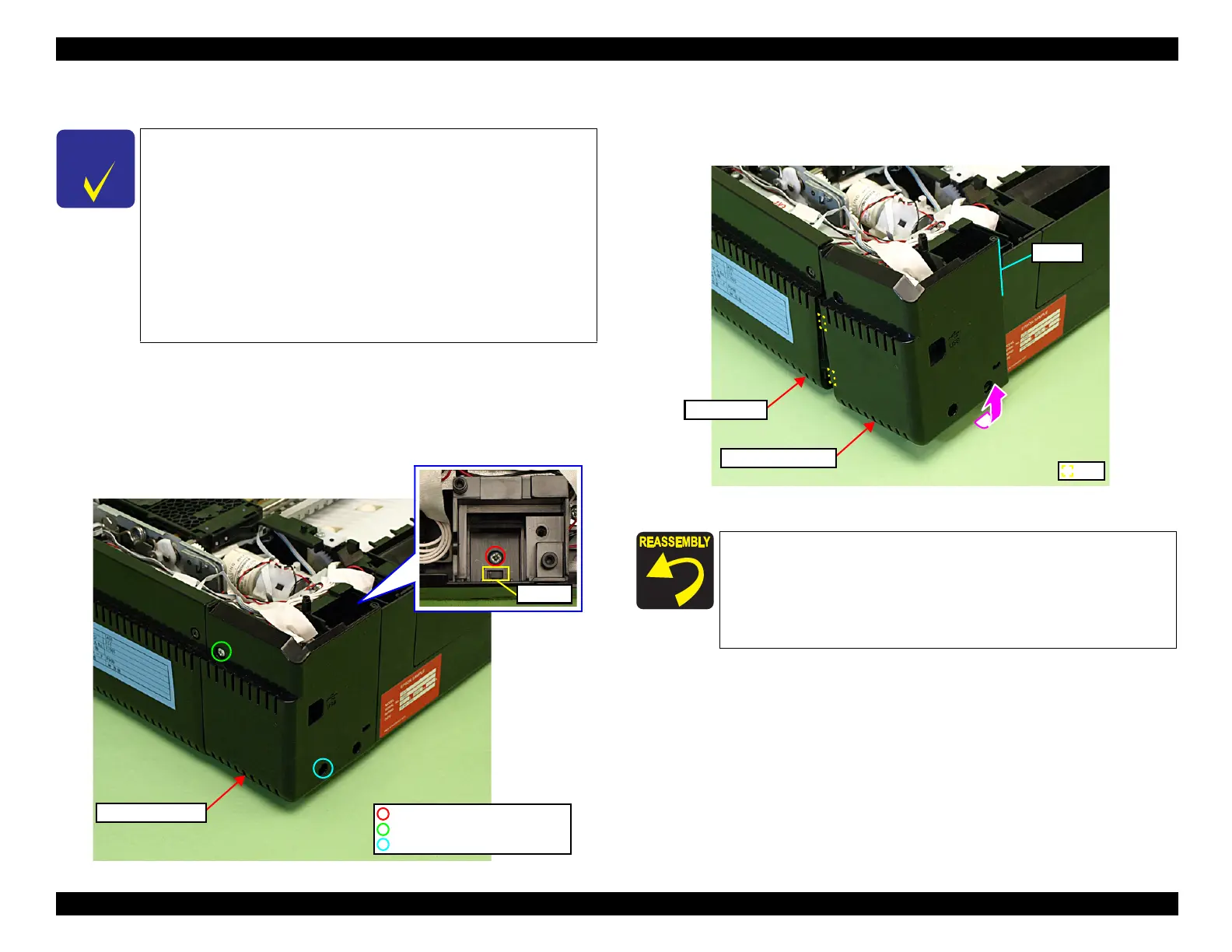

Figure 4-172. Removing the Rear Right Housing (1)
2. Release the ribs (x2) on the right side, and also release the hook A in Fig.
4-172, then remove the Rear Right Housing by lifting it in the direction of the
arrow in Fig. 4-173.
Figure 4-173. Removing the Rear Right Housing (2)
C H E C K
P O I N T
The disassembly/reassembly procedures for Artisan 810/835/837/
730/PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/
PX730WD/TX730WD differ from those for Artisan 710/725/
PX710W/TX710W/PX720WD/TX720WD.
See below for the procedures.
 Artisan 810/835/PX810FW/TX810FW/PX820FWD/TX820FWD:
4.2.3.10 Rear Right FAX Housing (p.120)
 Artisan 837/PX830FWD:
9.4.2.6 Rear Right FAX Housing (p.299)
 Artisan 730/PX730WD/TX730WD:
9.4.2.20 Rear Right Housing (p.314)
C.B.A. 3x10 (black) (6±1Kgfcm)
C.B.S. 3x6 (black) (8±1Kgfcm)
C.B.P. 3x10 (6±1Kgfcm)
Hook A
Rear Right Housing
 When installing the Rear Right Housing, insert the ribs (x2) of
the Rear Right Housing to inside of the Right Housing. (See
Fig.
4-173.)
 When installing the Rear Right Housing, align the point A of
the Rear Right Housing with the inside of the Base Frame. (See
Fig. 4-173.)
Rib
Rear Right Housing
Right Housing
Point A
