Epson Artisan 730 - ADF LD Frame Assy; ADF Right Cover;Adf Rear Cover

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 170
Confidential
4.2.7.3 ADF LD Frame Assy
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/ADF Cover Assy
 Removal procedure
1. Remove the screws (x4) that secure the ADF LD Frame Assy, and remove the
ADF LD Frame Assy from the ADF Cover Assy.

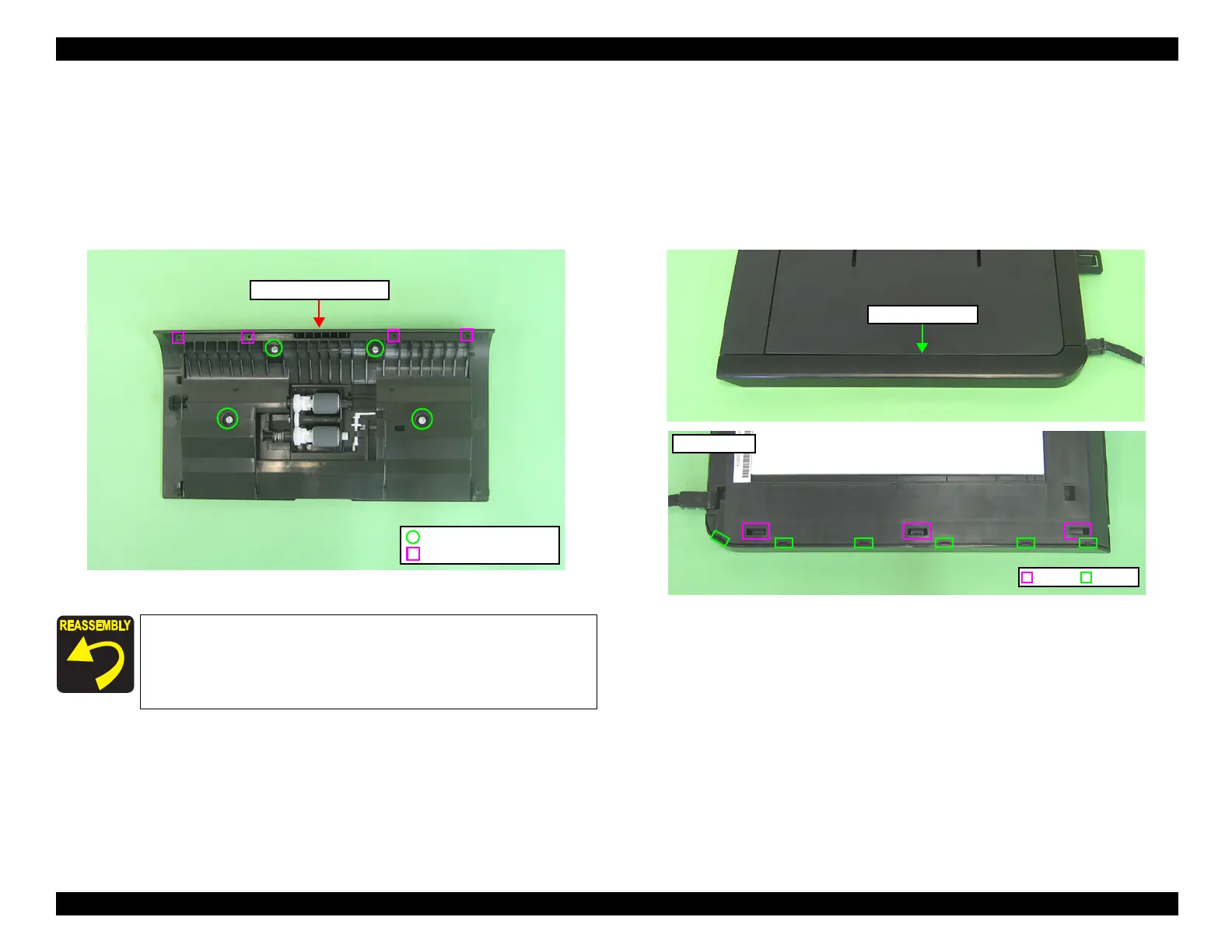

Figure 4-133. Removing the ADF LD Frame Assy
4.2.7.4 ADF Right Cover/ADF Rear Cover
 Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/ADF Cover Assy
 Removal procedure
1. Release the hooks (x3) that secure the ADF Right Cover, and remove the
ADF Right Cover from the ADF Base Assy.
Figure 4-134. Removing the ADF Right Cover
When installing the ADF LD Frame Assy, align the dowels (x4) of
the ADF Cover Assy with the positioning holes (x4) of the ADF LD
Frame Assy as shown in
Fig. 4-133.
ADF LD Frame Assy
C.B.P. 3x8 (6±1kgfcm)
Positioning hole & dowel
Hook
Bottom side
Rib
ADF Right Cover
