Epson Artisan 730 - Cassette Unit;Ej Cover Assy

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 122
Confidential

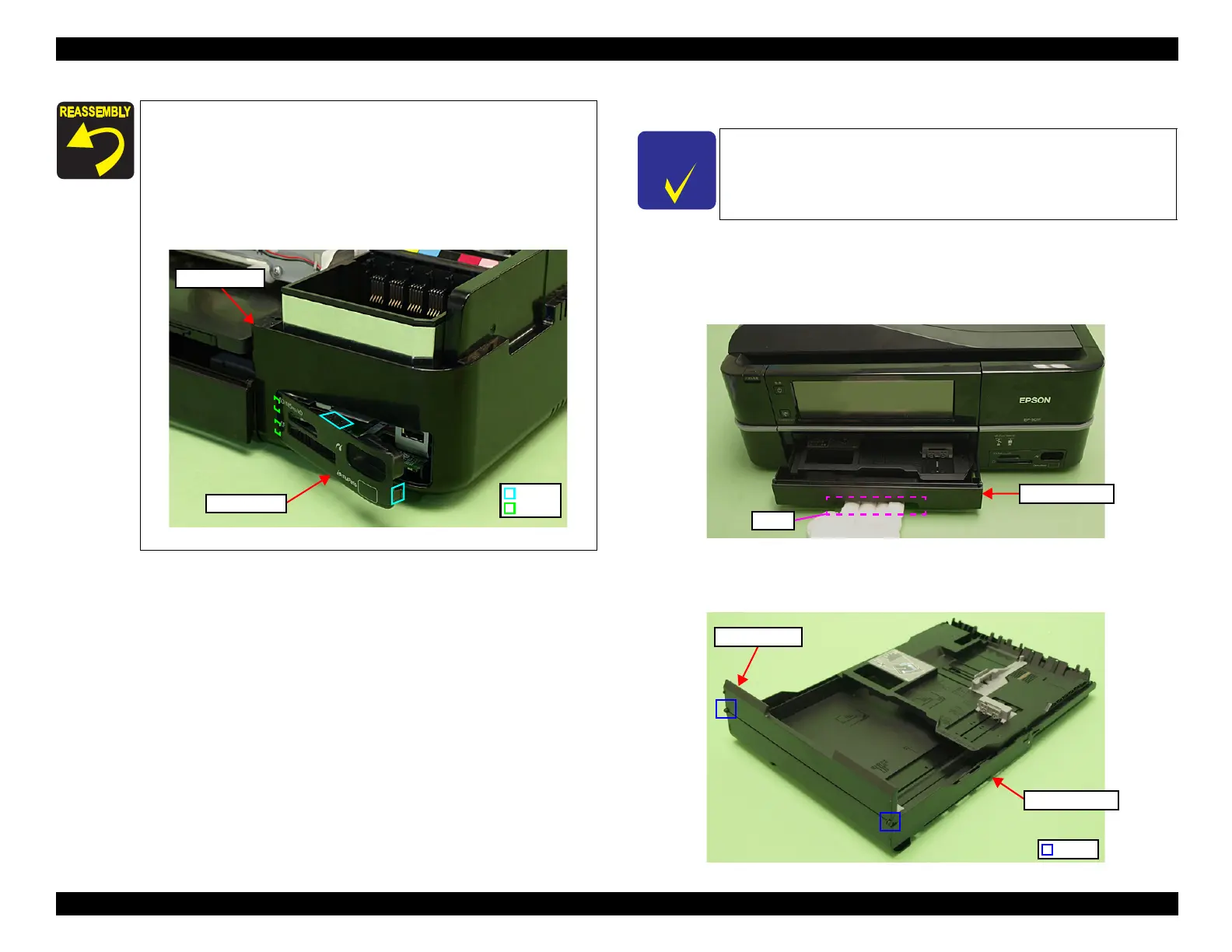

4.2.3.12 Cassette Unit/EJ Cover Assy
 Parts/Components need to be removed in advance:
None
 Removal procedure
1. Hold and pull the grip under the Cassette Unit, and remove the Cassette Unit.
Figure 4-33. Removing the Cassette Unit
2. Release the dowels (x2) that secure the EJ Cover Assy, and remove the EJ
Cover Assy from the Cassette Unit.
Figure 4-34. Removing the EJ Cover Assy
 Align and insert the dowel of the Base Frame to the positioning
hole of the Right Housing. (See
Fig. 4-29.)
 Attach the Card Cover after installing the Right Housing to the
Printer.
 When attaching the Card Cover, insert the ribs (x2) of the Card
Cover to the inside of the Right Housing, and secure it with the
hooks (x2).
Figure 4-32. Attaching the Card Cover
Hook
Rib
Right Housing
Card Cover
C H E C K
P O I N T
The Cassette Unit for Artisan 837/730/PX830FWD/PX730WD/
TX730WD does not have the EJ Cover Assy. (See
Fig. 4-34.)
Cassette Unit
Gripe
Dowel
EJ Cover Assy
Cassette Unit
