5.2.6 MAC Address Setting
 Overview
This printer have a network function and stores there MAC address (Media Access
Control Address) in the EEPROM on the Network Board. The Network Board supplied
as an ASP does not come with the MAC address written on it, therefore, you are
required to set the MAC address to the new Network Board after replacement. The
following explains the procedure.
 Preparation
When replacing the Network Board, make sure to note down the MAC address written
on a label on the Upper
M/B Shield Plate. If the address is not readable due to
contamination or any other cause, attach a new MAC address label (part code:
1489231) and note down the new address. See
"4.2.4.2 Main Board / Grounding Plate
M/B (p126) " for description about the label position.
 Setting flowchart

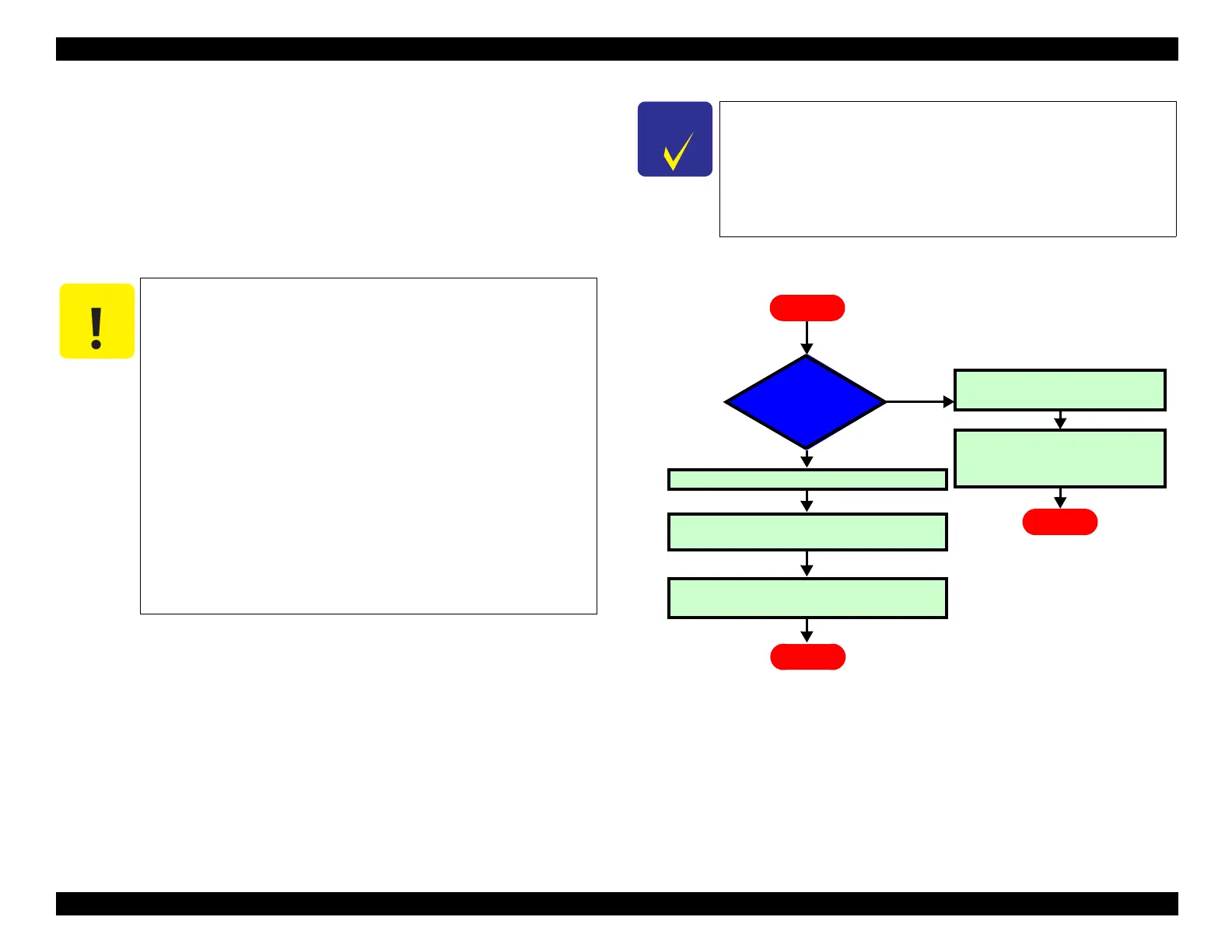

Figure 5-8. MAC Address Setting Flowchart
C A U T I O N
 To avoid a conflict of MAC address on a network, make sure to
correctly follow the MAC address setting flowchart given on
the right.
 The MAC Address is written correctly, The IP Address will be
initialized also.
 The user should be notified of the change of MAC address
because of the following reasons.
″ If the user has set the printer’s MAC address on a router, the
repaired printer with a new MAC address cannot be
connected to the network.
″ The default printer name on a network consists of “EPSON”
and the last six digits of the MAC address. Therefore, the
printer name becomes different from the previous one.
 For Artisan 835/725/PX820FWD/TX820FWD/PX720WD/
TX720WD, the MAC address label is not supplied as an ASP
because the servicing which needs its replacement has almost
never occurred.
C H E C K
P O I N T
You are required to enter the last six digits of the MAC address
(xx:yy:zz) written on the MAC Address Label to the adjustment
program. First six digits are automatically selected from two kinds
by the adjustment program depending on the last six digits.
 MAC address example:
00:00:48:xx:yy:zz or 00:26:AB:xx:yy:zz
(“xx, yy, zz” represents a value unique to each printer)
Yes
No
Replace the Network Board with a new one.
Enter the new MAC address using the adjustment
program.
END
Replace the Network Board with a
new one.
END
Is the MAC address on
the label readable?
No
Attach a new MAC address label on the Upper M/
B Shield Plate.
START
Enter the MAC address written on
the label using the adjustment
program.

Epson Artisan 730 Specifications

General

Maximum Print Resolution	5760 x 1440 dpi
Maximum Photo Print Speed	4" x 6" photo in as fast as 10 seconds
ISO Print Speed Black	9.6 ISO ppm
ISO Print Speed Color	9.1 ISO ppm
Two-sided ISO Print Speed Black	4.9 ISO ppm
Two-sided ISO Print Speed Color	4.7 ISO ppm
Minimum Ink Droplet Size	1.5 picoliters
Maximum Copy Speed Black	39 cpm
Maximum Copy Speed Color	40 cpm
Maximum Copy Size	8.5" x 11"
Optical Resolution	2400 dpi
Maximum Resolution	9600 x 9600 dpi
Scanner Bit Depth	48-bit color in / 24-bit output
Wireless Connectivity	802.11 b/g/n
Ethernet	10/100
USB	Hi-Speed USB
PC-free Paper Support	Plain (8.5" x 11"), Photo (4" x 6", 5" x 7", 8" x 10", 8.5" x 11", 16:9 wide)
Input Paper Capacity	120 sheets plain paper, 10 envelopes
Output Paper Capacity	30 sheets
Operating Temperature	50 ° to 95 °F (10 ° to 35 °C)
Storage Temperature	-4 ° to 104 °F (-20 ° to 40 °C)
Operating Humidity	20 – 80% (no condensation)
Storage Humidity	5 – 85% (no condensation)
Rated Voltage	120 VAC
Rated Frequency	50 – 60 Hz
Rated Current	0.8 Amp
Power Consumption	Approx. 23 W ISO 24712, Approx. 4.5 W (Sleep Mode), Approx. 0.3 W (Power Off Mode)

Weight and Dimensions

Dimensions (W x D x H) Printing	17.6" x 25.8" x 5.9"
Dimensions (W x D x H) Storage	17.6" x 18.0" x 5.9"
Weight	21.2 lb
