Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD
Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 175
Confidential
2. Remove the screws (x2) that secure the ADF Frame Unit.
3. Release the dowel (x1) of the ADF Base and the dowels (x2) of the
ADF Frame Unit, then remove the ADF Frame Unit from the ADF Base Assy.

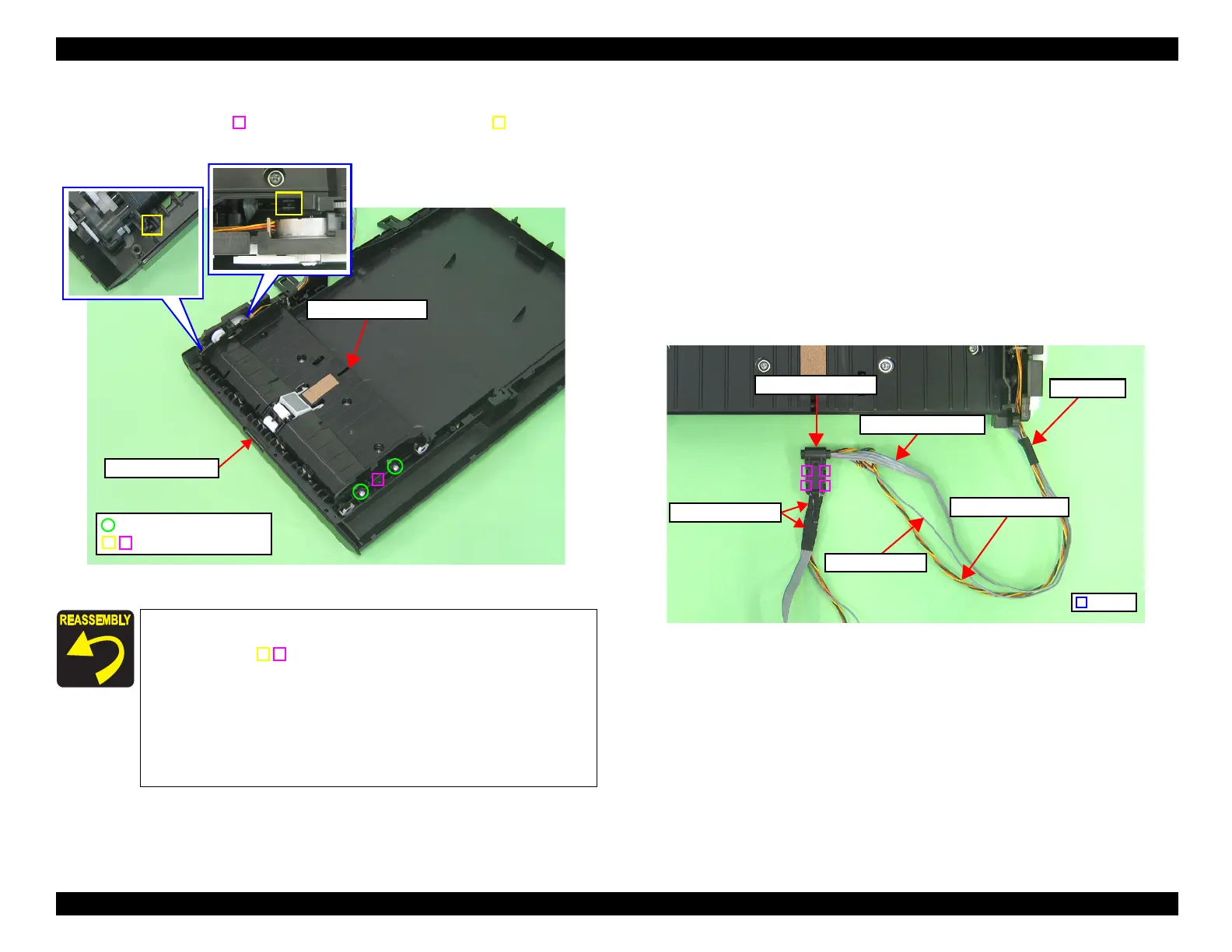

Figure 4-144. Removing the ADF Frame Unit (2)
4.2.7.9 ADF Motor Unit
Parts/Components need to be removed in advance:
ADF Unit/Scanner Unit/ADF Cover Assy/ADF Right Cover/ADF Rear Cover/
ADF Cover Stacker/ADF Document Support Cover/ADF Front Cover/ADF
Document Support Assy/ADF Frame Unit
Removal procedure
1. Peel off the acetate tape (x3), and separate the ADF Motor cable, the ADF
Sensor cable and the grounding wire.
2. Release the hooks (x4) of the ADF Cable Cover and open the ADF Cable
Cover, then release the ADF Motor cable, the ADF Sensor cable and the
grounding wire.
Figure 4-145. Releasing the cables
When installing the ADF Frame Unit, align the positioning
holes (x3) of the ADF Frame Unit and ADF Base Assy with the
dowels (x3)
as shown in Fig. 4-144.
Route the ADF Motor cable, ADF Sensor cable, and the
grounding wire as follows, referring to
Fig. 4-143.
1. Route them through the grooves (x3) of the ADF Base Assy.
2. Attach the ADF Cable Cover to the ADF Base Assy.
3. Secure the cables to the ADF Base Assy with acetate tape
(x2).
ADF Frame Unit
C.B.P. 3x8 (6±1kgfcm)
ADF Base Assy
Positioning hole & dowel
ADF Cable Cover
Hook
Acetate tapes (x2)
Acetate tape
ADF Sensor cable
Grounding wire
ADF Motor cable
To Next Page
