Epson Artisan 730 Service Manual

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
Artisan 837/730/PX830FWD/PX730WD/TX730WD Connector Summary 327
Confidential
9.6 Connector Summary
This section shows the connections between the main components of Artisan 837/730/PX830FWD/PX730WD/TX730WD.

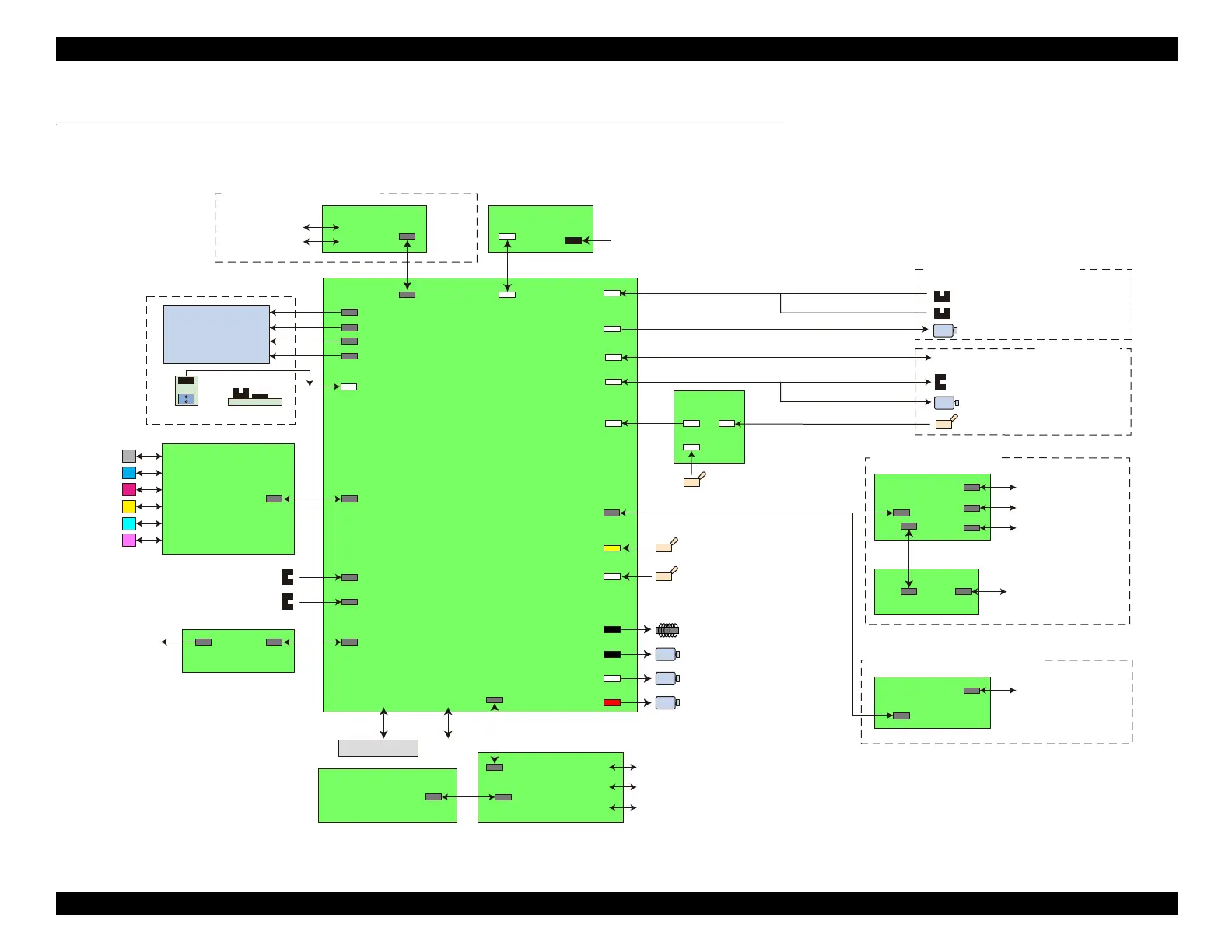

Figure 9-73. Block Diagram (Artisan 837/730/PX830FWD/PX730WD/TX730WD)
CA
73
PSB
Printhead
PW Sensor
CR Encoder
PF Encoder
B
M
Y
AC in
CN2
CN501
CN1
CN2
CN3
CN4
CN6
CN5
CN7
CN1
CN1
CN1
CN2
CSIC
CR Contact Module
CB18 SUB
Ink System
LM
C
LC
CN8
PE Sensor
CN9
CN30
PF Motor
CN22
CR Motor
CN21
Decompression Motor
CN24
Photo Tray Sensor
CN12
Duplex Unit Sensor
CN13
CN31
CN1
CA52 STG
CN7
CN8
CN2
CN3
Wireless LAN Module
J2
C
B20
PNL
CN33
CN1
CN3
Touch panel
CN2
3.5 inch LCD Module
CN5
SUB-C Board
C
B20
PNL-B
SUB-B Board
CIS Module
CN41
Scanner Encoder
Scanner Motor
CN49
CN25
CN51
DOC Sensor
ADF Motor
CN35
S
c
an
ner O
pen Sensor
CN1
CN3
CN2CN1
0
Only Artisan 837/PX830FWD
PE Sensor
Artisan 837/PX830FWD
Artisan 730/TX730WD/ PX730WD
CB18 PNL
CN1
CN2
2.5 inch LCD Module
CN4 CN5
CN4
EJ Cover Open plunger
CN19
Only Artisan 837/PX830FWD
CN1
CA29 IF-B
LINE Port
CN20
CN21
EXT Port
CN36
Document Cover Open Sensor
Relay Board
Scanner Unit
ADF Unit
Operation Panel Unit
Operation Panel Unit
Carriage Assy
Wired LAN
USB 2.0
Compact Flash
MS/SD/xD/MMC
USB Host 2.0
Main Board
*
Note* : The model number of the main boards is as follows.
CB20 MAIN: Artisan 837/PX830FWD
CB18 MAIN: Artisan 730/PX730WD/TX730WD

Epson Artisan 730 Specifications

General

Maximum Print Resolution	5760 x 1440 dpi
Maximum Photo Print Speed	4" x 6" photo in as fast as 10 seconds
ISO Print Speed Black	9.6 ISO ppm
ISO Print Speed Color	9.1 ISO ppm
Two-sided ISO Print Speed Black	4.9 ISO ppm
Two-sided ISO Print Speed Color	4.7 ISO ppm
Minimum Ink Droplet Size	1.5 picoliters
Maximum Copy Speed Black	39 cpm
Maximum Copy Speed Color	40 cpm
Maximum Copy Size	8.5" x 11"
Optical Resolution	2400 dpi
Maximum Resolution	9600 x 9600 dpi
Scanner Bit Depth	48-bit color in / 24-bit output
Wireless Connectivity	802.11 b/g/n
Ethernet	10/100
USB	Hi-Speed USB
PC-free Paper Support	Plain (8.5" x 11"), Photo (4" x 6", 5" x 7", 8" x 10", 8.5" x 11", 16:9 wide)
Input Paper Capacity	120 sheets plain paper, 10 envelopes
Output Paper Capacity	30 sheets
Operating Temperature	50 ° to 95 °F (10 ° to 35 °C)
Storage Temperature	-4 ° to 104 °F (-20 ° to 40 °C)
Operating Humidity	20 – 80% (no condensation)
Storage Humidity	5 – 85% (no condensation)
Rated Voltage	120 VAC
Rated Frequency	50 – 60 Hz
Rated Current	0.8 Amp
Power Consumption	Approx. 23 W ISO 24712, Approx. 4.5 W (Sleep Mode), Approx. 0.3 W (Power Off Mode)

Weight and Dimensions

Dimensions (W x D x H) Printing	17.6" x 25.8" x 5.9"
Dimensions (W x D x H) Storage	17.6" x 18.0" x 5.9"
Weight	21.2 lb
