Epson Artisan 730 - Pick-Up Roller

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 155
Confidential
4.2.5.10 Pick-up Roller
 Parts/Components need to be removed in advance:
Cassette Unit
 Removal procedure

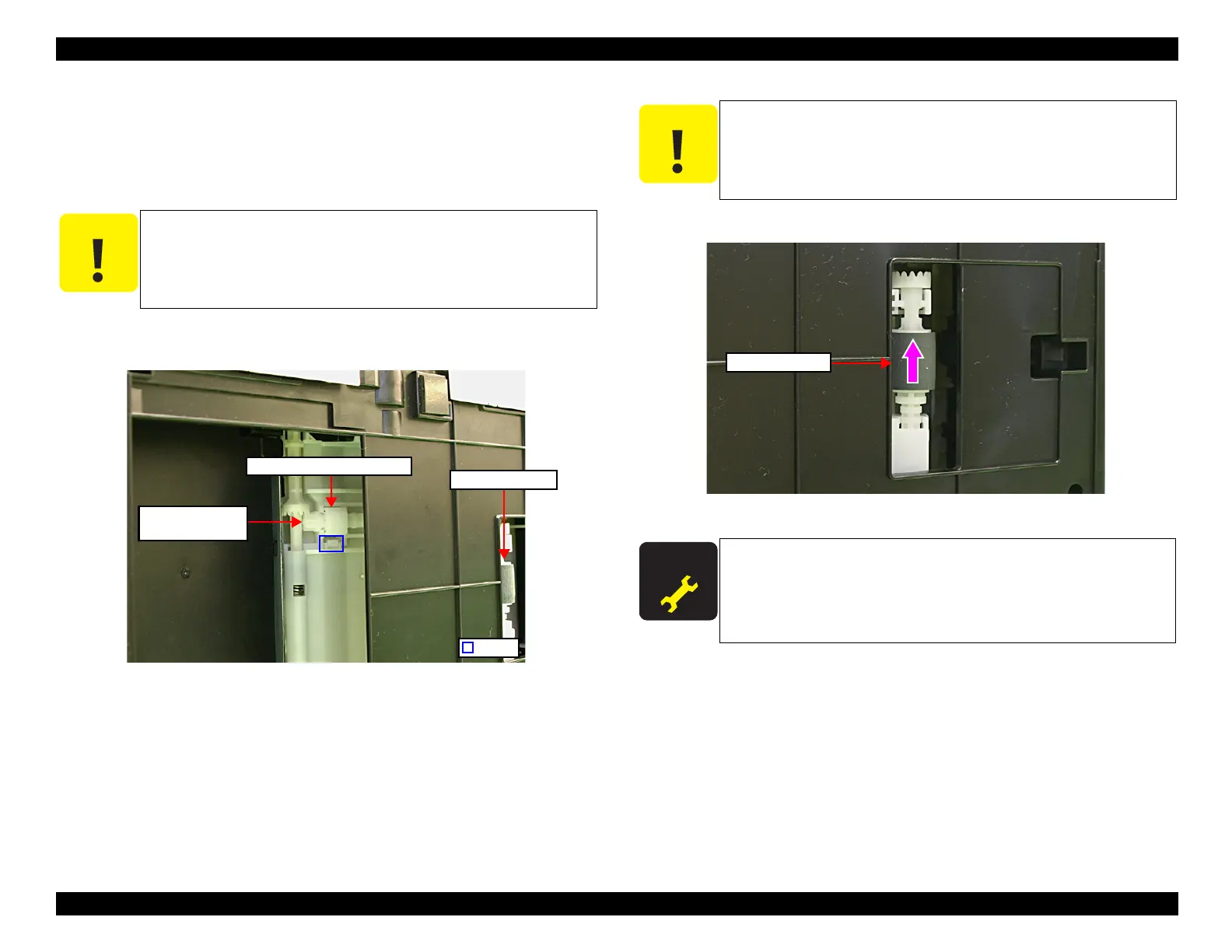

1. Release the hook (x1), and remove the Pick-up Roller Shaft Bush and Pick-up
Roller Transmission Shaft.
Figure 4-102. Removing the Pick-up Roller (1)
2. Slide the Pick-up Roller in the direction of the arrow, and remove it.
Figure 4-103. Removing the Pick-up Roller (2)
C A U T I O N
So as to make description easier, the printer in the photographs is
placed vertically in the following steps. Be careful about ink spilling
if the printer is tilted in practical operation.
Hook
Pick-up Roller
Transmission Shaft
Pick-up Roller Shaft Bush
Pick-up Roller
C A U T I O N
Be careful not to touch or damage the Pick-up Roller so can
adversely affect print quality.
A D J U S T M E N T
R E Q U I R E D
When replacing the Pick-up Roller, make sure to carry out the
specified lubrication. (See
Chapter 6 "MAINTENANCE" .)
Pick-up Roller
