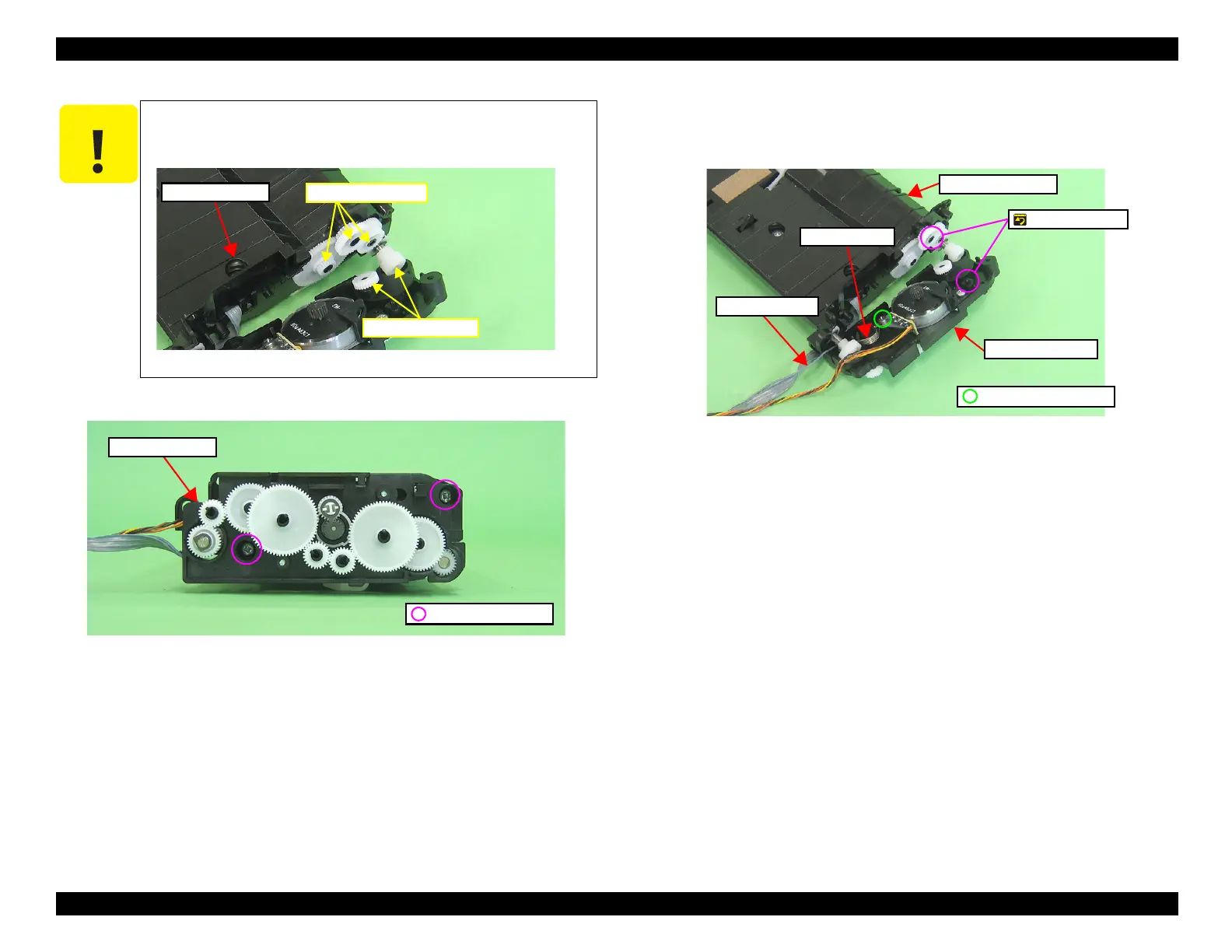

3. Remove the screws (x2) that secure the ADF Motor Unit.
Figure 4-147. Removing the ADF Motor Unit (1)
4. Remove the screw (x1), and remove the torsion spring and the grounding wire
from the ADF Motor Unit, then remove the ADF Motor Unit from the ADF
Frame Unit.
Figure 4-148. Removing the ADF Motor Unit (2)
C A U T I O N
When removing the ADF Motor Unit, be careful not to drop the
gears (x5) of the ADF Frame Unit and ADF Motor Unit shown
below.
Figure 4-146. Handling the ADF Motor Unit
ADF Frame Unit
Do not drop these.
Do not drop these.
ADF Motor Unit
C.B.P. 3x8 (6±1kgfcm)
Torsion spring
Shafts & holes
ADF Frame Unit
ADF Motor Unit
C.B.P. 3x8 (6±1kgfcm)
Grounding wire
