Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD
Revision G
DISASSEMBLY/ASSEMBLY Disassembly Procedures 177
Confidential

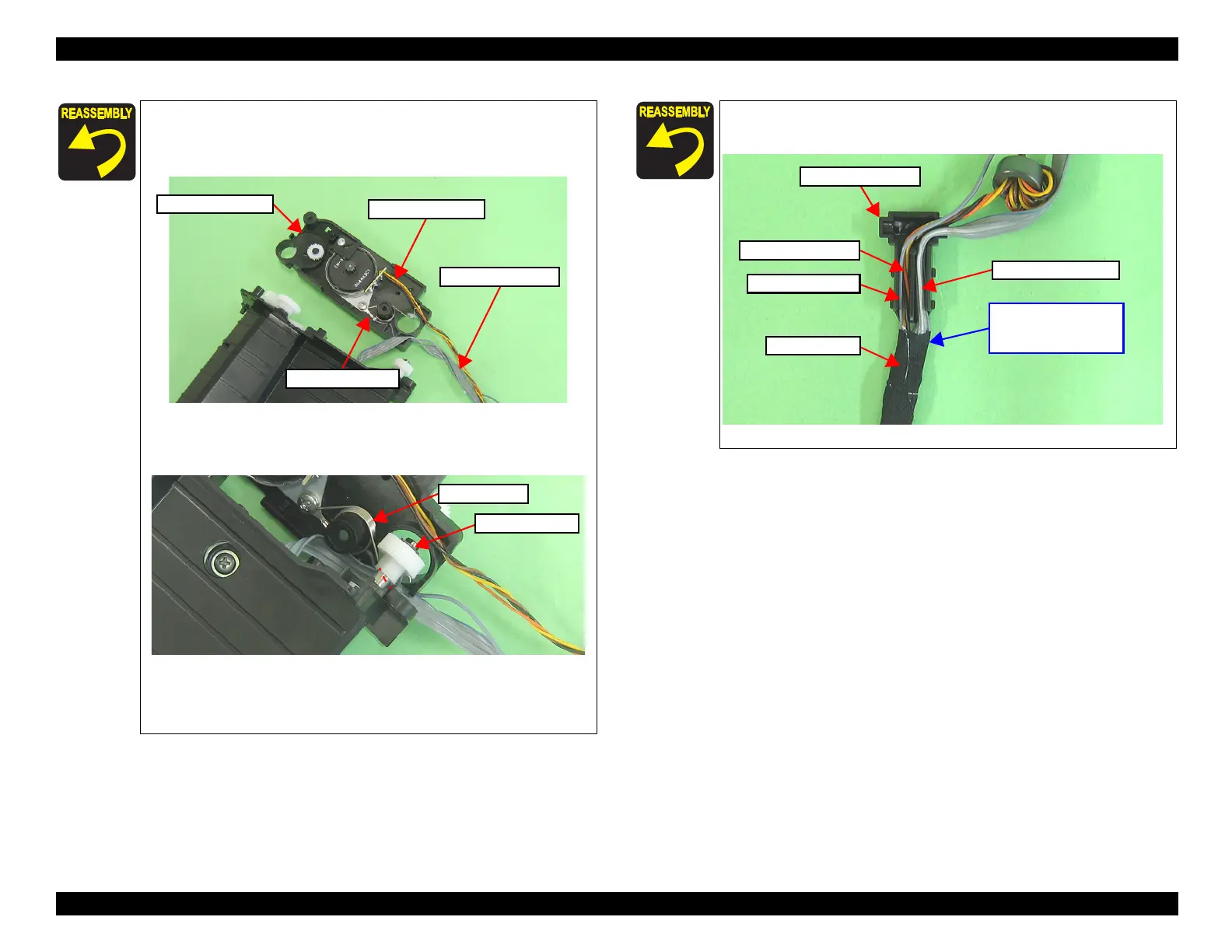

Be careful of the following when installing the ADF Motor Unit.
Route the ADF Motor cable, the ADF Sensor cable and the
grounding wire as shown below.
Figure 4-149. Routing the cables
Attach the torsion spring from under the ADF EJ Roller.
Figure 4-150. Attaching the torsion spring
Insert the shaft of the ADF Motor Unit to the hole of the ADF
Frame Unit as shown in
Fig. 4-148.
ADF Sensor cable
ADF Motor cable
Grounding wire
ADF Motor Unit
ADF EJ Roller
Torsion spring
When placing the cables on the ADF Cable Cover, route them
as shown below.
Figure 4-151. Routing the cables in the ADF Cable Cover
ADF Cable Cover
ADF Sensor cable
ADF Motor cable
Align the edge of the
acetate tape to the edge
of the ADF Cable Cover.
Grounding wire
Acetate tape
To Next Page
