Epson Artisan 730 - Page 198

Epson Artisan 810/835/837/710/725/730/Epson Stylus Photo PX810FW/TX810FW/PX820FWD/TX820FWD/PX830FWD/PX710W/TX710W/PX720WD/TX720WD/PX730WD/TX730WD Revision G
DISASSEMBLY/ASSEMBLY Routing FFC/cables 198
Confidential
MAIN BOARD (TOP SIDE)
(ARTISAN 710/725/730/PX710W/TX710W/PX720WD/TX720WD/
PX730WD/TX730WD)
Following describes routing the cables and FFCs that connect to the Main Board.

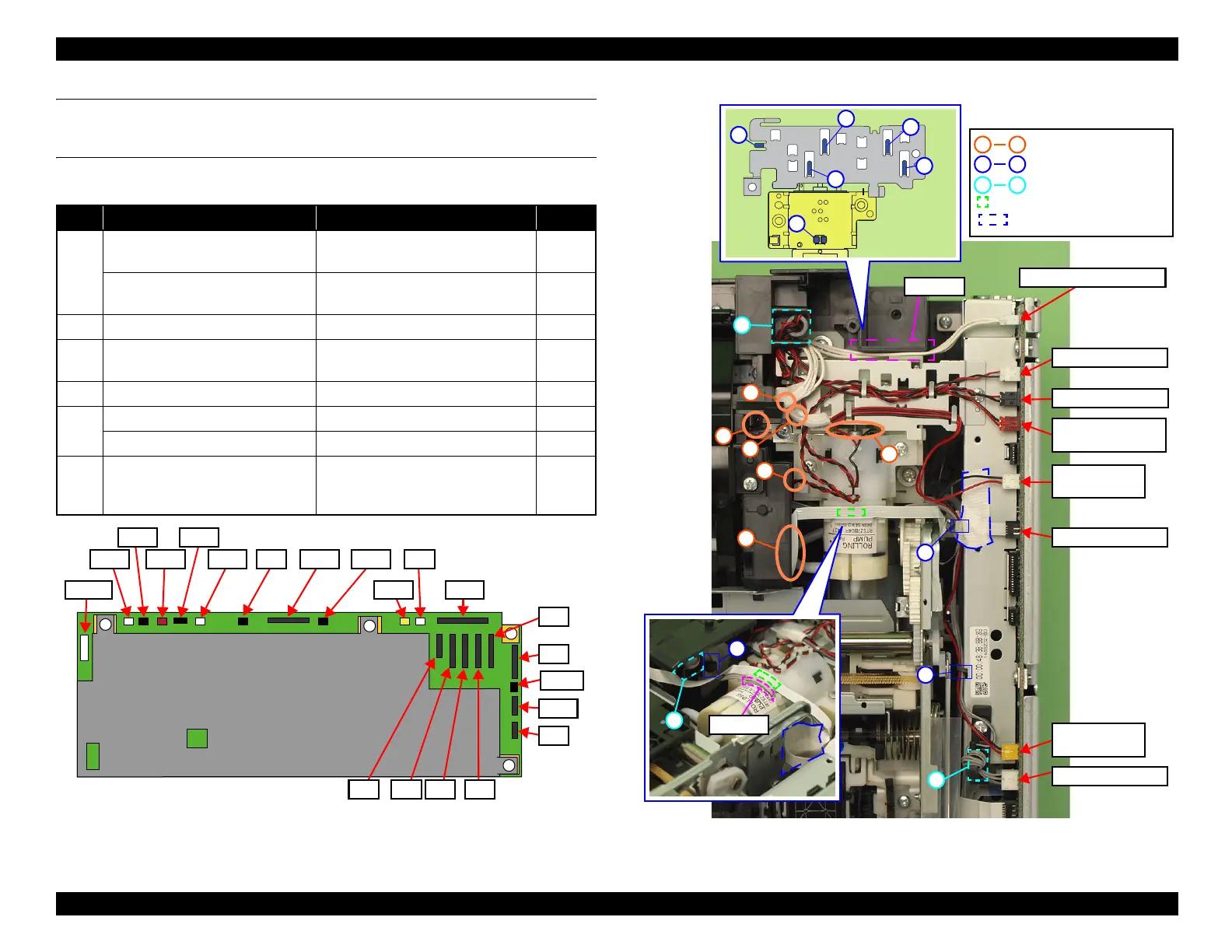

Figure 4-198. Connector positions on the Main Board
(Artisan 710/725/730/PX710W/TX710W/PX720WD/TX720WD/PX730WD/
TX730WD)
Figure 4-199. Main Board
(Artisan 710/725/730/PX710W/TX710W/PX720WD/TX720WD/PX730WD/
TX730WD)
Start Cable Route CN No.
1
PE Sensor Cable
(Ferrite core x2)
a → I → groove A → F → G → b CN9
PF Encoder FFC
Double-sided tape (x1) and
Acetate tape (x2)
CN8
2 PF Motor Cable E → C → B CN22
3
CR Motor Cable
(Ferrite core x1)
H → c → C → B CN21
4 Decompression Pump Motor Cable H → C → B CN24
5
Duplex Unit Sensor Cable D → A CN13
Photo Tray Sensor Cable D → A → F → G CN12
6 Power Supply Unit Cable
Groove B (Insert it between Base
Frame and Decompression Pump
Unit)
CN501
CN501
CN22
CN21
CN24
CN49
CN41 CN10
CN12
CN9
CN6 CN4 CN3 CN2
CN1
CN5
CN31
CN7
CN32
CN13 CN8
Note * : Artisan 730/PX730WD/TX730WD only
CN19*
G
4
5
6
b
c
Groove A
a
I
A
B
C
E
D
H
A I
a c
1 6
Groove B
F
Power Supply Unit Cable
PF Motor Cable
CR Motor Cable
Decompression Pump
Motor Cable
Duplex Unit
Sensor Cable
PE Sensor Cable
Photo Tray
Sensor Cable
Hook
Double-sided tape
Ferrite core position
Routing hole for FFC/cable
Acetate tape
PF Encoder FFC
3
2
1
