MAINTENANCE Overview 245
Confidential

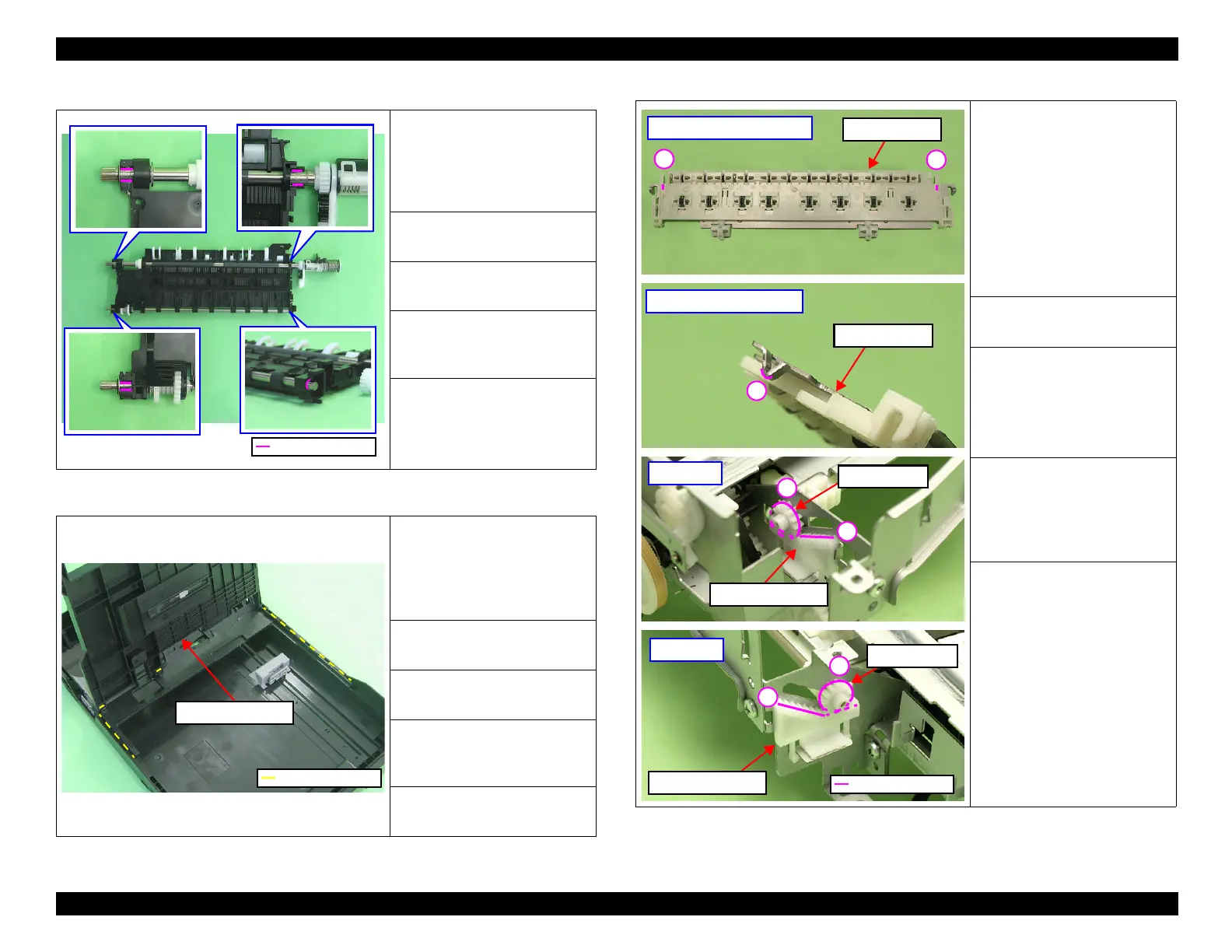

Figure 6-4. Lubrication of the Paper Guide Front Assy
Figure 6-5. Lubrication of the Sub Cassette Slider
Figure 6-6. Lubrication of the EJ Release Assy L/R and EJ Release Racks
<Lubrication Points>
Seven contact points between the
bushings of the Paper Guide Front
Assy and EJ Roller Shaft/PF
Roller Shaft.
<Type>
G-71
<Application Amount>
φ 1 x sufficient quantity
<Application Timing>
Before installing the Paper Guide
Front Assy
<Remarks>
Apply with brush
<Lubrication Points>
1. Two points at the slits of the
Sub Cassette Slider
2. Two points at the bearings of
the Sub Cassette Slider
<Type>
G-74
<Application Amount>
Sufficient quantity
<Application Timing>
Before installing the Cassette
Assy
<Remarks>
Apply with brush
Application Point
Sub Cassette Slider
Application Point
<Lubrication Points>
1. Two contact points between
the
EJ Frame Assy and the
Paper Guide Front Assy
2. Contact point between the left
side of EJ Frame Assy L and
the EJ Release Frame Assy L
3. Spur Gear 8.8 (L/R) (x2)
4. Toothed areas of EJ Release
Rack (L/R) (x2)
<Type>
G-71
<Application Amount>
1. φ 2 x sufficient quantity
2. Sufficient quantity
3. φ 1 x 1 circle
4. φ 1 x toothed areas
<Application Timing>
(1), (2) Before installing the EJ
Frame Assy
(3), (4) Before installing the EJ
Release Frame Assy L/R
<Remarks>
Apply with injector
1
1
Bottom of the EJ Frame Assy
EJ Frame Assy
2
Left of the EJ Frame Assy
EJ Frame Assy
3
4
Left side
EJ Release Rack
Spur Gear 8.8
3
4
Right side
EJ Release Rack
Application Point
Spur Gear 8.8
