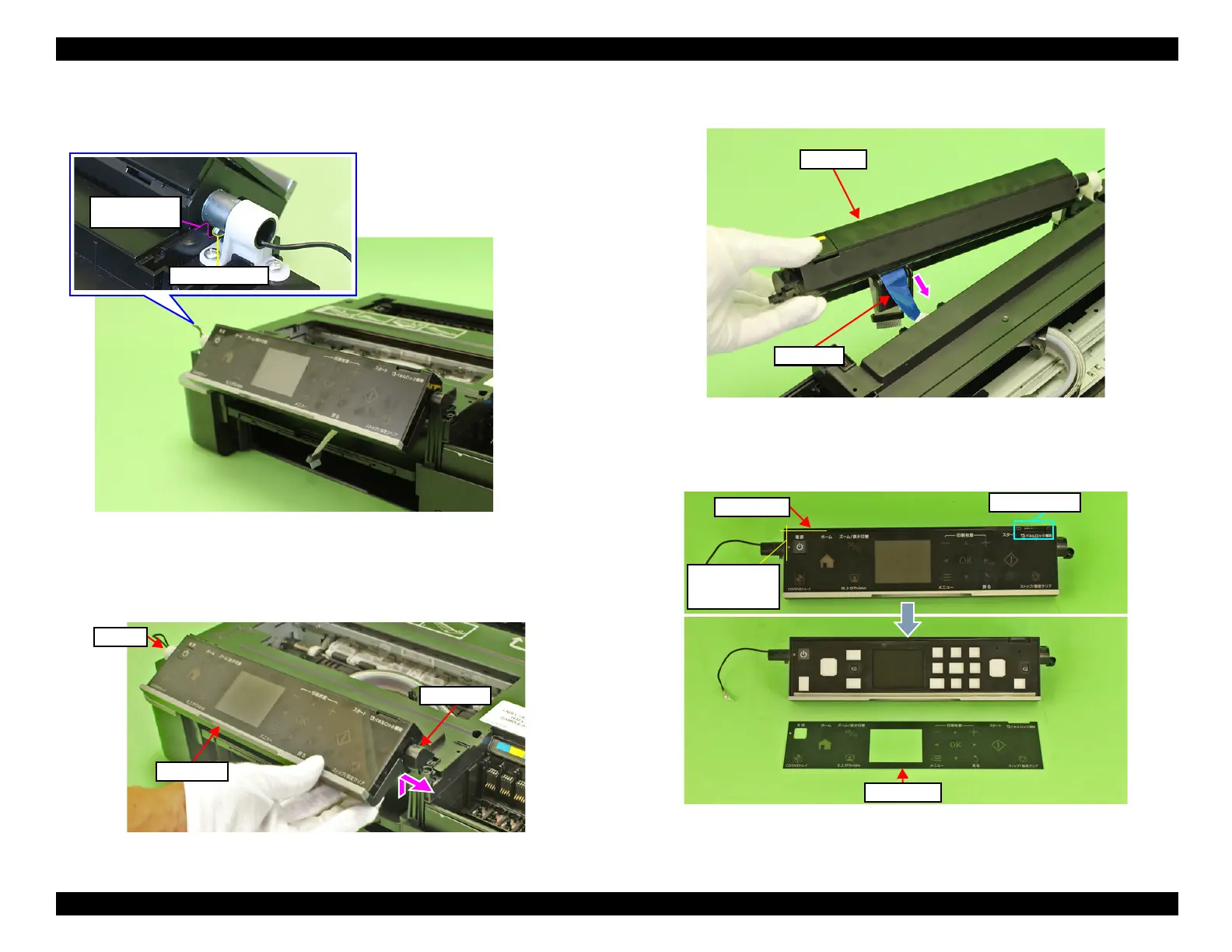

7. Tilt the Panel Unit by 45 degrees to align the rib of the shaft on the left side of
the Panel Unit with the groove of the Upper Housing.
Figure 8-15. Removing the Panel Unit (2)
8. Lift the Panel Unit so as not to let the Right Hinge interfere with the Upper
Housing, and remove the shaft from the bushing on the left side of the Panel
Unit.
Figure 8-16. Removing the Panel Unit (3)
9. Pull out the Panel FFC from the Panel Unit, and remove the Panel Unit.
Figure 8-17. Removing the Panel Unit (4)
10. Insert the tweezers or the like into the slit of the unlock button and peel off the
Panel Sheet.
Figure 8-18. Removing the Panel Unit (5)
Rib of the shaft
Groove of the
Upper Housing
Panel Unit
Right Hinge
Bushing
Panel Unit
Unlock button
Reference point
for the panel
sheet attachment
