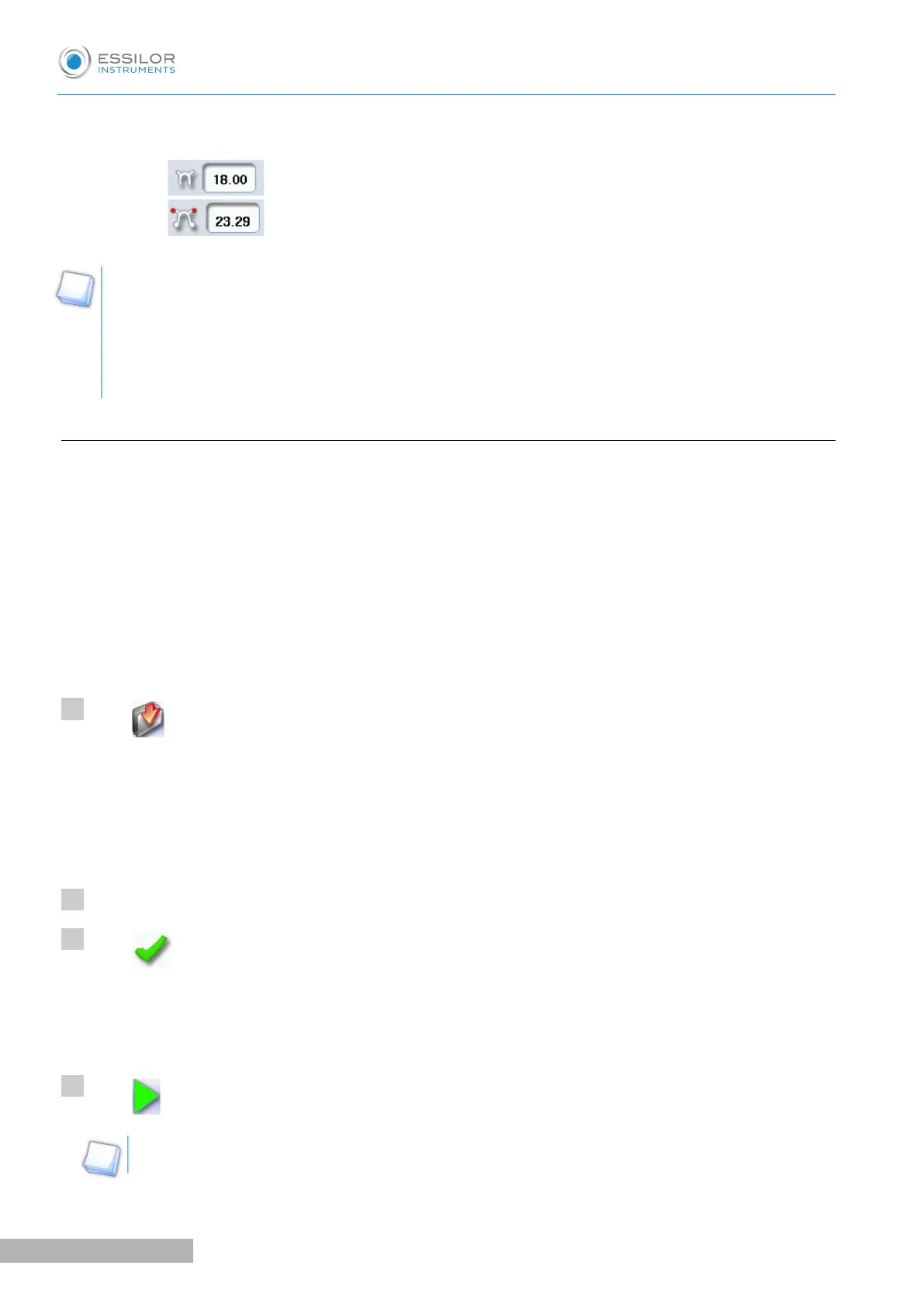

Two values are displayed under the work area
• The D-dimension (in mm) you have entered for the tracing
• The separation (in mm) between the two reference drilling points on the nasal
side (right lens and left lens)
Once the model has been imported, you can move the drilling points if you wish. For further
information, refer to the following sections:
• Preparing a drilled job > Positioning a drilling point > Configuring a drilling point (F p.86)
• Preparing a drilled job > Positioning a drilling point > Adjusting the position of a drilling point
(F p.87)
b. Saving a model
This function makes it possible to memorize a shape and its drilling points in a new job with a new ID whilst
saving the original job.
Saving a model enables you to save in a new job:
• The traced shape
• The value of the D-dimension
• The drilling point settings
• The drilling point heights in relation to the Boxing center of the shape (Y coordinates)
• The distance from reference drilling points in relation to the edge of the lens (other drillings, in
relation to reference drilling)
Press to save the job and its drilling points.
The job-creation alphanumeric keypad is displayed.
A new ID is allocated (first free slot in the selected list).
You can also give it a different ID.
Enter a reference for your model.
Press to confirm.
The model is saved in a new job.
The new job with the new ID is displayed on the drilling screen.
Press to return to the centering screen.
You can go back to the previous job via the shape management screen if it has an ID.
