Setting the IP address, port numbers, and other network settings
In the Networking pane you set the IP addresses for the unit, gateway, and DNS server,
as well as the subnet mask and port numbers for a variety of port types.
NOTE: Changes to any setting in this page are not applied and saved until you click
Save.
To configure network settings:
1. In the System Settings page, click the Expand button for the Networking pane.
The pane opens.
192.168.157.162
255.255.0.0
10.13.0.100

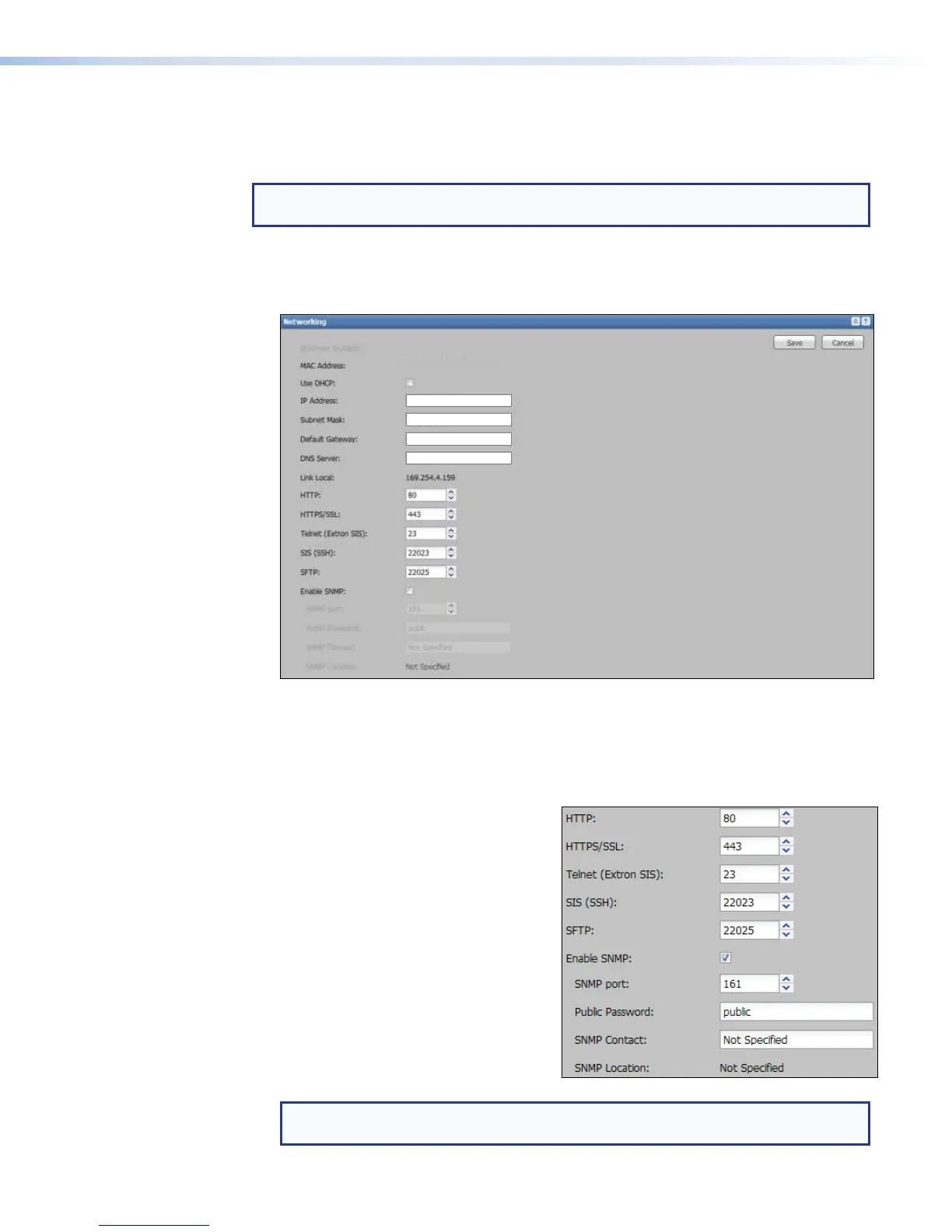

Figure 74. System Settings, Networking Panel
2. To use DHCP to automatically assign an IP address and related settings, select (check)
the Use DHCP: check box. The fields for setting the IP address, Subnet Mask,
Default Gateway, and DNS Server address are inaccessible (grayed out). Proceed
to step 4.
3. If not using DHCP, type the appropriate
values for the corresponding IP
addresses and mask into the IP
Address, Subnet Mask, Default
Gateway, and DNS Server fields.
4. To change port numbers for the
protocols listed in the lower portion of
this panel (SFTP, SSH, Telnet, HTTP,
SNMP, or HTTPS/SSL), type the new
number into the desired field or use
the Up and Down arrows to change
the values. The standard (default) port
numbers are shown in the image at right.
NOTE: The Telnet port is used by Extron DataViewer software and for Extron SIS
communication and programming.
SMP351 • Web-Based User Interface 115
