Sub-tabs can be hidden to fit the information into the available screen width. To access
sub-tabs within the Configuration tab, click the tab scroll arrow buttons (see figure 23,
A
and
B
) on each side of the sub-tabs to move the sub-tabs right and left.
AA
B
B

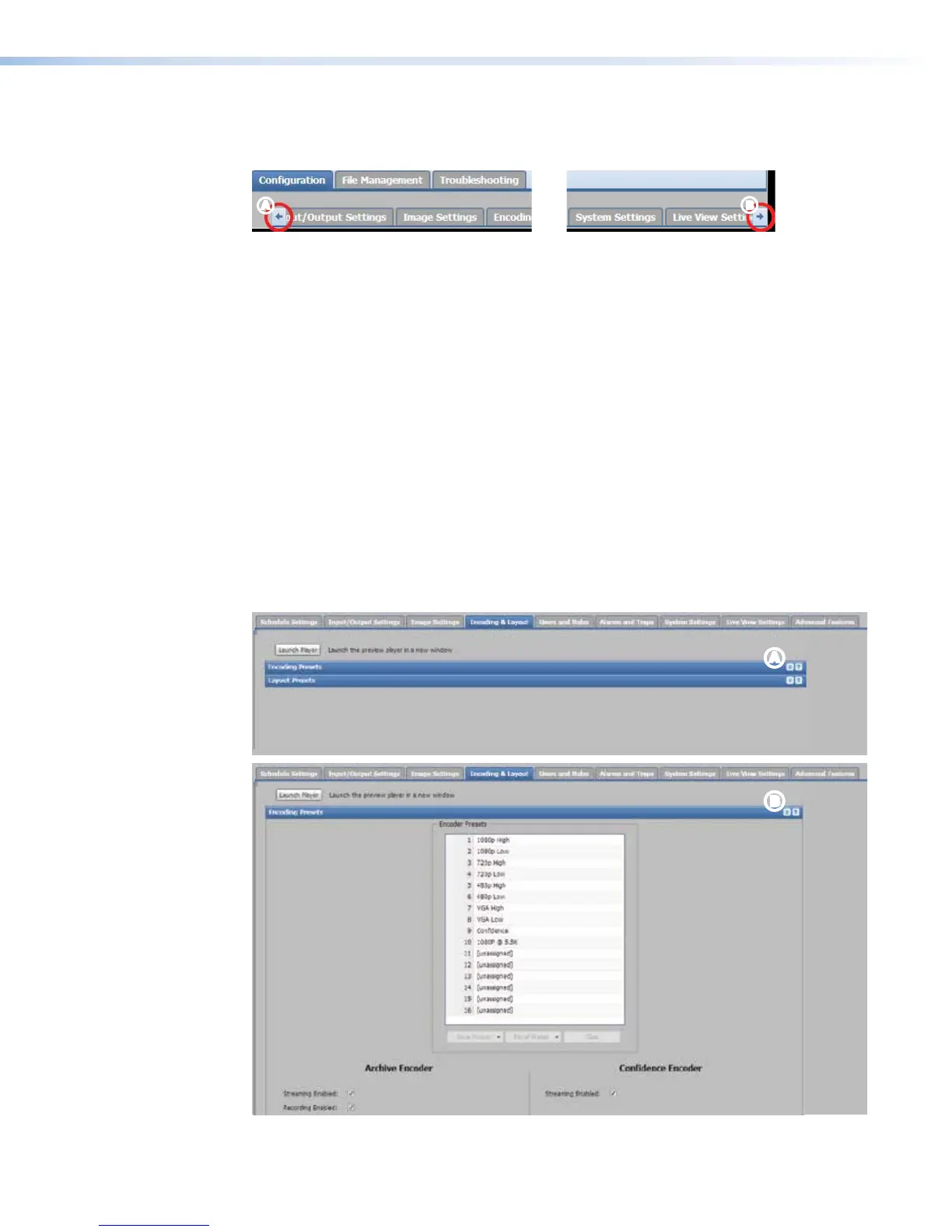

Figure 23. Tab Scroll Arrows
Panels and screen sections
Each SMP351 Web page contains at least one panel and a main window with sections
that group the controls and information for each page. Most panels include controls and a
variety of adjustments and settings. Specific sections can include controls or simply display
information. Sections or panels can include tabs with additional selections and options.
All SMP351 Web pages include the AV Controls panel at the left of the screen (see AV
Controls Panel on page54). The Recording Controls page is the main page and
also servers as the main interface for operating the SMP351 . It contains one panel and
three sections. Pages such as the Systems Settings page within the Configuration
tab include several panes, each with a different collection of information and settings.
Collapse and expand panes
Click the Expand (
A
) arrow button on the right side of a pane. The pane opens to expand
it.
Click the Collapse (
B
) arrow button at the top corner of a pane to collapse it. This hides
the controls and provides additional room for other panes.
AA
B
B
Figure 24. Collapsed and Expanded Panes
SMP351 • Web-Based User Interface 50
