Except for the overscan settings and input preset saving and recalling, all settings on this
page can also be configured using the front panel menu and controls.
You must select an input from the Input Config panel in the upper left of this page before
you can adjust the image settings or save or recall presets. Note that selecting an input
within the Image Settings page also changes the active input.
Adjusting picture controls
The Picture Controls panel has brightness, contrast, color, and tint settings that are
adjusted and then applied to the currently selected input. These include:
• Brightness • Color
• Contrast • Tint

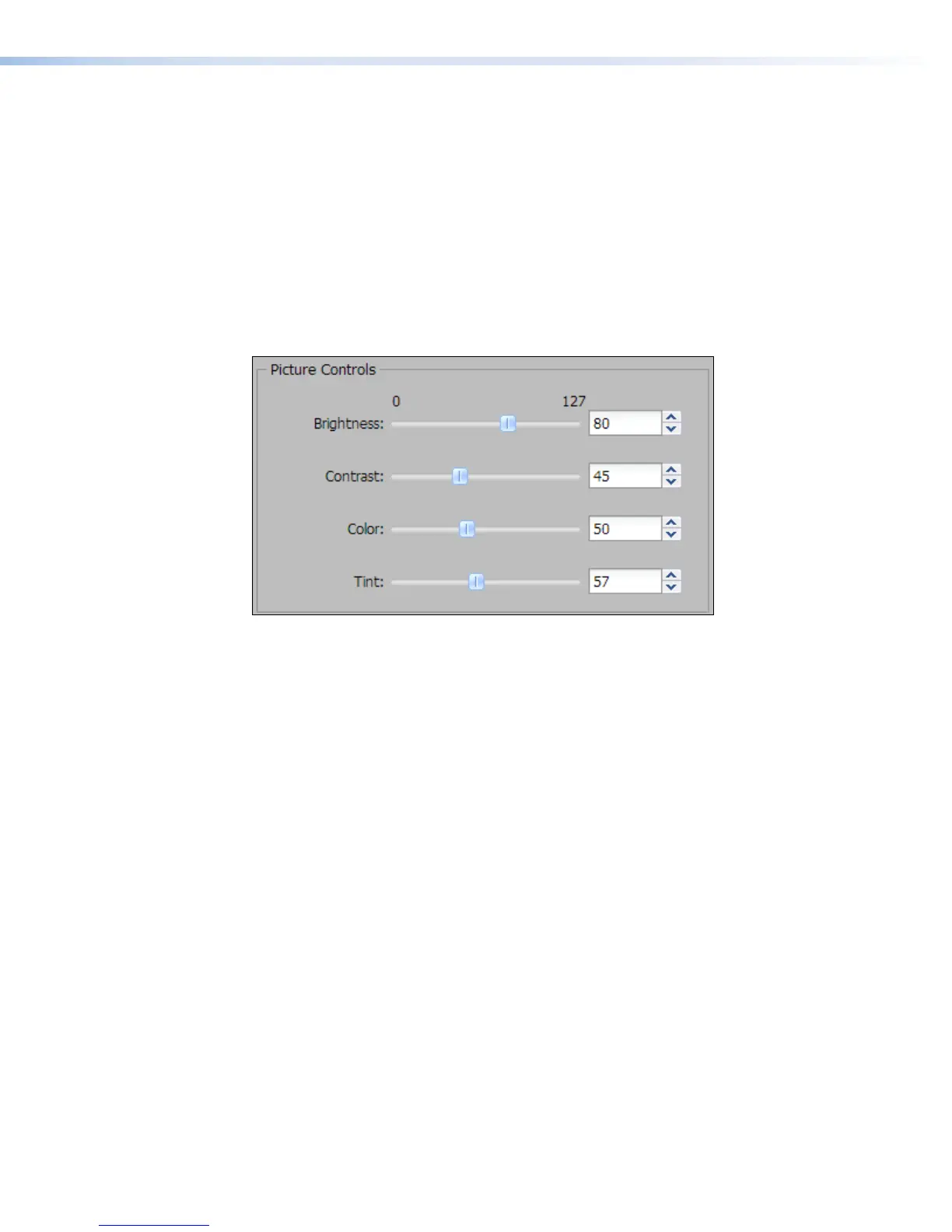

Figure 55. Configuration Settings, Picture Controls
To adjust picture controls for the currently selected input:
• Click and drag the associated handle of the slider for any image setting to the
desired value.
• Alternatively, to change the value in the field, enter a value within the field associated
with the image setting, or click the Up and Down arrows alongside the associated field.
Observe the picture on the display and adjust settings as necessary.
SMP351 • Web-Based User Interface 83
