Flexim FLUXUS G704 User Manual

94 UMG70XV3-4EN 12.01.2009
10 Basic Measurement
Mounting the Transducers with FLEXIM Clasps
• Cut the tension straps (pipe circumference + 120 mm).
• Push approx. 2 cm of the tension strap through the slot of the clasp (see Fig. 10.11).

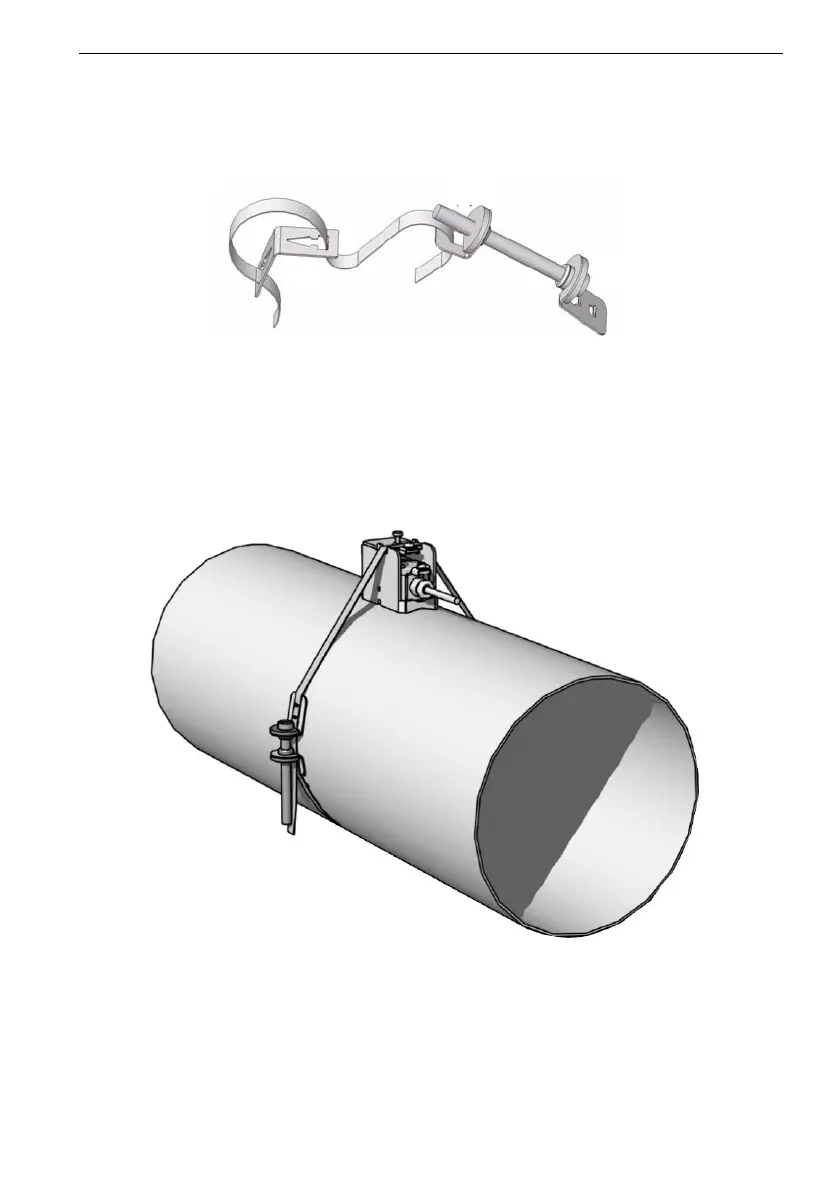

Fig. 10.11: Clasp, metal spring with tension strap
• Push the tension strap through the metal spring (3, see Fig. 10.11).
• Bend the end of the tension strap back. Push the other end of the tension strap through
the groove on the top of the mounting shoe.
Place the clasp on the side of the pipe. Turn the tension strap around the pipe (see Fig.
10.12)
Fig. 10.12: Mounted transducer in mounting shoe, fixed with FLEXIM clasp
1
2
3
