FT-111, User Manual Rev. 2.0.0, June 2022 Page 38 of 137

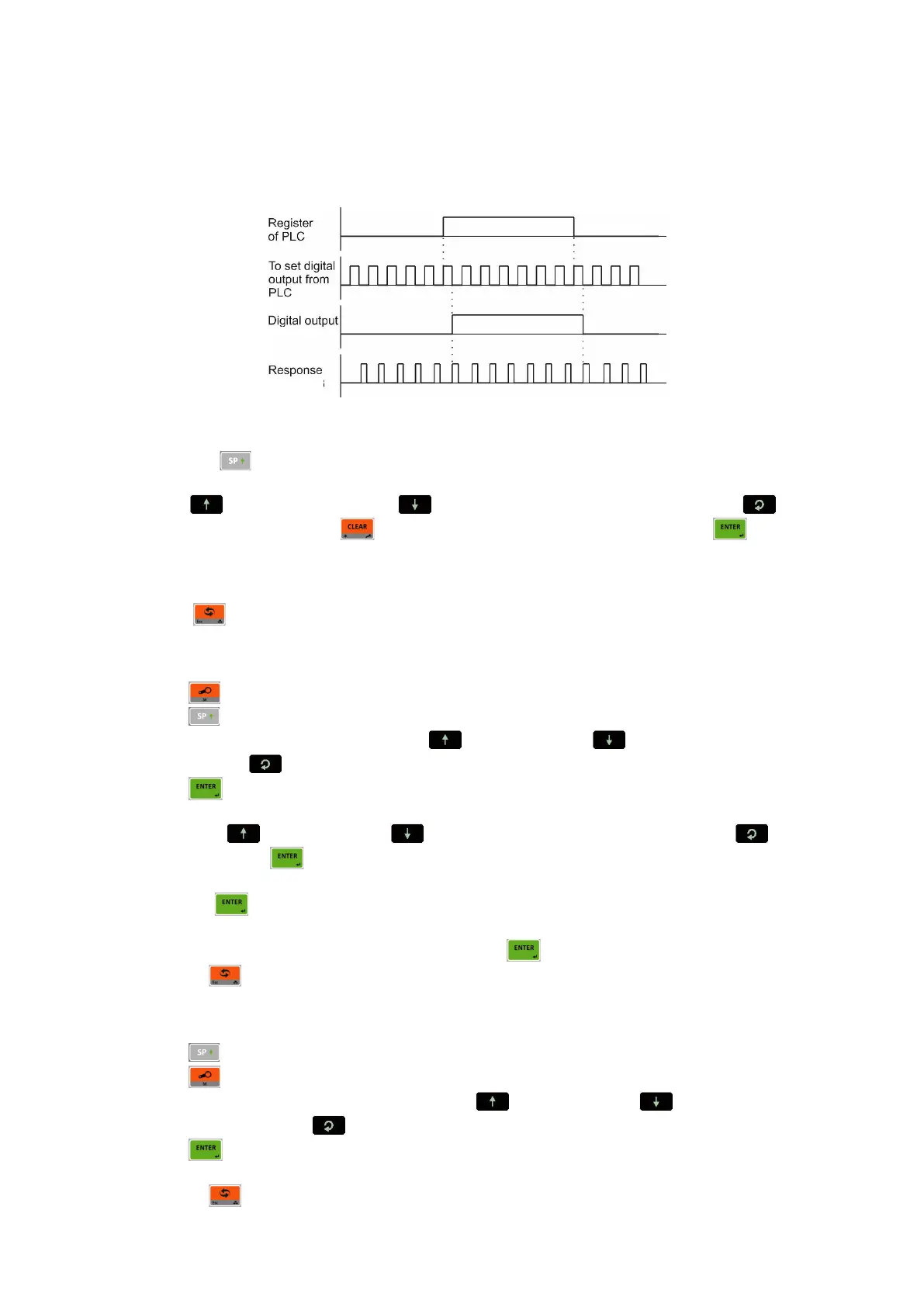

The digital output(s) can be controlled from PLC as a Remote output if the instrument is equipped with
any fieldbus option. Refer to related fieldbus command table to activate or deactivate the outputs. This
usage is independent from the weighing process of the instrument.
Entry the set point values
1. Press the key.
2. The set point 1 value appears on the display as value is seen on the display [ SP 1 1250 kg ].
3. Press key to increase or press key to decrease the blanking digit and press key to
select digit. You may press key to enter negative set point value. Press the key to save it
and to go to the next set point.
4. Repeat from step 2 for entering following set points.
5. The FT-111 returns to the operation after displaying set point 5 and entering its value,
6. Press key to return operation at any step.
Set point entry into SET memory
1. Press key for more than 2 seconds. [ MEMORY ] prompt appears.
2. Press key. The last used set memory group number appears as [ SET : 111 ].
3. Enter the new memory code by pressing key to increase or key to decrease the blanking
digit and press key to select digit.
4. Press key to enter into the item.
5. The first set point value is seen on the display as [ SET 111 - SP1 ] [ 10.00 kg ]. Enter the new value
by pressing key to increase or key to decrease the blanking digit and press key to
select digit. Press key to confirm.
6. The following limit value appears as [ SET 111 - SP2 ] [ 20.00 kg ]. Enter new value by keys and
press the key.
7. Repeat step 4 and 5 until entering values to other three set point value of the group.
8. After entering the value of 5th set point value press key to go next memory code.
9. Or press key to exit.
Select limits of item from SET memory
1. Press key. The last used set point value appears on the display as [ SP1 1250 kg ].
2. Press key. The last used set memory code appears on the display [ SET : 111 ].
3. Enter the memory code of the item by pressing key to increase or key to decrease the
blanking digit and press key to select digit.
4. Press key to confirm.
5. The selected Set memory data is loaded after displaying values.
6. Or press key to exit without loaded.
