10. User Patterns
10-1. About the User Patterns
You will have a number of preprogrammed DVE patterns that can be immediately called up and
applied to operation. In addition, the user can make and store up to 50 user effects patterns.
User patterns can be also modified using the DVE MODIFY menu in the same way as preset
patterns (No.401 to 450). User patterns data can be backed up using the CF card (U01 to U50
are used for file extensions for the user pattern data). Refer to section 13-2, "Saving Data to CF
Cards" for saving the data.
The procedure for creating and executing user patterns is shown below.
Number of stored
user patterns
50 patterns
max.
Number of
keyframes in one
pattern
50
keyframes
max.
Total available
keyframes in all
user patterns
704
keyframes

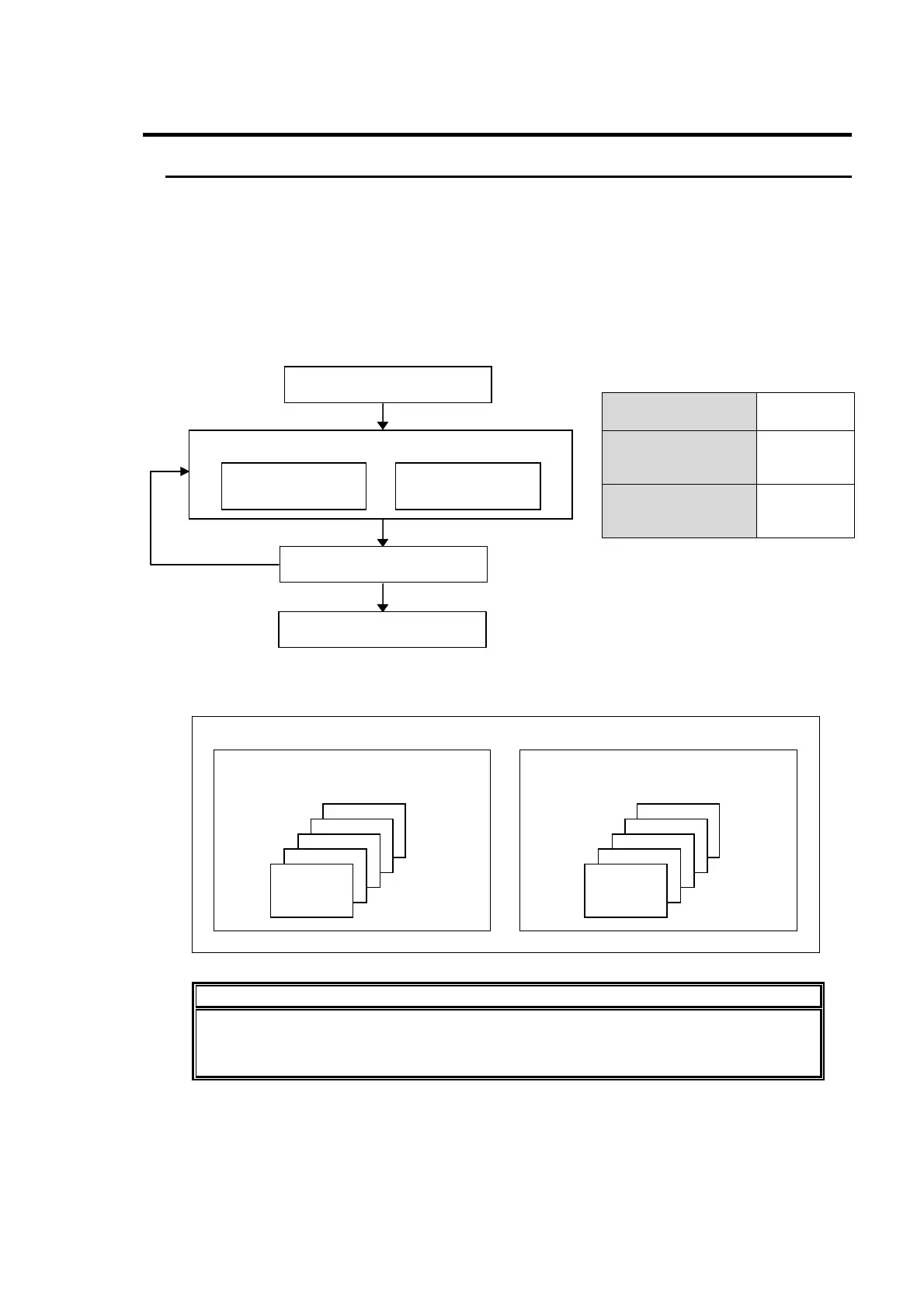

 DVE Pattern Data Structure
IMPORTANT
The total number of available keyframes in the user pattern is a maximum of 704
keyframes
. If no keyframes are available, keyframes cannot be added to the user
pattern.
Select user pattern
Modify pattern
Assign to bus/Execute
Modify keyframes
Add/Delete
keyframes
Check user pattern operation
KEY
FRAME
DVE EFFECT CH1
Max. 50 Ke
y
frames
USER PATTERN
KEY
FRAME
DVE EFFECT CH2
Max. 50 Ke
y
frames
