6. Transition Operations
The following transition features are available in this switcher:
 Black transitions (only M/E2)
 Background CUT, MIX, NAM, FAM, WIPE (DVE) transitions
 KEY1, KEY2 and KEY3 CUT, MIX (Normal, FAM and NAM) and WIPE (DVE) transitions
 Background transitions using the AUTO button or the fader lever
 Key transitions using the KEY AUTO button (HVS-16/24OUA only)
 100 WIPE preset patterns and 120 DVE preset patterns available
 WIPE transitions can be used simultaneously with background and keyers either among KEY1,
KEY2 and KEY3. (the same pattern applied)
 DVE transitions can be used simultaneously (different patterns available) in background, KEY1,
KEY2 and KEY3. (depends on the number of DVE channels)
 Simultaneous transitions with the background and key using the TIE function

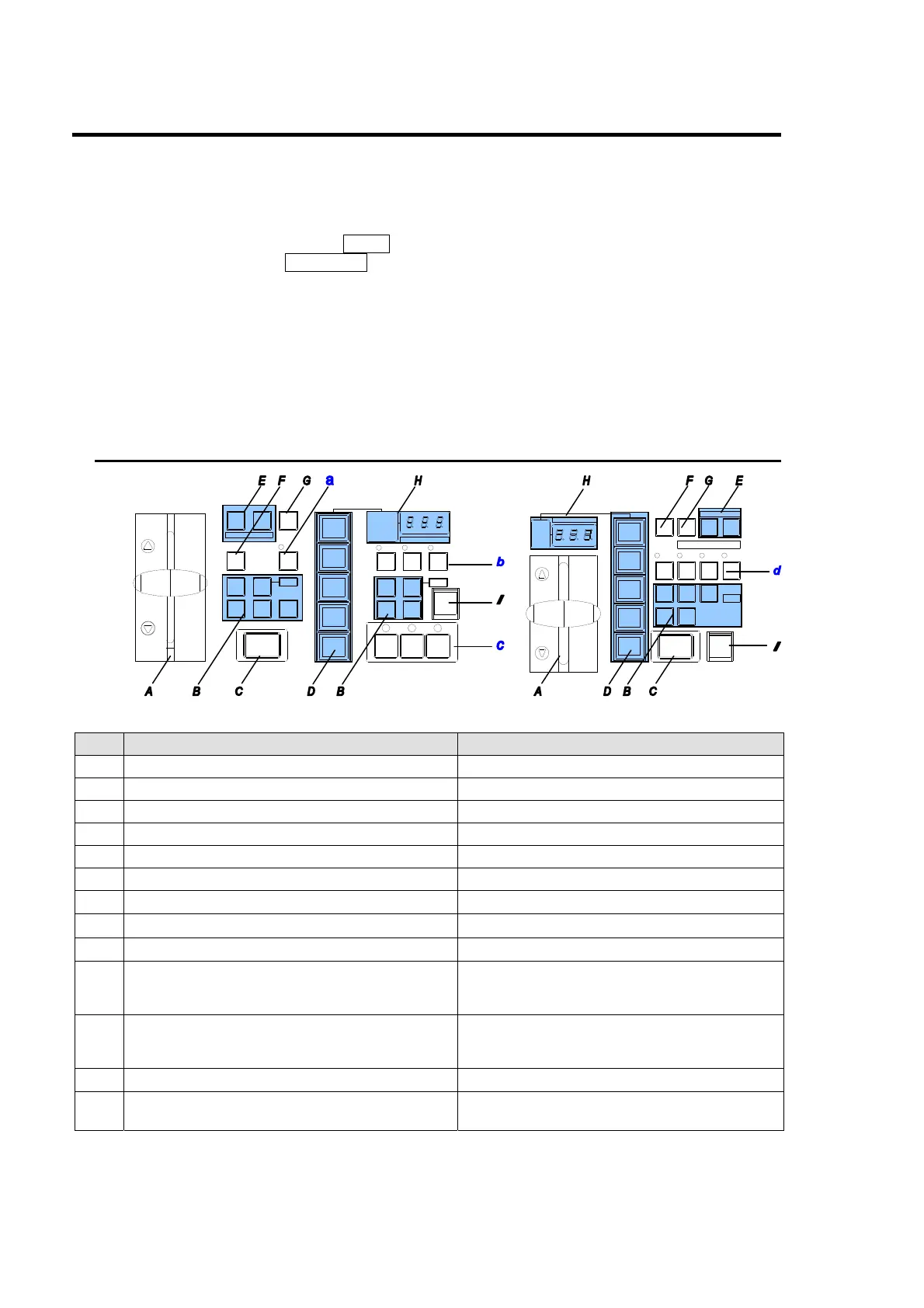

6-1. Transition Operation Section
Item HVS-16/24OUA HVS-12ROUA
A Fader lever (KEY: TIE transition only.) Fader lever
B Transition type button Transition type button
C BKGD AUTO transition button BKGD AUTO transition button
D Selection of DVE and WIPE Selection of DVE and WIPE patterns
E WIPE/DVE direction control buttons WIPE/DVE direction control buttons
F Transition preview button Transition preview button
G Fader limit control button Fader limit control button
H Transition rate display for BKGD, KEY1-3 Transition rate display for BKGD, KEY1-3
I Black transition button Black transition button
a
Next transition selection button (TIE transition).
They are used to designate the bus in pattern
selection
-
b
Next transition selection button (TIE transition).
They are used to designate the bus in pattern
selection
-
c KEY AUTO transition button -
d -
Next transition selection button. They are
used to designate the bus in pattern selection.
AUTO
AUTO
KEY2
KEY1
AUTO
DVE DVE DVE
TRANSITION RATE
KEY3
KEY3
WIPE
CUT
MIX
KEY1 KEY2
BLACK
TRANS
BKGD
KEY1
KEY2
KEY3
DVE WIPEDVE WIPE
NAM
MIX
PREV
REV
NOR
REV
WIPE
FAM
WIPE DIRECTION
LIMIT
BKGD
CUT
DVE WIPE
DVE
TRANS
FADER
AUTO
KEY3
BKGD
KEY2
KEY1
ON ON
WIPE DIRECTION
REV
ON
KEY3
DVEDVE DVEDVE
TRAN SITION RATE
TRANS
PREV
BKGD
MIX
NAM
AUTO
KEY1
CUT
FAM
FADER
LIMIT
KEY2
WIPE
NOR
REV
DVE WI PE
BLACK
TRANS
