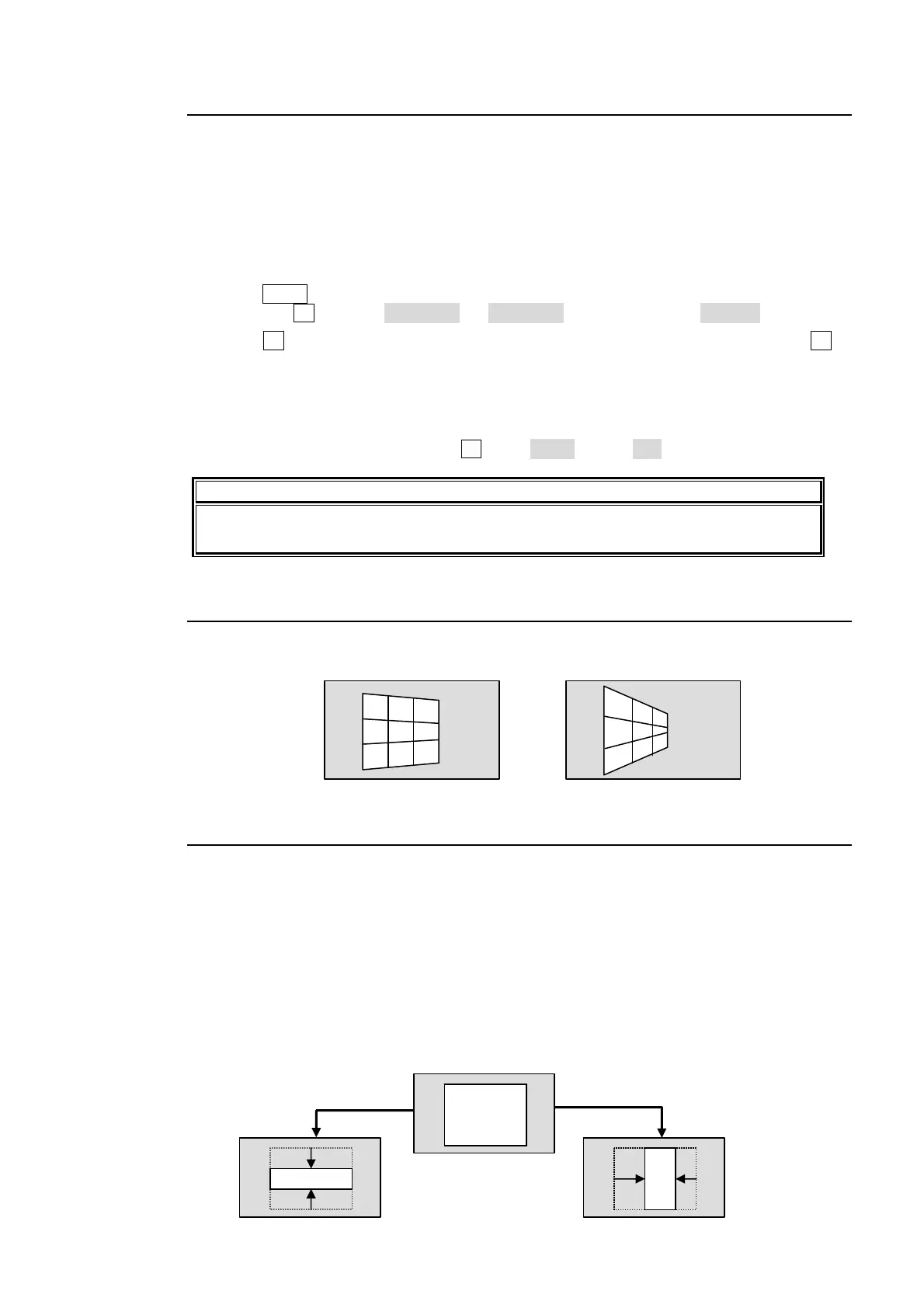

105
8-2-2. DVE STILL
The DVE STILL is used to save an image for DVE-specific still. This image can be applied to
back side of the DVE image such as the reverse page of page turn effects or the side walls of
PIZZA BOX.
Saving DVE STILL
Make an image that you want to use for DVE STILL to output the program line of M/E1 (or
M/E2).
Press STILL in the SYSTEM group to display the STILL menu. In the STILL STORE (2/2)
menu, turn F5 to select M/E1PGM (or M/E2PGM) to be captured at SIGNAL.
Press F6 to store the DVE STILL or open the DVE MODIFY (1/8) menu and press F5 to
store the DVE STILL. (See section 7-1-2.) A "beep" sound will be heard and the program
image is saved to the DVE STILL.
Applying DVE STILL
In the DVE MODIFY (1/8) menu, turn F6 to set BACK item to ON.
IMPORTANT
PIZZA SIDE image and DVE STILL use a same buffer. So when using a PIZZA BOX
effect, DVE STILL cannot be used regardless of the BACK IMG setting.
8-2-3. PERSPECTIVE
This parameter changes the view angle reference for the image and does not change image
size.
8-2-4. CROP
PRESET PATTERN CROP (applied to all DVE patterns)
Preset crop setting can be made for all DVE preset patterns. This setting is made in the
FUNCTION - DVE SETUP menu.
In addition to being able to crop uniformly on the top,
bottom, left and right. (See section 6-9-9 "DVE Transition Additional Settings" for more
details.)
DVE MODIFY CROP (applied to each DVE pattern)
Crop setting also can be made for each DVE pattern in DVE MODIFY menu. The background
image will be applied to the cropped area.
LEFT and RIGHT crop
TOP and BOTTOM crop
