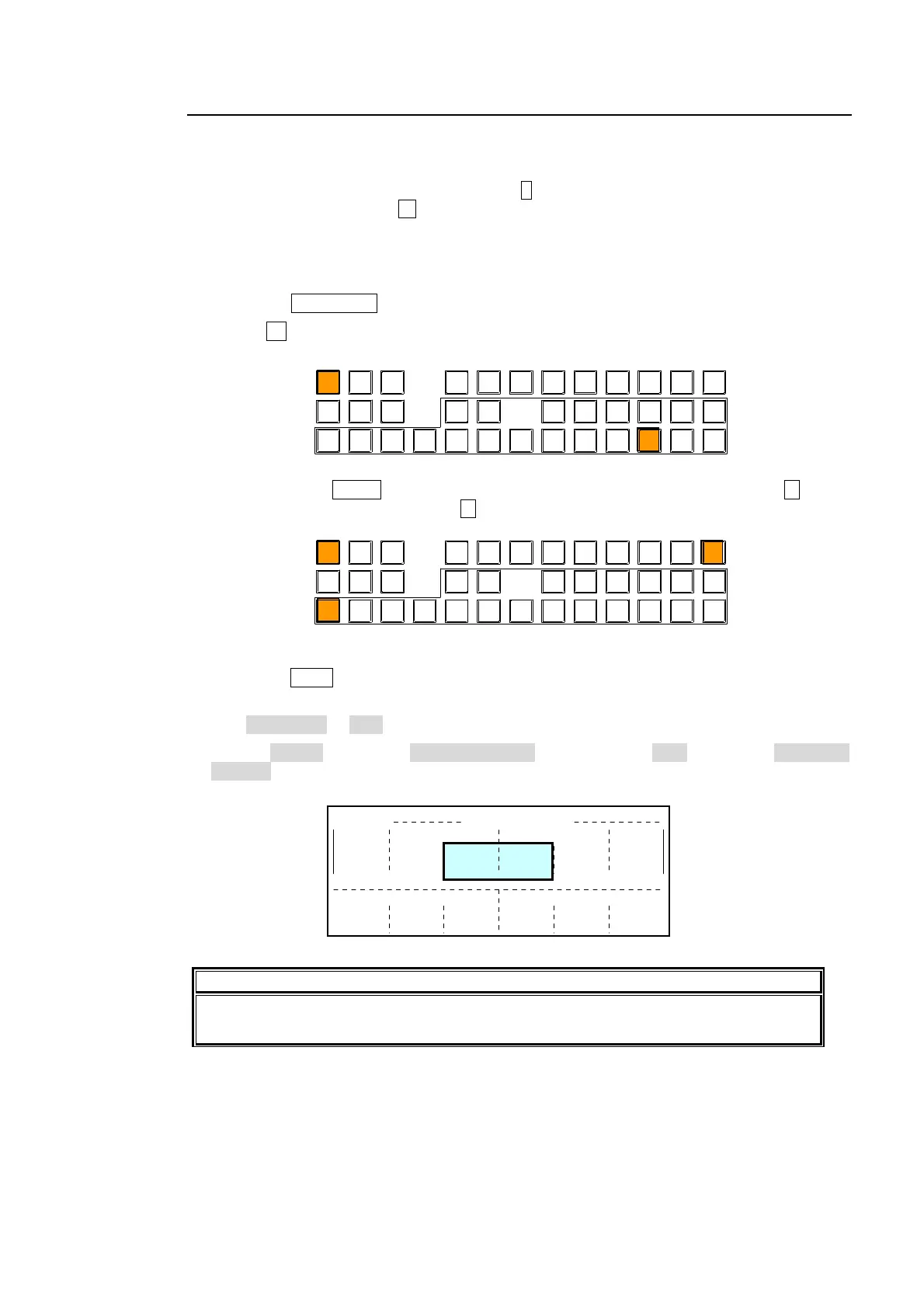

5-6-6. Selecting the Key Source / Insert (HVS-12ROUA)
The key signal is selected using the key bus select button and AUX/KEY button. It can also
be selected from the KEY-SOURCE / INSERT menu.
This example describes when the bus button 1 (IN01 signal) is selected for KEY SOURCE
(key signal) and bus button 11 (STILL1 signal) is selected for KEY INSERT (fill signal) in
KEY1 of M/E1. When selecting from the menu, the signal name of the source is used to make
the selection.
Selection by AUX/KEY bus
Press the M/E1-KEY1 button in the key bus select section to light it.
Press 11 in the AUX/KEY bus section. The bus signal 11 will be selected for KEY
INSERT.
Next, press the SHIFT button in the BUS SELECT section to turn it on. Press 1 in the
AUX/KEY bus section. The button 1 lights up (KEY SOURCE selected).
Selection by key menu
Press the KEY1 button in the M/E1 group to display the KEY1(1/6) menu. If the cursor is
in the bottom row, use the UP/DOWN button to move it.
Set KEY-TYPE to BUS.
Select STILL1 under the INSERT-SIGNAL option. Select IN01 under the SOURCE-
SIGNAL option.
NOTE
The KEY MATT signal cannot be selected from the AUX/KEY bus. For details about
signals that can be selected by the key, refer to section 5-6-8. “Available Signals”.
KEY1(1/6) SOURCE/INSERT
KEY
TYPE
BUS
GAIN
1.0
TYPE
BUS
KEY SIGNAL
CLIP
50
SIGNAL
STILL1
TRANSP
0.0
SIGNAL
IN01
RATE
30
INVERT
OFF
TRANSITION
LIMIT
OFF
FAM
OFF
LEVEL
100.0
INSERT SOURCE
M/E1
KEY1
M/E2
KEY1
M/E1
KEY2
M/E2
KEY2
M/E1
KEY3
M/E2
KEY3
3214
AUX
5
AUX
1/9 2/10
6
AUX
3/11
78
M/E1
PGM
AUX
4/12
AUX
5/13
M/E1
PREV
910
M/E1
CLEAN
AUX
6/14
AUX
7/15
M/E2
PGM
11 12
M/E2
PREV
AUX
8/16
SHIFT
M/E2
CLEAN
SHIFT
AUX/
KEY
BUS
SELECT
OUT BOUT A
KEYKEY
M/E1
KEY1
M/E2
KEY1
M/E1
KEY2
M/E2
KEY2
M/E1
KEY3
M/E2
KEY3
3214
AUX
5
AUX
1/9 2/10
6
AUX
3/11
78
M/E1
PGM
AUX
4/12
AUX
5/13
M/E1
PREV
910
M/E1
CLEAN
AUX
6/14
AUX
7/15
M/E2
PGM
11 12
M/E2
PREV
AUX
8/16
SHIFT
M/E2
CLEAN
SHIFT
AUX/
KEY
BUS
SELECT
OUT BOUT A
KEYKEY
