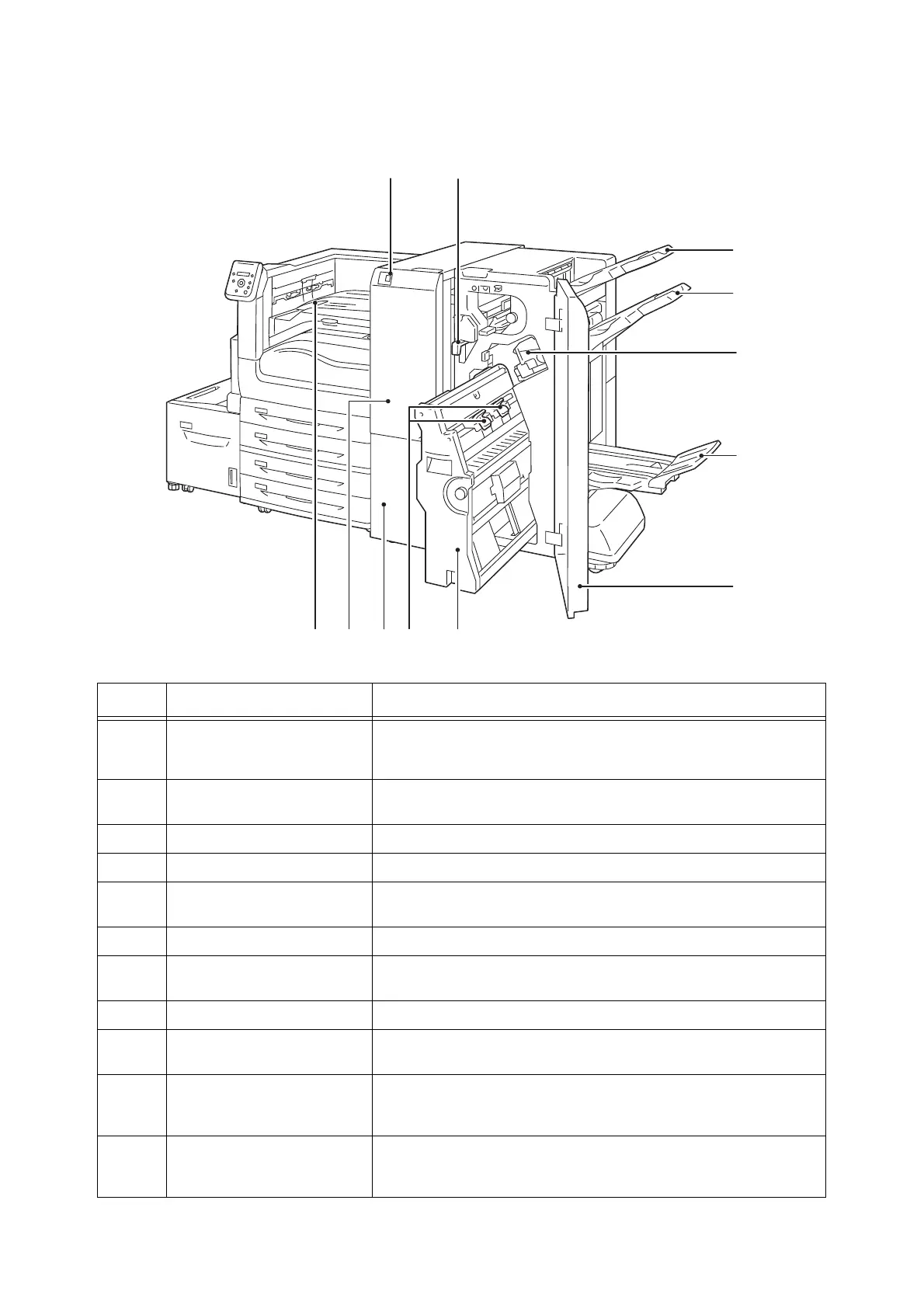

2.1 Main Components and Functions 51
C3 Finisher (optional), C3 Finisher with Booklet Maker (optional), and
Folder Unit CD1 (optional)
No. Name Description
1 Tri-fold output tray button (When
the optional Folder Unit CD1 is
installed)
Press this button to open the tri-fold output tray.
2 Hole-punch waste container Collects punch scraps from the puncher. Remove this container when
discarding the scraps.
3 Output tray Outputs are delivered here.
4 Finisher tray Outputs are delivered here.
5 Staple cartridge Staples are stored in this cartridge. Pull out this cartridge to replace staples
or clear staple jams.
6 Booklet tray Bound booklets are delivered here.
7 Finisher front door Open this door to clear paper or staple jams, replace staples, or discard
punch scraps.
8 Booklet unit This unit is for folding outputs in half and stapling the folded outputs.
9 Booklet staple cartridge Two staple cartridges for booklet creation. Take out the cartridges when
clearing stapled jams, or when replacing them with new ones.
10 Tri-fold output tray (When the
optional Folder Unit CD1 is
installed)
Tri-folded outputs are delivered here.
11 Folder Unit cover (When the
optional Folder Unit CD1 is
installed)
Open this cover to clear paper jams.
To Next Page
