Release all HDD modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD module" on page 131.
CAUTION
The HDD modules need not to be removed.
▶
If you want to remove them nevertheless, check if all HDD
modules are uniquely identified so that you can reinsert them
into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 3.5-inch HDD dummy module" on page
128.
Removing the defective 4x 3.5-inch HDD backplane

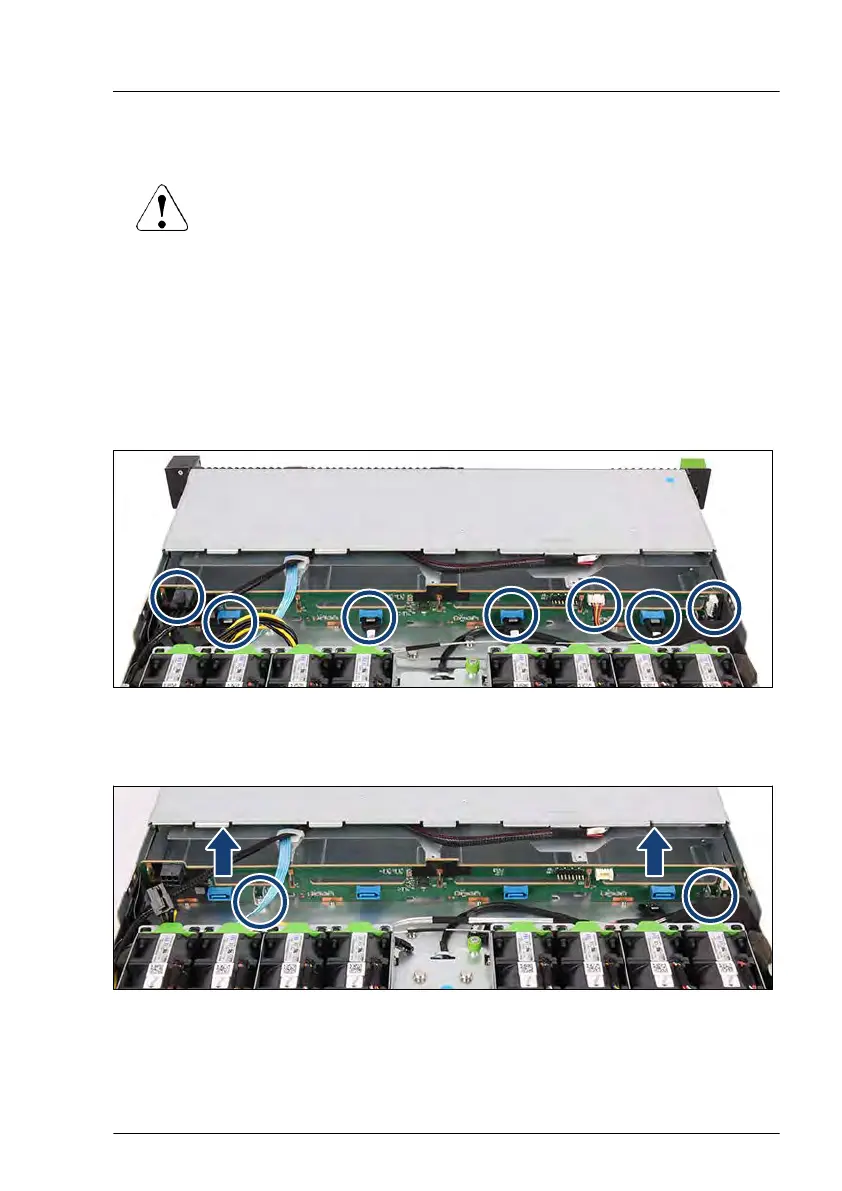

Figure 51: Disconnecting the cables from the 4x 3.5-inch HDD backplane
▶
Disconnect all cables from the HDD backplane (see circles).
Figure 52: Removing the 4x 3.5-inch HDD backplane
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 135
