Release the two screws (see circles).
▶
Pull the HDD backplane upward until the five hooks disengage.
▶
T
ake out the HDD backplane.
Installing the new 4x 3.5-inch HDD backplane

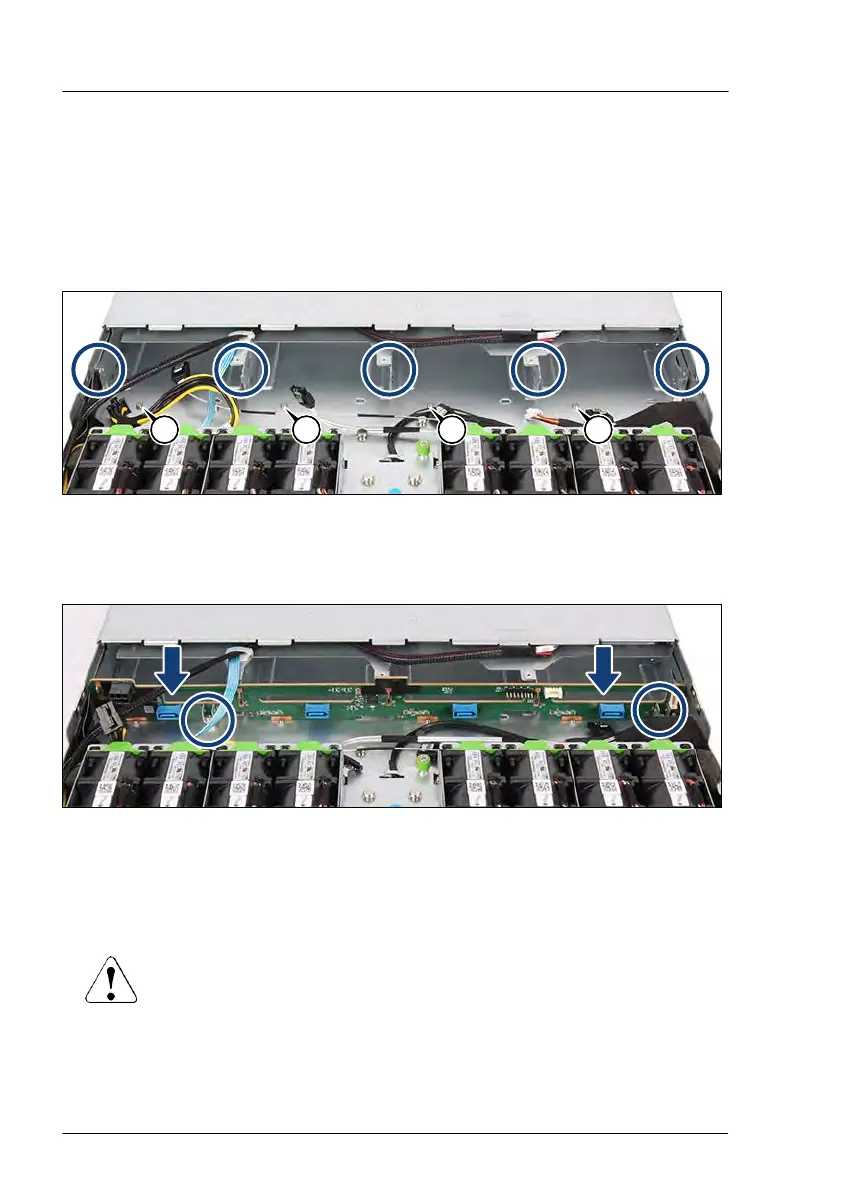

Figure 53: Hooks and guide pins
▶
Notice the hooks (see circles) and guide pins (A).
Figure 54: Installing the 4x 3.5-inch HDD backplane
▶
Position the HDD backplane on the five hooks.
▶
Push the HDD backplane downward. Make sure that the HDD backplane fits
behind the guide pins.
CAUTION
▶
Ensure that none of the cables are strained or damaged!
▶
Fasten the two screws (see circles).
Hard disk drive (HDD) / solid state disk (SSD)
136 Upgrade and Maintenance Manual RX2530 M6
