Preliminary steps
â–¶
If applicable, "Removing the front cover with lock" on page 48.
â–¶
Locate the correct drive bay
, see "2.5-inch HDD/SSD configurations" on
page 138.
â–¶
Depending on your configuration and OS: "Shutting down the server" on
page 48.
Removing a 2.5-inch HDD/SSD dummy module

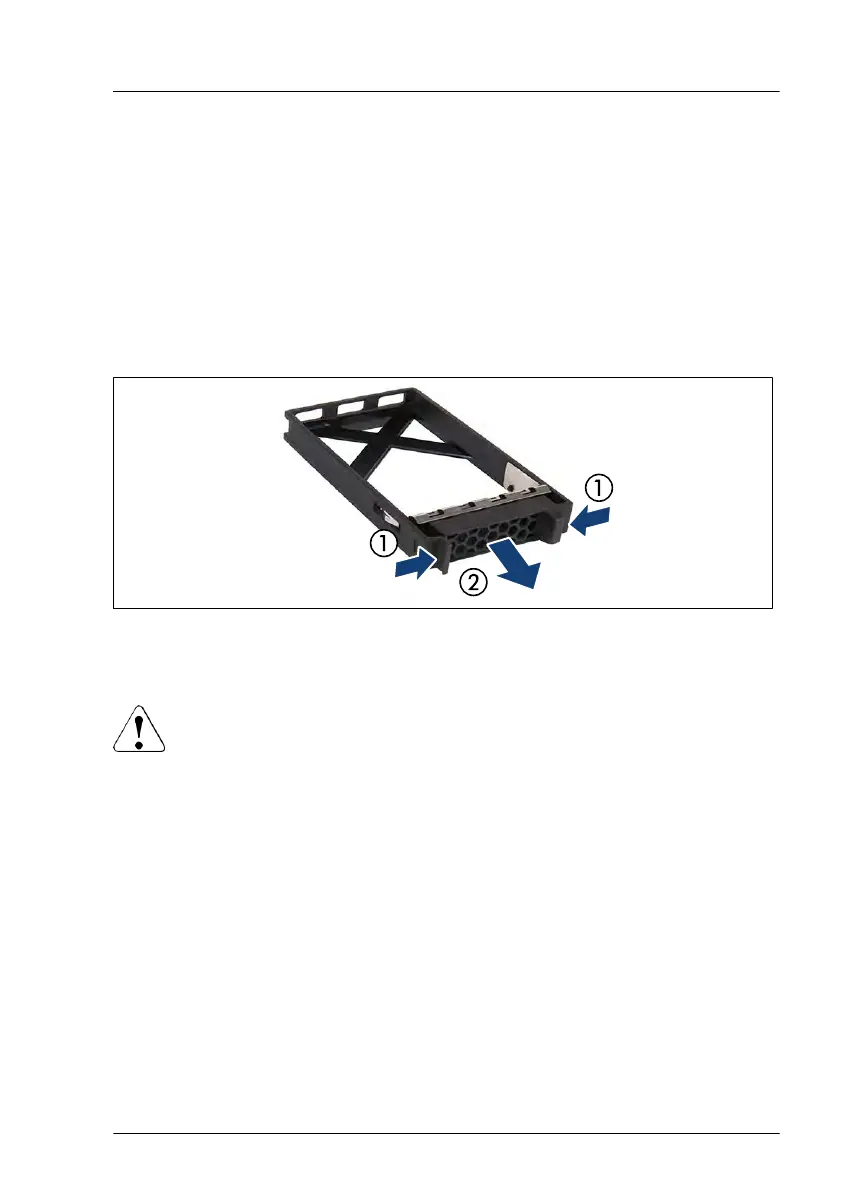

Figure 63: Removing a 2.5-inch HDD/SSD dummy module
â–¶
Press both tabs together (1) and pull the dummy module out of its bay (2).
CAUTION
â–¶
Keep the dummy module for future use.
â–¶
Always replace dummy modules into unused HDD/SSD bays to
comply with applicable EMC regulations and satisfy cooling
requirements.
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 147
