Installing a 2.5-inch PCIe SSD module

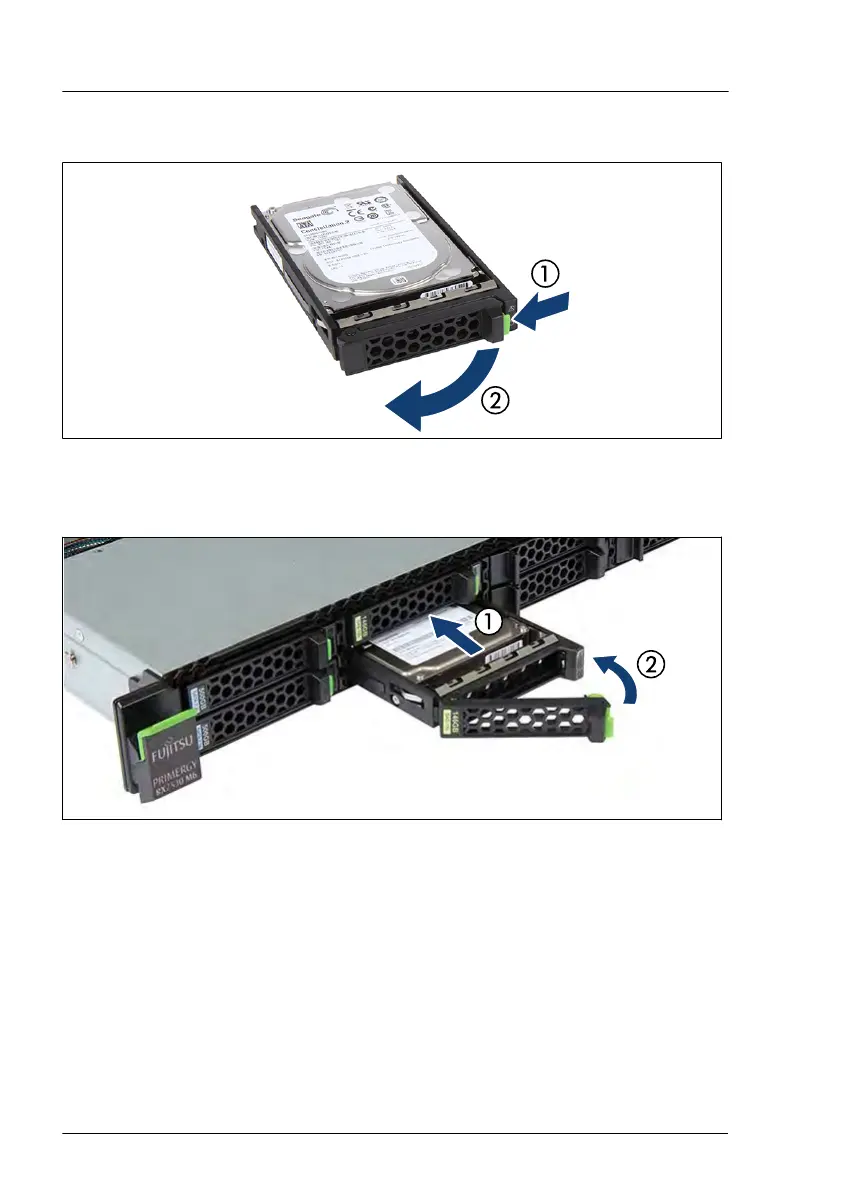

Figure 64: Opening the locking lever
▶
Pinch the green locking clips (1) and open the locking lever (2).
Figure 65: Installing the 2.5-inch PCIe SSD module
▶
Insert the PCIe SSD module into a drive bay and carefully push back as far
as it will go (1).
▶
Close the locking lever to lock the PCIe SSD module in place (2).
Concluding steps
▶
If applicable, "Switching on the server" on page
66.
▶
If applicable, rescan available devices from your OS.
Hard disk drive (HDD) / solid state disk (SSD)
148 Upgrade and Maintenance Manual RX2530 M6
