"Shutting down the server" on page 48.
▶
"Disconnecting the power cord" on page
49.
▶
"Getting access to the component" on page 52.
▶
Release all HDD/SSD modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD module" on page 143.
CAUTION
The HDD/SSD modules need not to be removed.
▶
If you want to remove them nevertheless, check if all HDD/SSD
modules are uniquely identified so that you can reinsert them
into their original bays.
▶
Release all dummy modules and pull them out a few centimeters, see
"Removing a 2.5-inch HDD/SSD dummy module" on page
140.
Removing the internal RAID riser module (option)

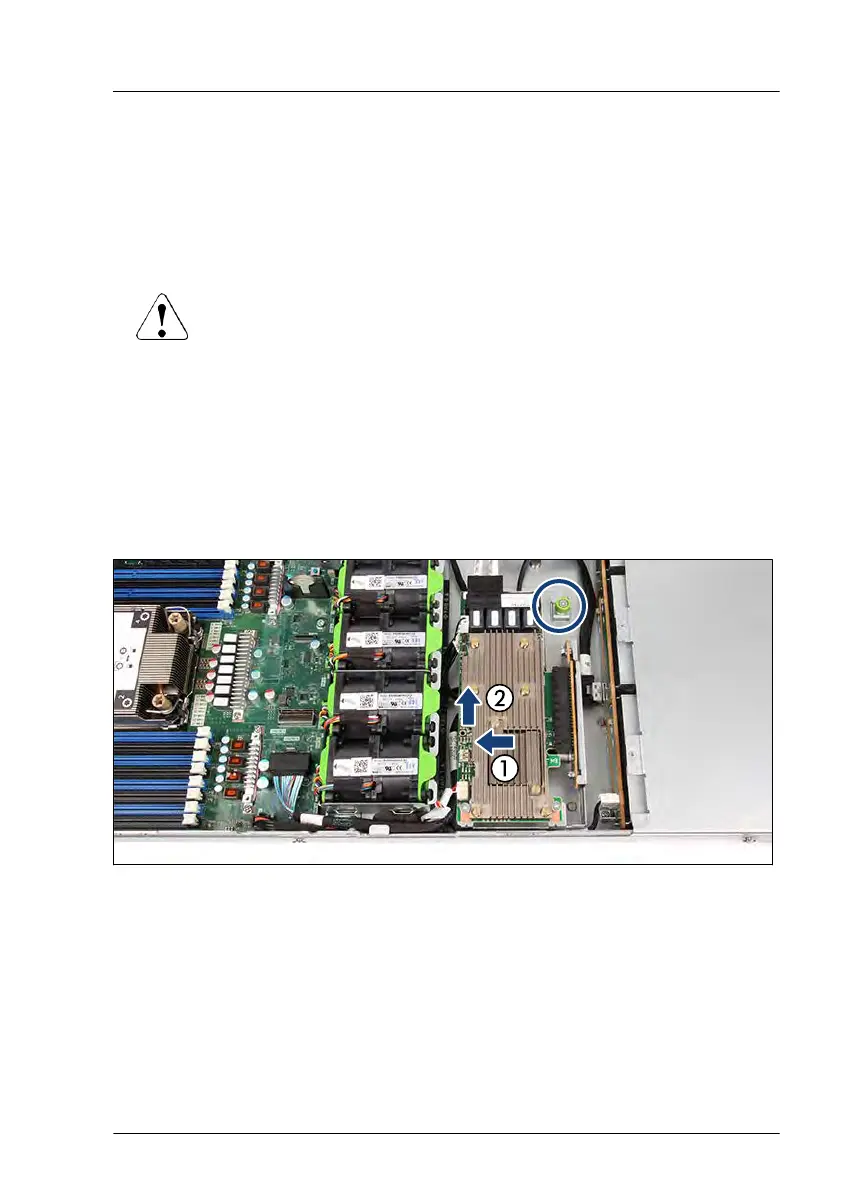

Figure 68: Removing the internal RAID riser module
▶
Loosen the knurled screw
.
▶
Push the internal RAID riser module in direction of the arrow to disengage
the holes and the bolts (1).
▶
T
ake out the internal RAID riser module upward (2).
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 153
