Removing the defective 8x 2.5-inch HDD backplane

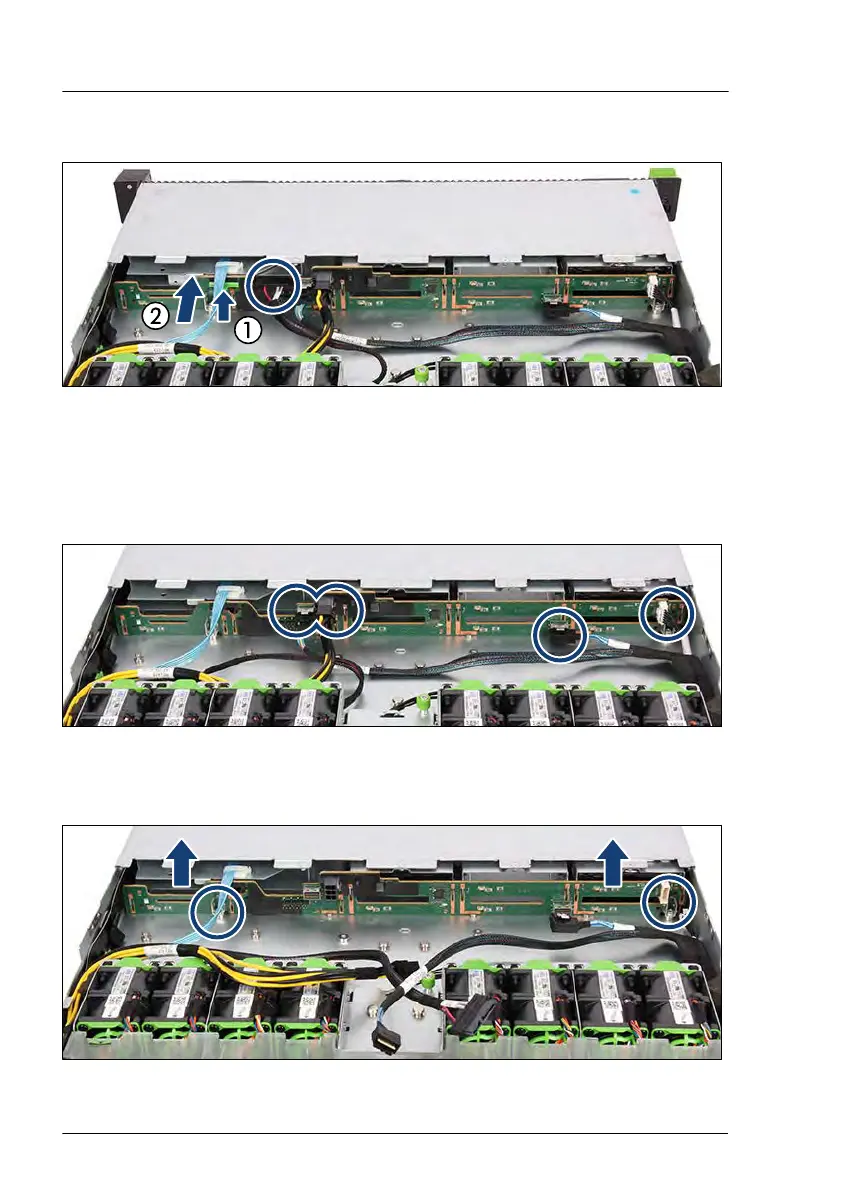

Figure 69: Releasing the ODD
▶
If applicable, disconnect the ODD cable (see circle).
▶
If applicable, pull the ODD latch upward (1) until it disengages and push the
ODD somewhat in direction of the front side (2).
Figure 70: Disconnecting the cables from the 8x 2.5-inch HDD backplane
▶
Disconnect all cables from the HDD backplane (see circles).
Figure 71: Removing the 8x 2.5-inch HDD backplane
Hard disk drive (HDD) / solid state disk (SSD)
154 Upgrade and Maintenance Manual RX2530 M6
