Release the two screws (see circles).
▶
Pull the HDD backplane upward until the 10 hooks disengage.
▶
T
ake out the HDD backplane.
Installing the new 8x 2.5-inch HDD backplane

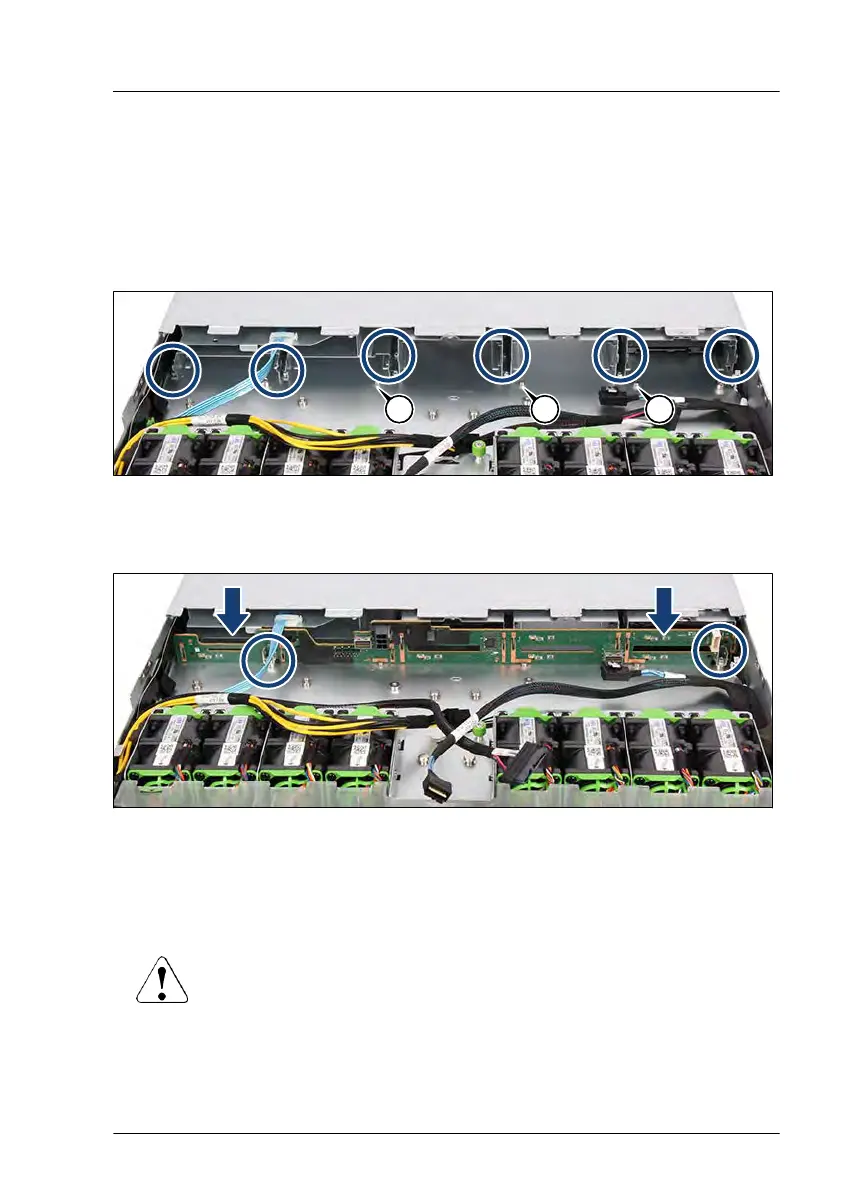

Figure 72: Hooks and guide pins
▶
Notice the hooks (see circles) and guide pins (A).
Figure 73: Installing the 8x 2.5-inch HDD backplane
▶
Position the HDD backplane on the 10 hooks.
▶
Push the HDD backplane downward. Make sure that the HDD backplane fits
behind the guide pins.
CAUTION
▶
Ensure that none of the cables are strained or damaged!
▶
Fasten the two screws (see circles).
