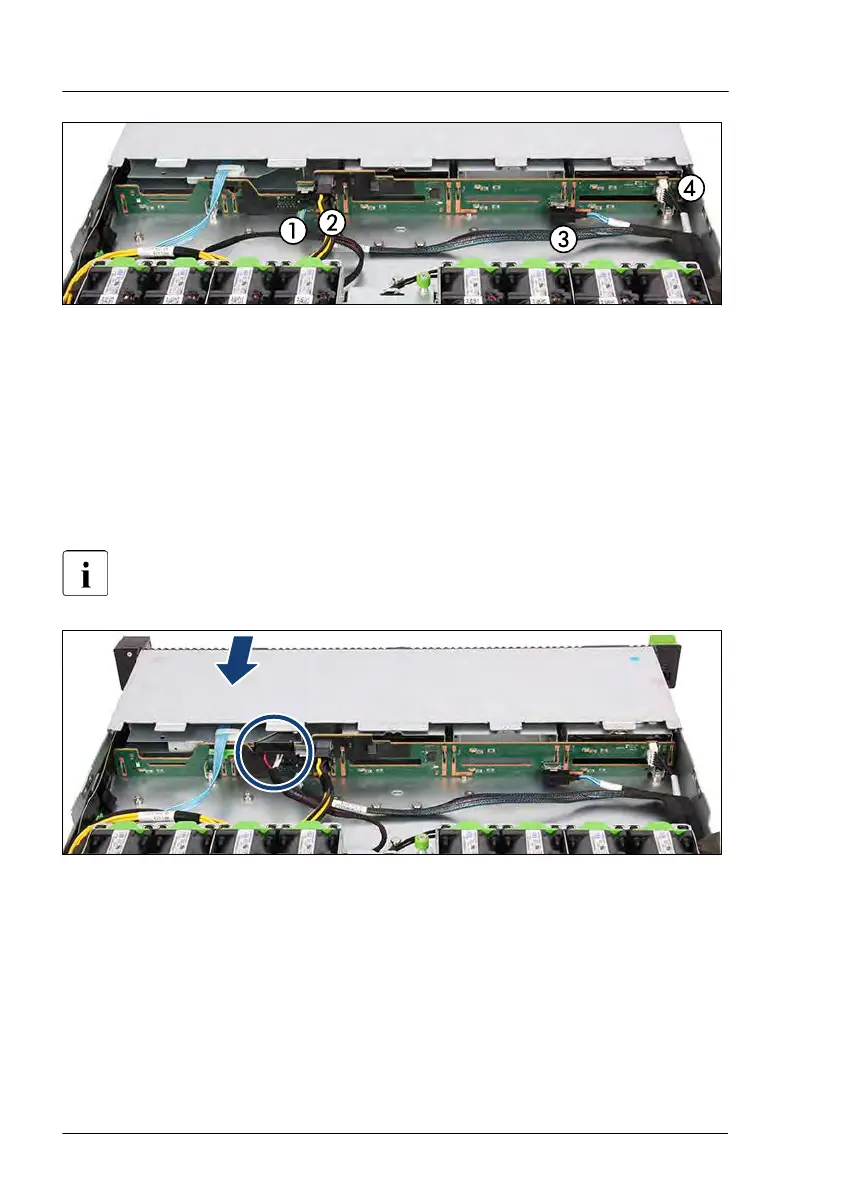

Figure 74: Connecting the cables to the 8x 2.5-inch HDD backplane
▶
Connect the following cables to the HDD backplane:
1 SAS/SATA cable, according to the length
2 Power cable
3 SAS/SATA cable, according to the length
4 OOB cable
For the cable plan, see "Appendix B" on page 427.
Figure 75: Installing the ODD
▶
If applicable, push the ODD into its bay until the ODD latch engages in the
HDD backplane.
▶
If applicable, connect the ODD cable to the ODD (see circle).
Hard disk drive (HDD) / solid state disk (SSD)
156 Upgrade and Maintenance Manual RX2530 M6
