Installing the internal RAID riser module (option)

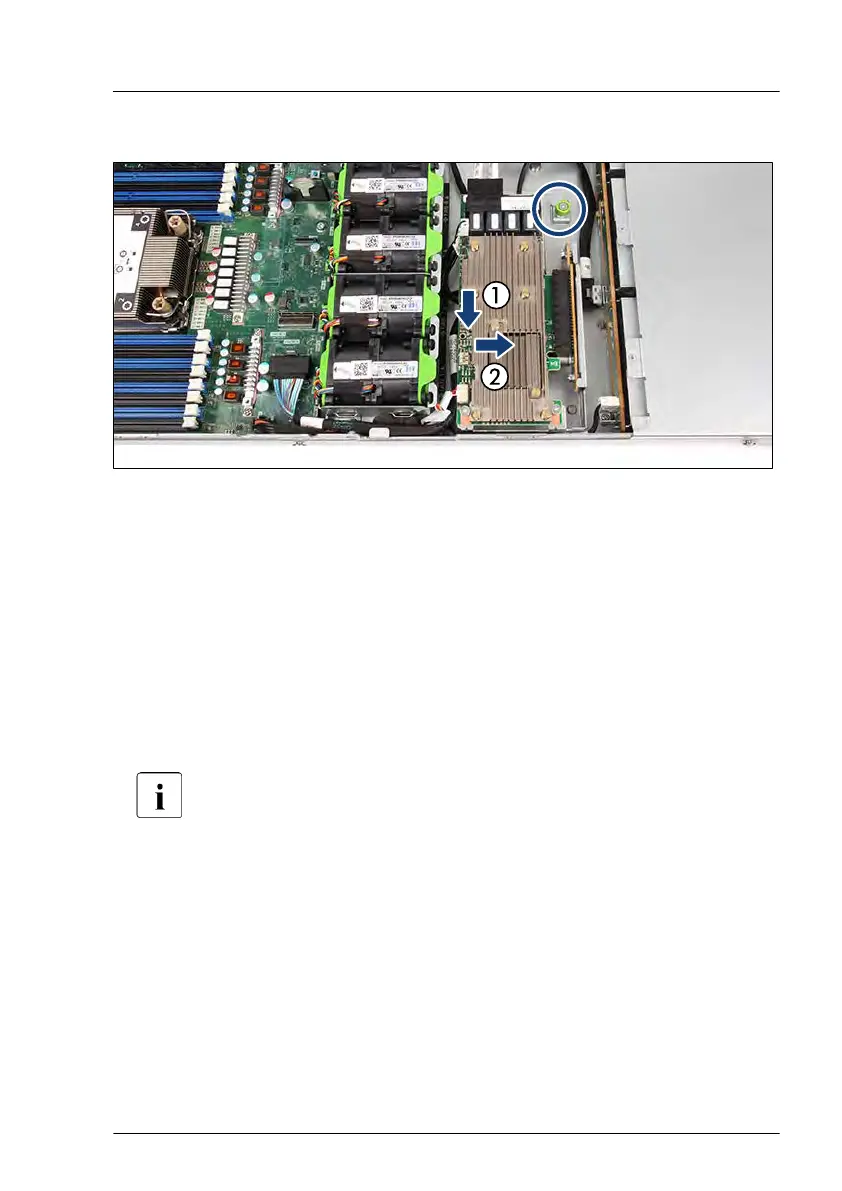

Figure 76: Installing the internal RAID riser module
▶
Place the Internal RAID riser module on the three bolts (1).
▶
Push the Internal RAID riser module to the front to engage the holes and the
bolts (2).
▶
Fasten the Internal RAID riser module with the knurled screw (see circle).
Concluding steps
▶
Insert all HDD/SSD modules, see "Installing a 2.5-inch HDD/SSD module"
on page
141.
Make sure that you reinstall the HDD/SSD module in the bay it was
located before the HDD backplane replacement.
▶
Insert all dummy modules, see "Installing a 2.5-inch dummy module" on
page 144.
▶
"Reassembling" on page
57.
▶
"Connecting the power cord" on page
62.
▶
"Switching on the server" on page 66.
▶
If applicable, "Installing the front cover with lock" on page 66.
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 157
