Removing the defective SAS expander board

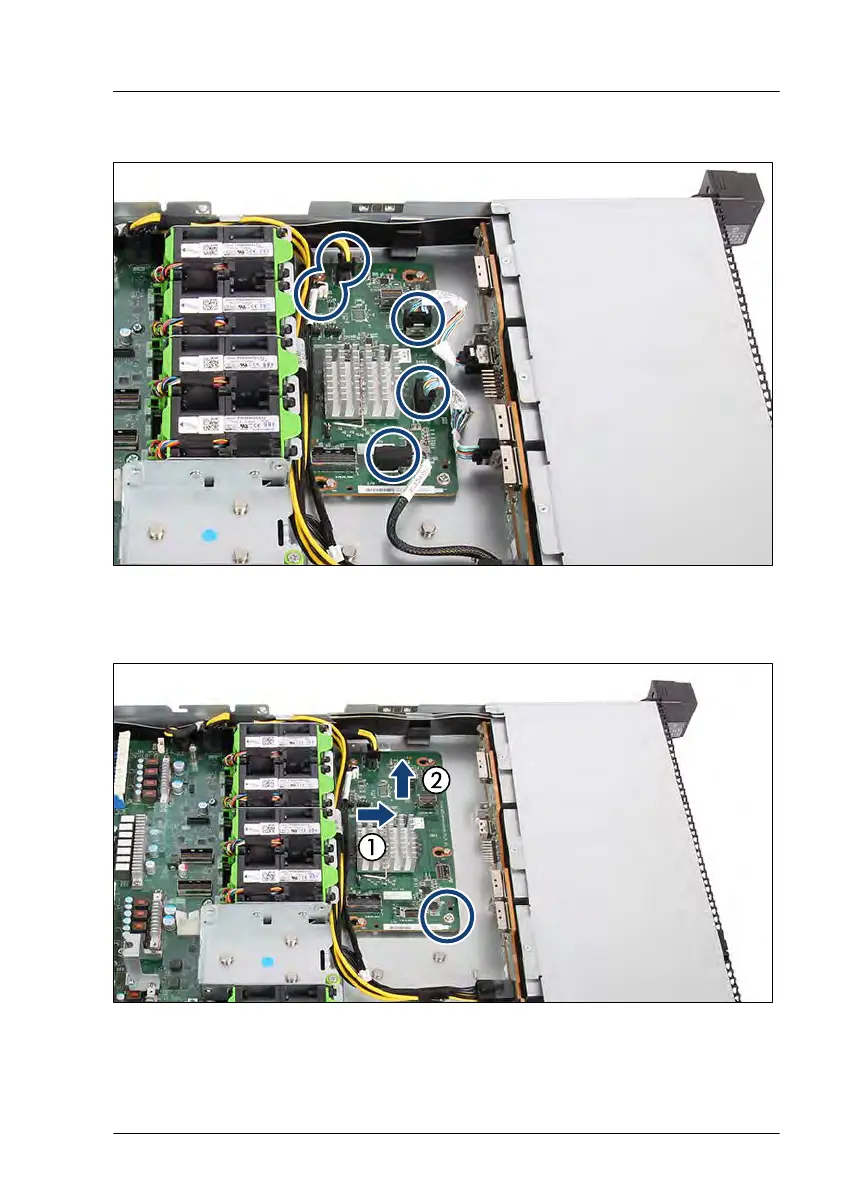

Figure 82: Disconnecting the cables from the SAS expander board
▶
Disconnect all cables from the SAS expander board (see circles).
Figure 83: Removing the SAS expander board
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 163
