Remove the screw (see circle).
▶
Push the SAS expander board to the front to disengage the holes and the
bolts (1).
▶
Take out the SAS expander board (2).
Installing the new SAS expander board

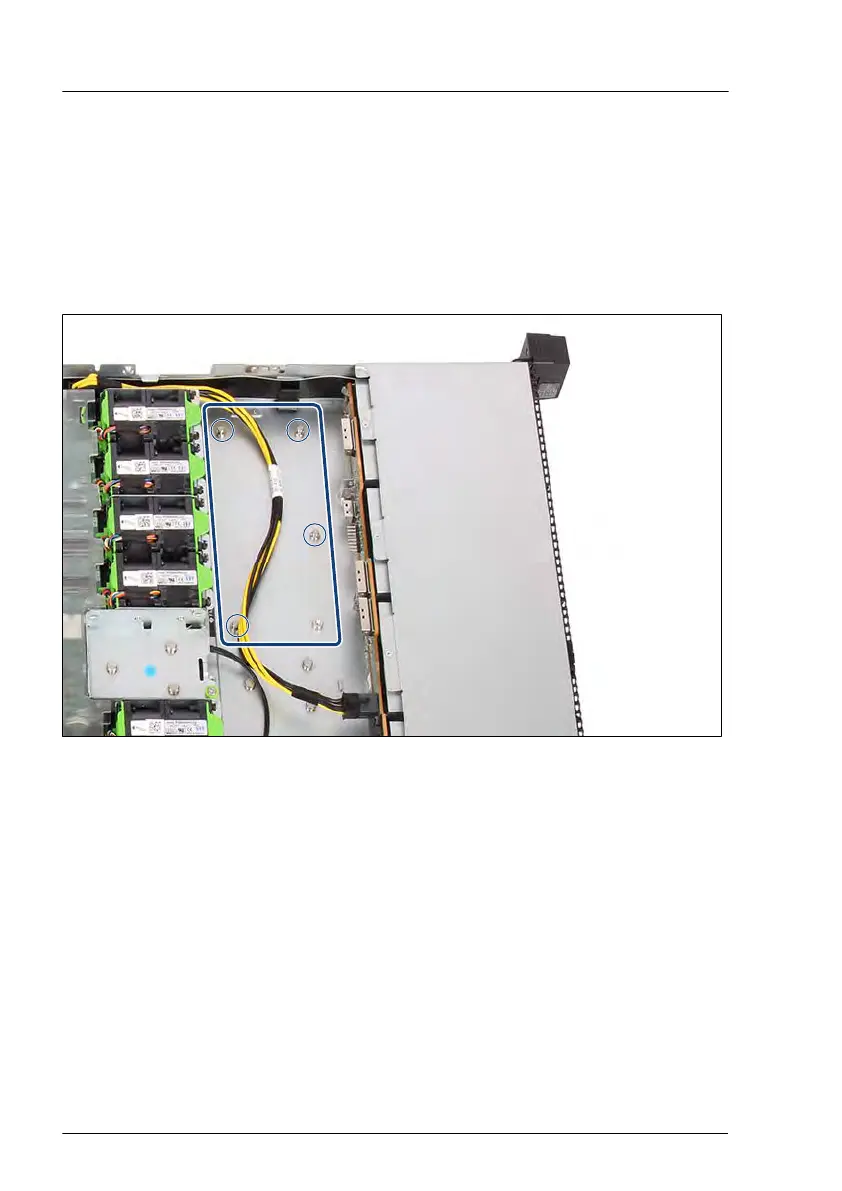

Figure 84: Position and bolts for SAS expander board
▶
Notice the bolts (see circles).
Hard disk drive (HDD) / solid state disk (SSD)
164 Upgrade and Maintenance Manual RX2530 M6
