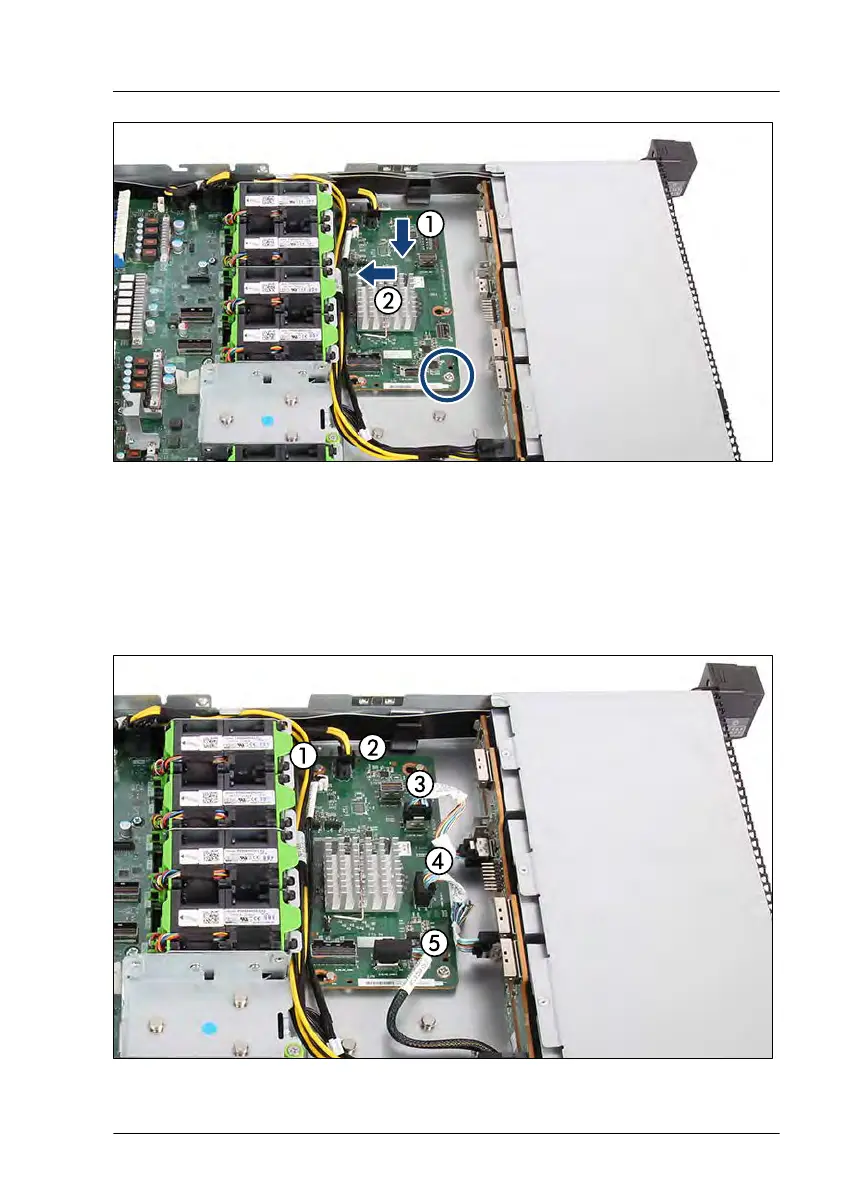

Figure 85: Installing the SAS expander board
▶
Place the SAS expander board on the four bolts (1).
▶
Push the SAS expander board to the rear to engage the holes and the bolts
(2).
▶
Fasten the screw (see circle).
Figure 86: Connecting the cables to the SAS expander board
Hard disk drive (HDD) / solid state disk (SSD)
RX2530 M6 Upgrade and Maintenance Manual 165
