"Connecting the power cord" on page 62.
▶
"Getting access to the component" on page
52.
▶
Remove the HDD/SSD modules from the rear HDD/SSD cage, see
"Removing a 2.5-inch HDD/SSD module" on page 143.
Removing the defective rear HDD/SSD backplane

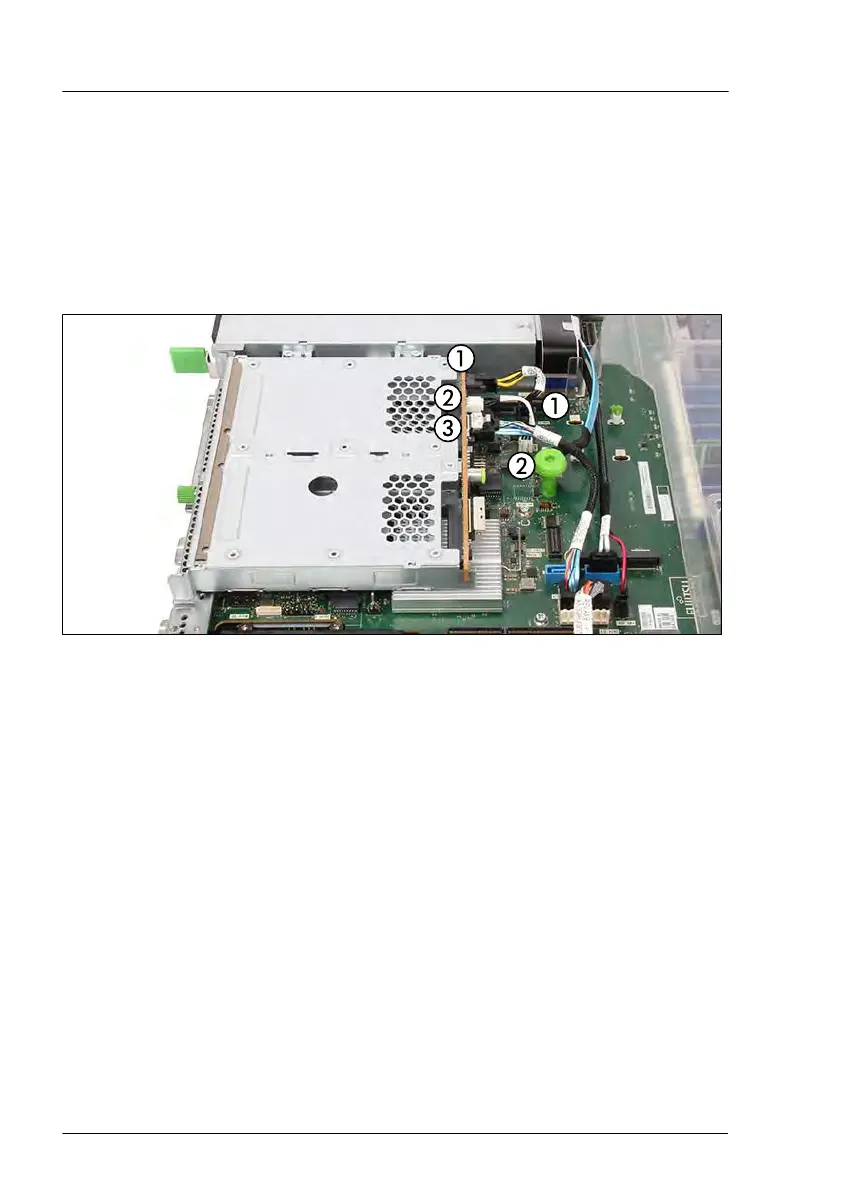

Figure 90: Disconnecting the cables from the rear HDD/SSD cage
▶
Remove the power cable (1), the OOB cable (2) and the SATA cable (3)
from the HDD backplane and the system board.
Hard disk drive (HDD) / solid state disk (SSD)
170 Upgrade and Maintenance Manual RX2530 M6
