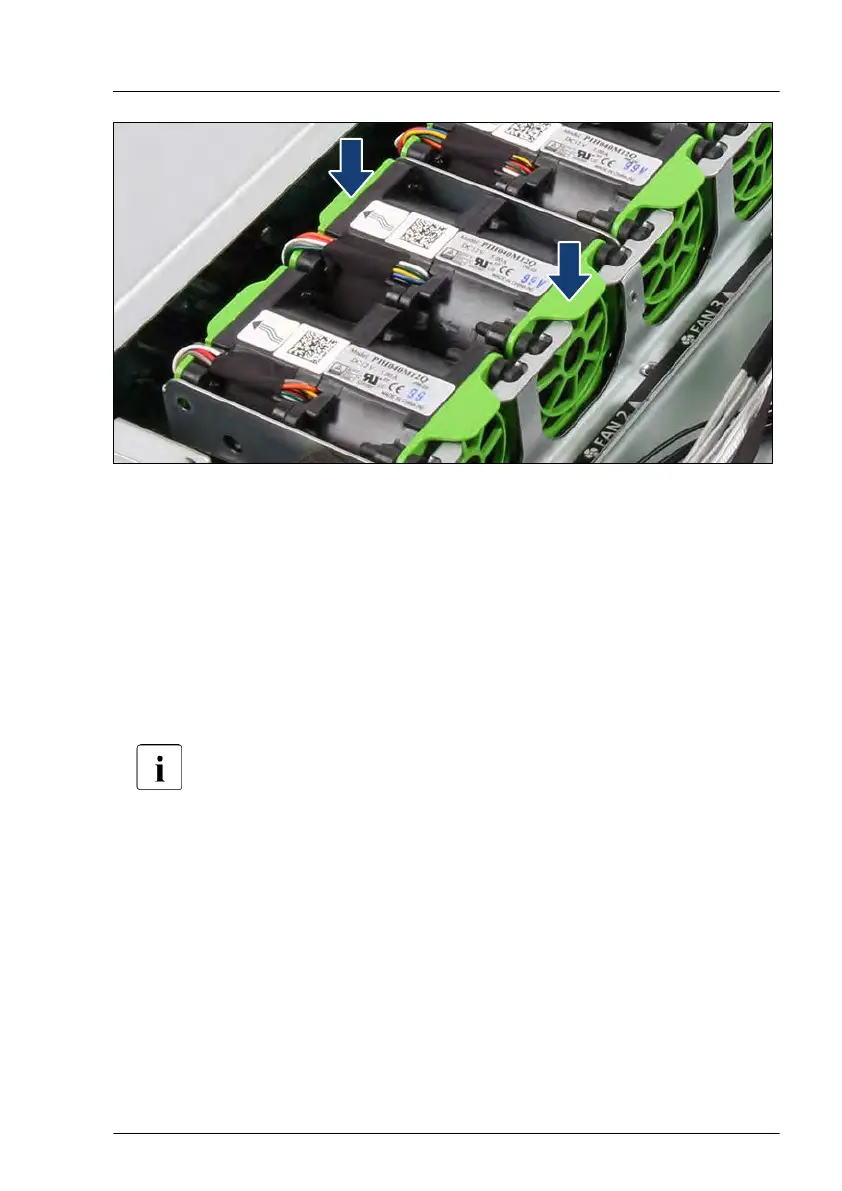

Figure 114: Installing the fan module (B)
▶
Press down the green touch points to ensure that the fan and the fan
connector are in right position.
Concluding steps
▶
"Reassembling" on page
57.
▶
If applicable, "Installing the front cover with lock" on page
66.
▶
"Performing a fan test" on page 103.
Performing a fan test is not needed if the system power was off and
DC stand-by power was available (AC power cord connected, but no
system power on) when replacing the fan module.
Fans
RX2530 M6 Upgrade and Maintenance Manual 193
