Preliminary steps
▶
If applicable, "Removing the front cover with lock" on page 48.
▶
"Shutting down the server" on page
48.
▶
"Disconnecting the power cord" on page 49.
Removing the OCP dummy cover

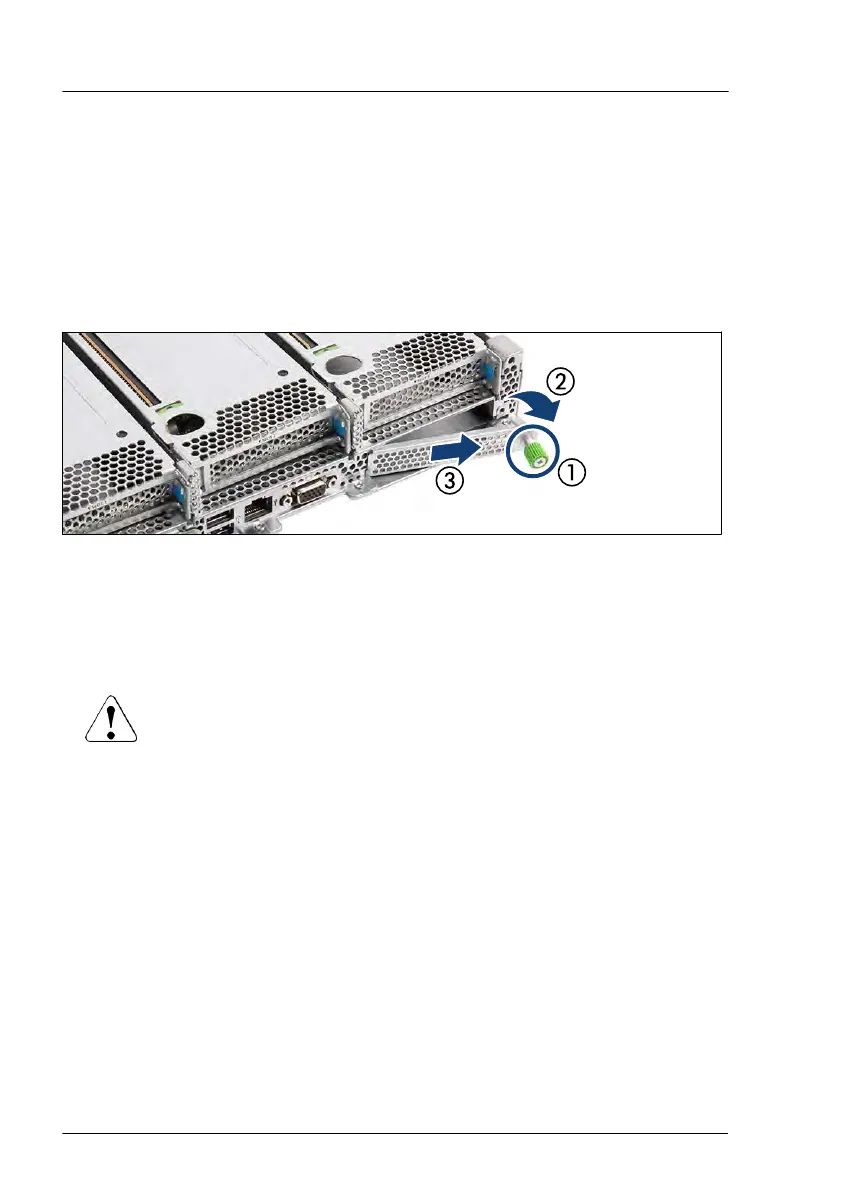

Figure 130: Removing the OCP dummy cover
▶
Loosen the knurled screw (1).
▶
Pull the dummy cover open to release the hook on the left side (2).
▶
Remove the dummy cover (3).
CAUTION
▶
Keep the dummy cover for future use.
▶
If you remove an OCP module and do not immediately replace it
with a new one, a dummy cover must be reinstalled in the bay to
comply with applicable EMC regulations and satisfy cooling
requirements.
Expansion cards and backup units
212 Upgrade and Maintenance Manual RX2530 M6
