Fujitsu PRIMERGY RX2530 M6

Installing the OCP module
A

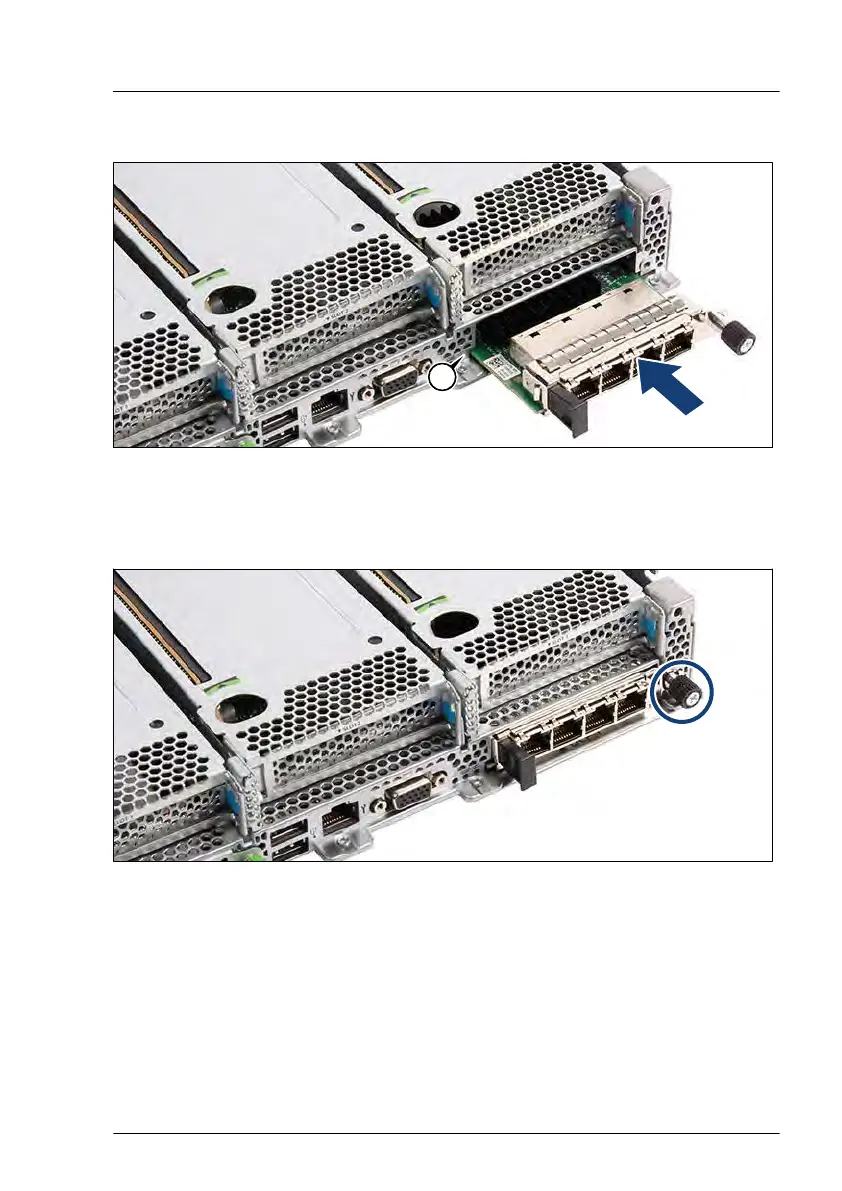

Figure 131: Installing the OCP module (A)
▶
Push the OCP module into the slot. Ensure that the left cant fits into the
reccess (A).
Figure 132: Installing the OCP module (B)
▶
Fasten the OCP module with the knurled screw (see circle).
Concluding steps
▶
"Connecting the power cord" on page
62.
▶
"Switching on the server" on page
66.
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 213
