Fujitsu PRIMERGY RX2530 M6

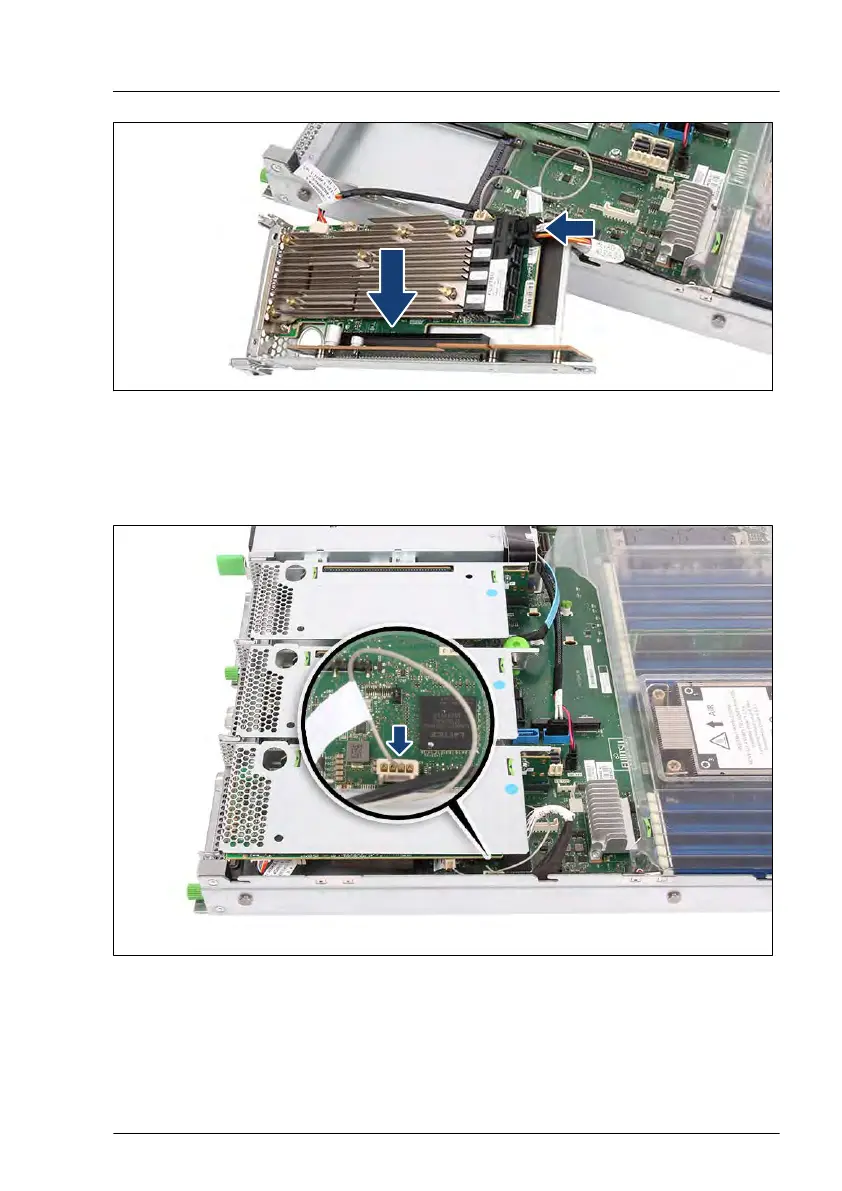

Figure 142: Example PRAID EP5xxi in riser module 1 (A)
▶
Install the PRAID EP5xxi in riser module 1.
▶
Connect the corresponding SAS cable to the PRAID EP5xxi.
Figure 143: Example PRAID EP5xxi in riser module 1 (B)
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 223
