Connect the HDD LED cable to connector "HDD LED" on the system board
(see close-up). There is no problem if the connector direction is different
from the figure.
▶
Install the riser module 1.
▶
If applicable, connect the FBU cable to the FBU.
▶
Connect the SAS cable to the corresponding HDD backplane.
For the cable plan, see "Appendix B" on page 427.
Example SAS CP5xxi

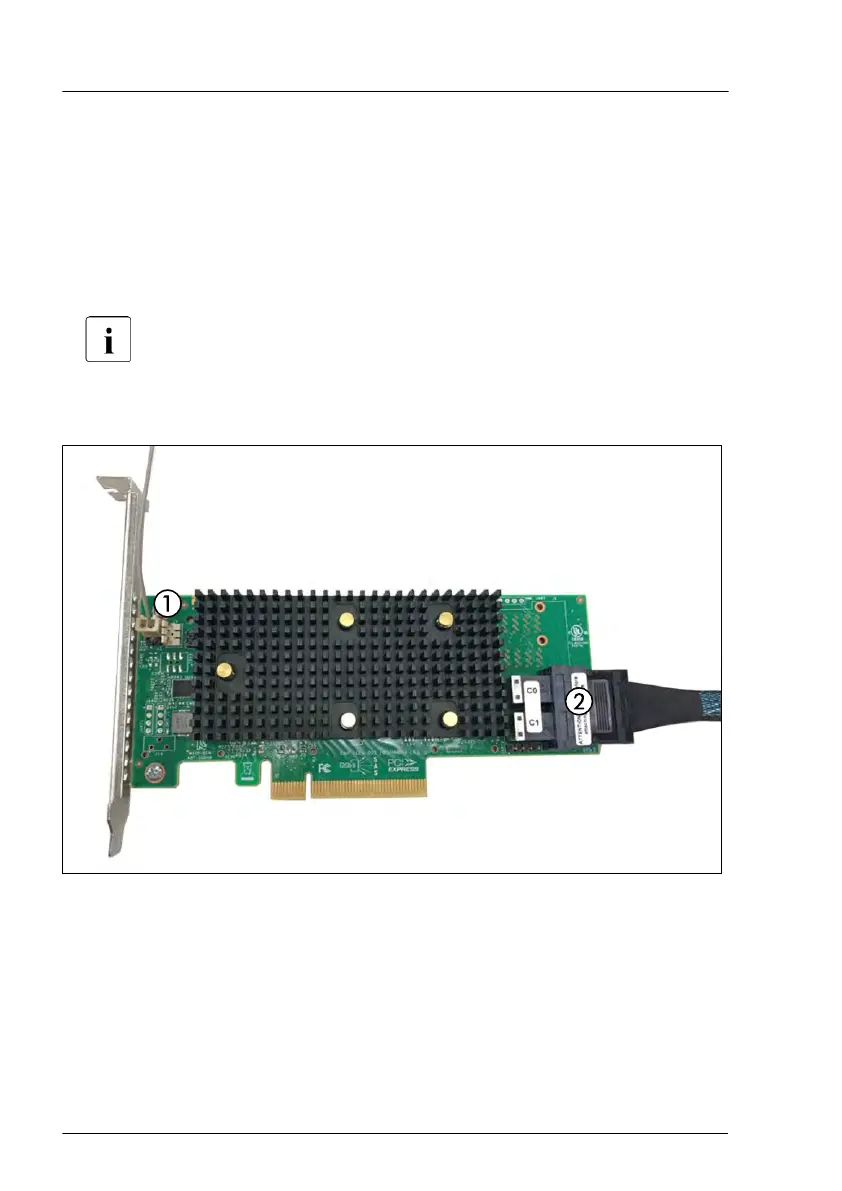

Figure 144: Connecting cables - SAS CP5xxi
▶
Connect the following cables:
Expansion cards and backup units
224 Upgrade and Maintenance Manual RX2530 M6
