1 If applicable, HDD LED cable
2 SAS cable
Example SAS CP2100-8i
CN 1
CN 0

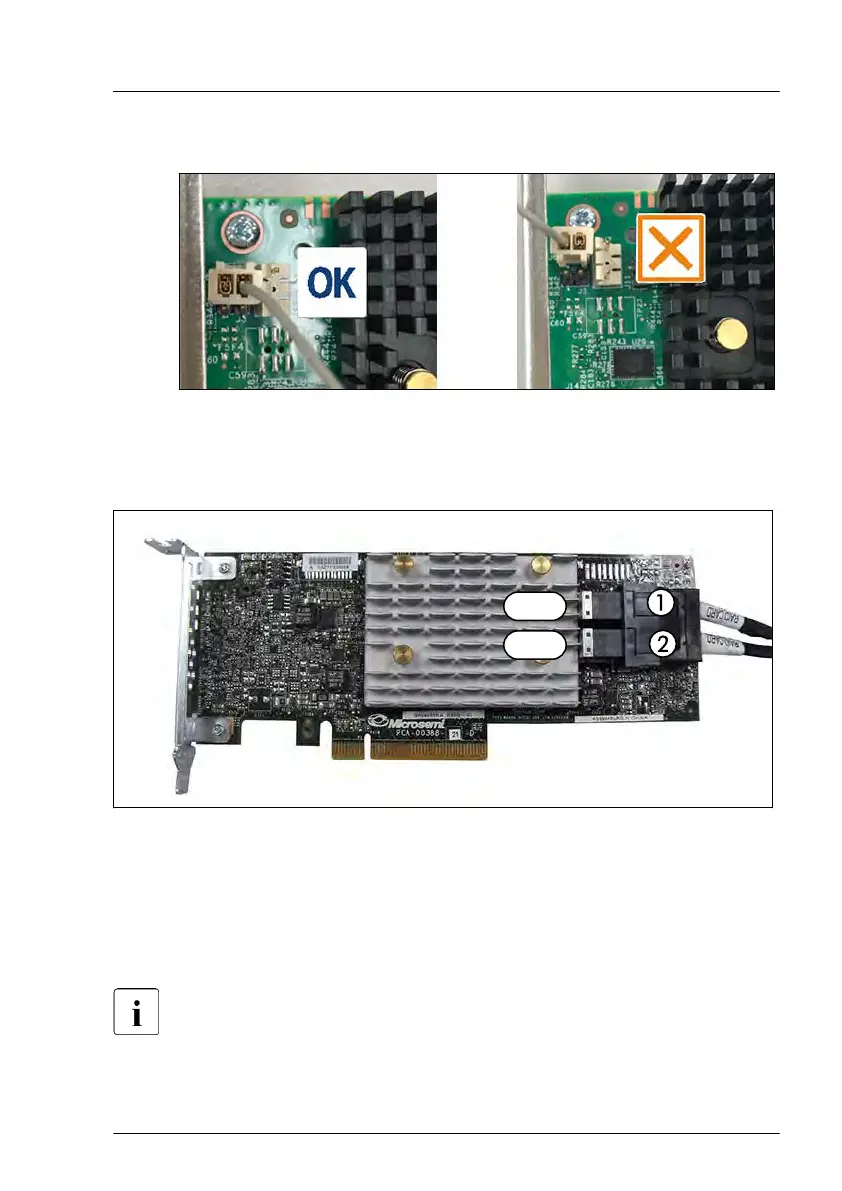

Figure 145: Connecting cables - SAS CP2100-8i
▶
Connect the following cables:
1 SAS cable to connector "CN1"
2 SAS cable to connector "CN0"
No HDD-LED cable is supported.
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 225
