Example PRAID EP540xxi

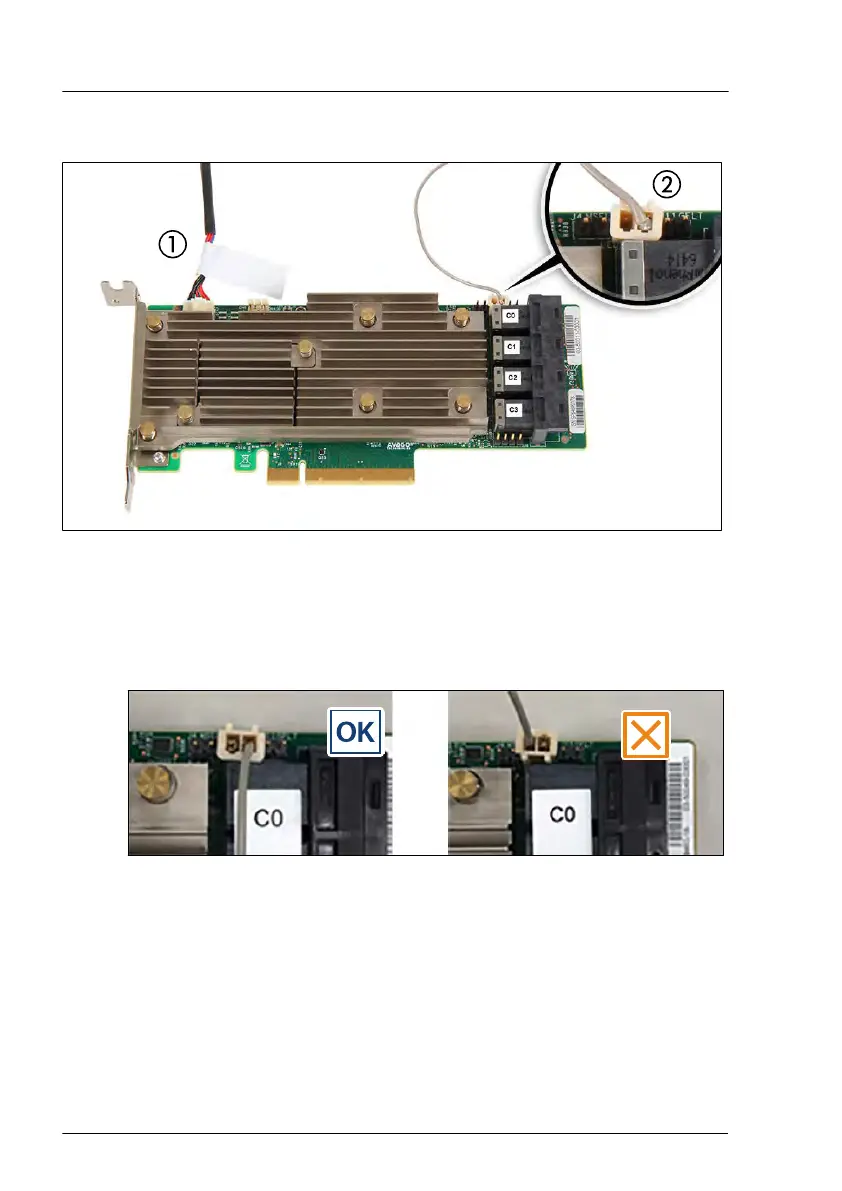

Figure 141: Connecting cables - PRAID EP5xxi
▶
Connect the following cables:
1
If applicable, FBU cable
2
If applicable, HDD LED cable
Expansion cards and backup units
222
Upgrade and Maintenance Manual
RX2530 M6
221
223
