Installing the expansion card
▶
Please read the documentation supplied with the expansion card.
▶
If applicable, install a slot bracket to the expansion card, see "Installing a
slot bracket" on page
199.

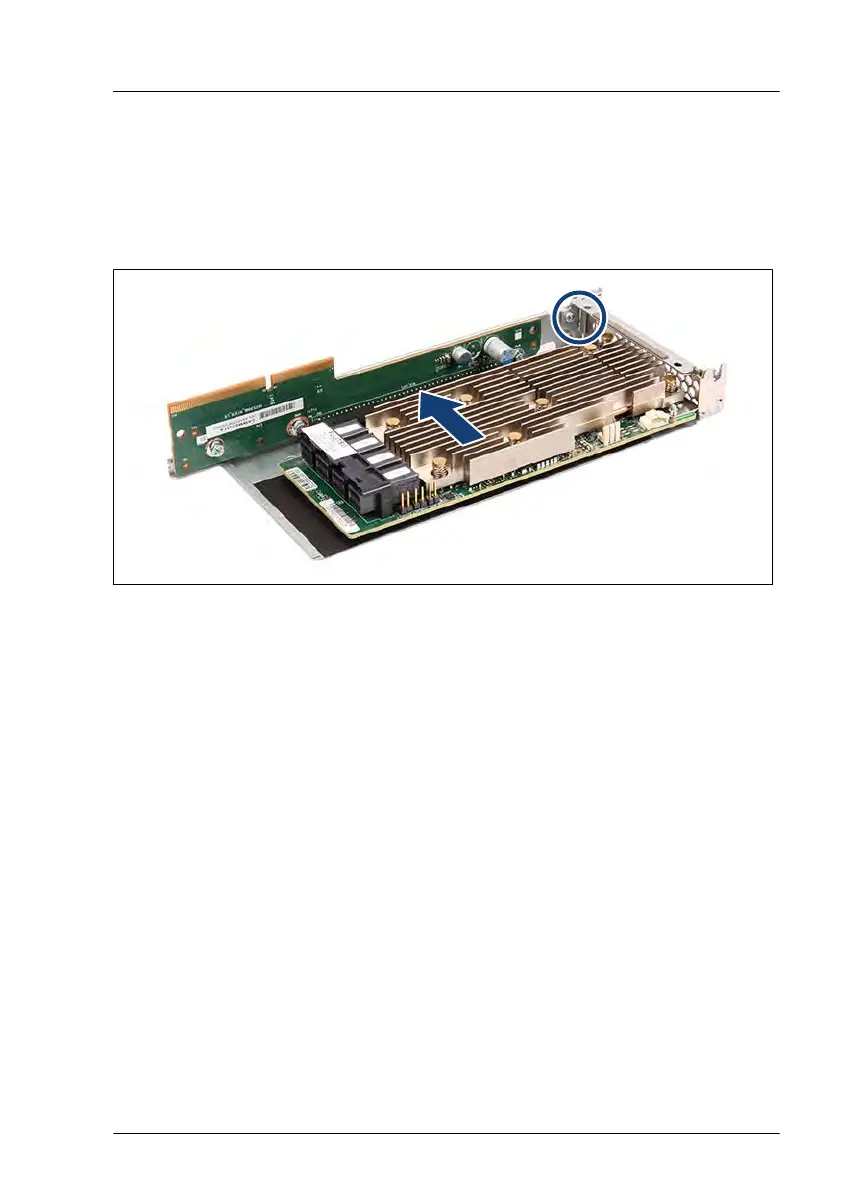

Figure 140: Installing an expansion card - example riser module 1
▶
Carefully press the expansion card into the riser card slot, until it clicks into
place. Make sure that the lug on the slot cover clicks into place in the
corresponding bracket (see circle).
The following figures show examples for installing expansion cards.
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 221
