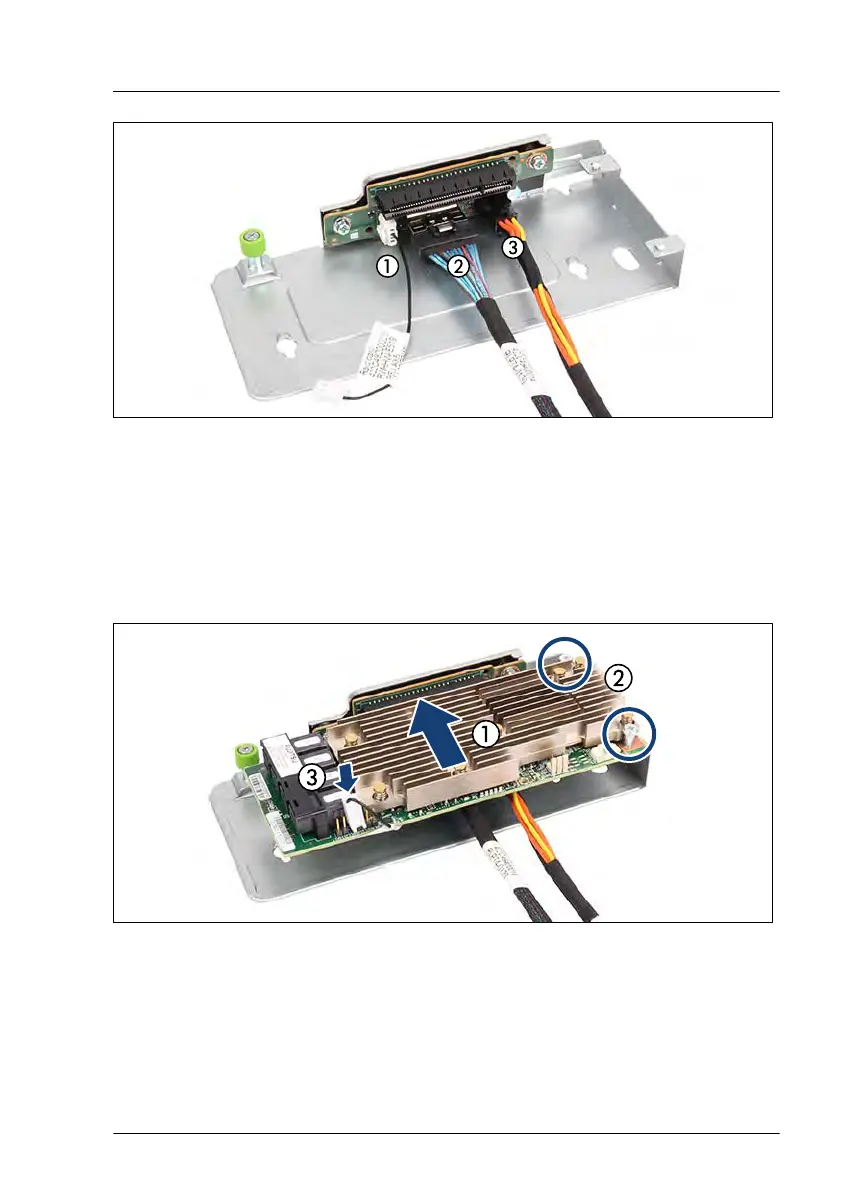

Figure 153: Connecting cables - example internal RAID riser module
▶
Connect the following cables:
1 HDD LED cable, option
2 SLIM SAS cable, depending on configuration
3 Power cable
Figure 154: Installing the internal RAID controller
▶
Carefully press the internal RAID controller into the riser card slot, until it
clicks into place (1).
▶
Fasten the internal RAID controller with two screws (2).
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 235
