Connect the HDD LED cable (3).

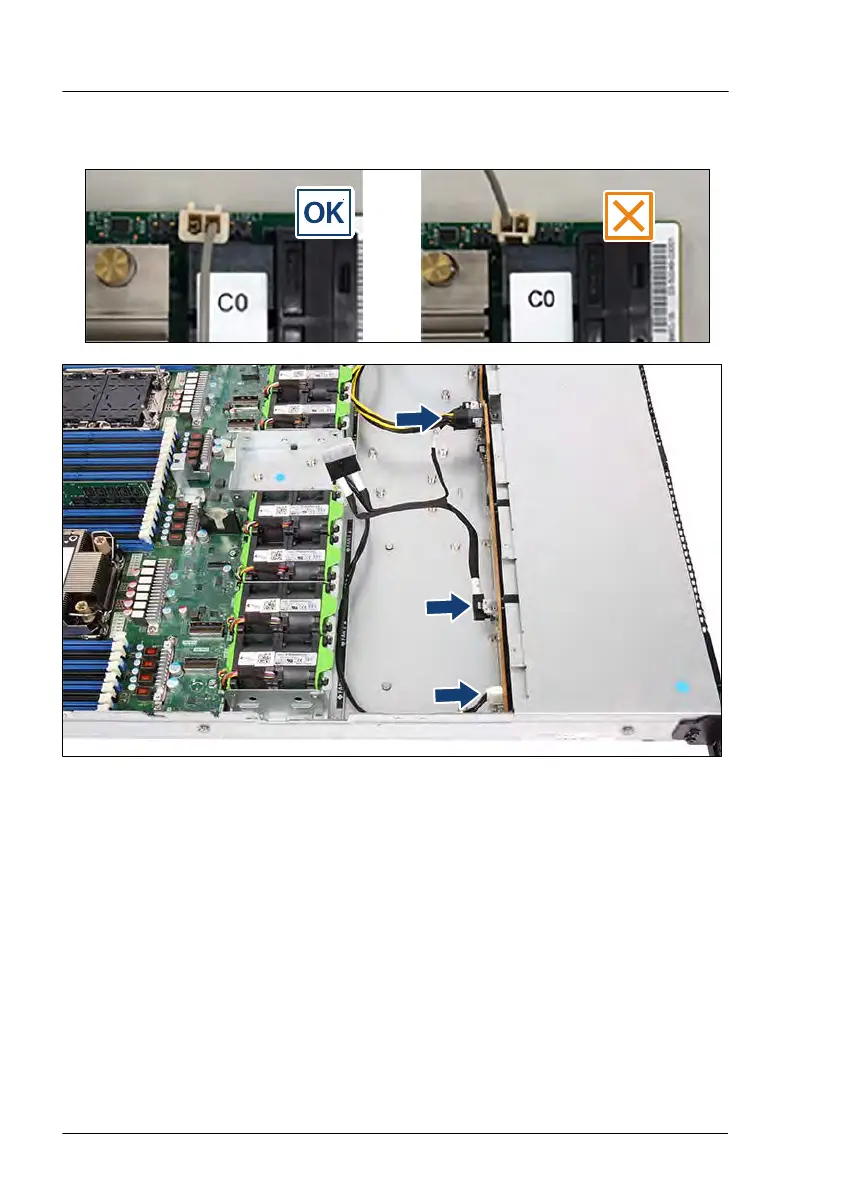

Figure 155: Connecting the SAS cable to the HDD backplane

▶

Connect the SAS cable to the HDD backplane.

Expansion cards and backup units

236 Upgrade and Maintenance Manual RX2530 M6
