Fujitsu PRIMERGY RX2530 M6

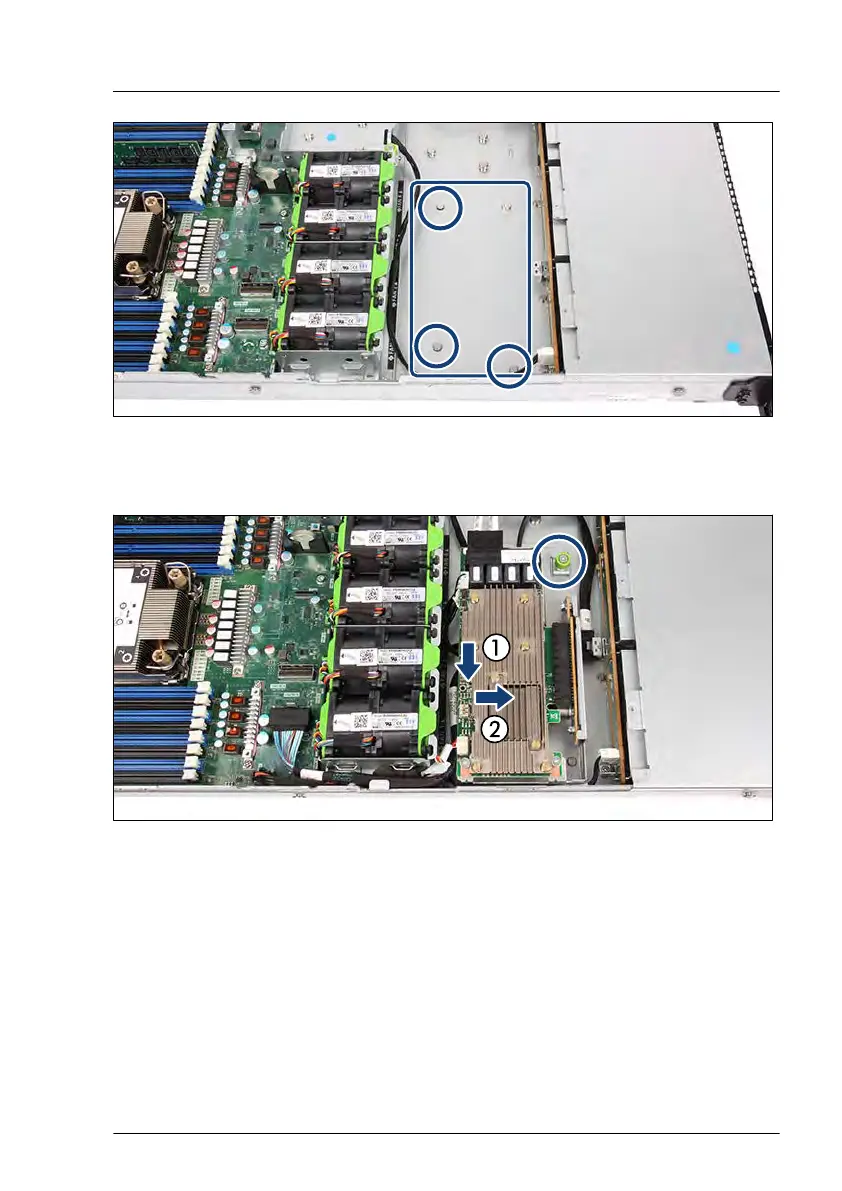

Figure 156: Position and bolts for internal RAID riser module
▶
Notice the bolts (see circles).
Figure 157: Installing the internal RAID riser module
▶
Place the Internal RAID riser module on the three bolts (1).
▶
Push the Internal RAID riser module to the front to engage the holes and the
bolts (2).
▶
Fasten the Internal RAID riser module with the knurled screw (see circle).
Expansion cards and backup units
RX2530 M6 Upgrade and Maintenance Manual 237
