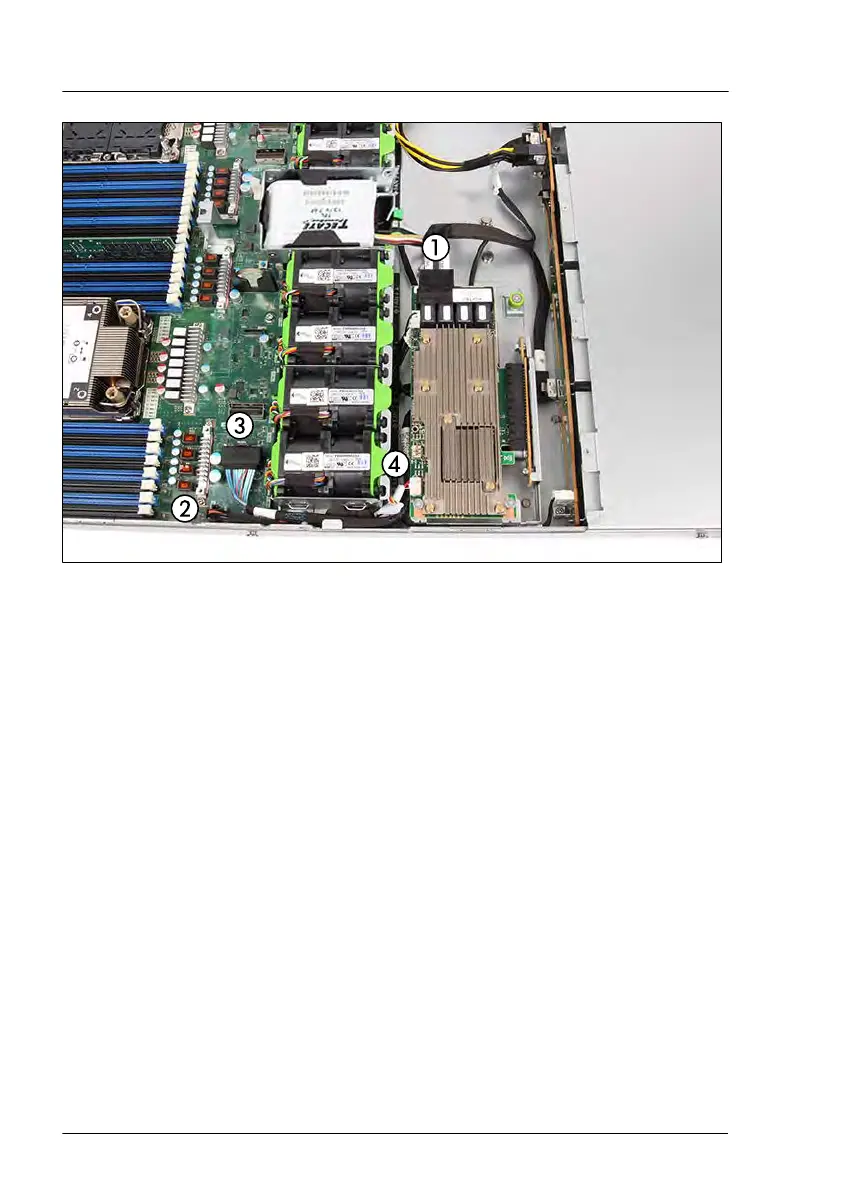

Figure 158: Connecting cables
▶
Connect the following cables:
1 SAS cable to connector "C0/C1" on the internal RAID controller
2 Power cable to connector "PWR 1" on the system board
3 Cable to connector "SLIMELINE 1" on the system board
4 If applicable, FBU cable
Expansion cards and backup units
238 Upgrade and Maintenance Manual RX2530 M6
